A is a pin while B is a rocker. Determine the reactions at A and B...

Question

Question

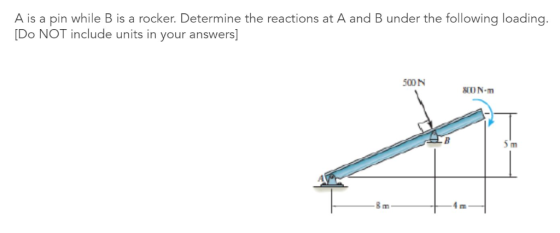

A is a pin while B is a rocker. Determine the reactions at A and B under the following loading [Do NOT include units in your

engineering Civil-Engineering

Answer 1

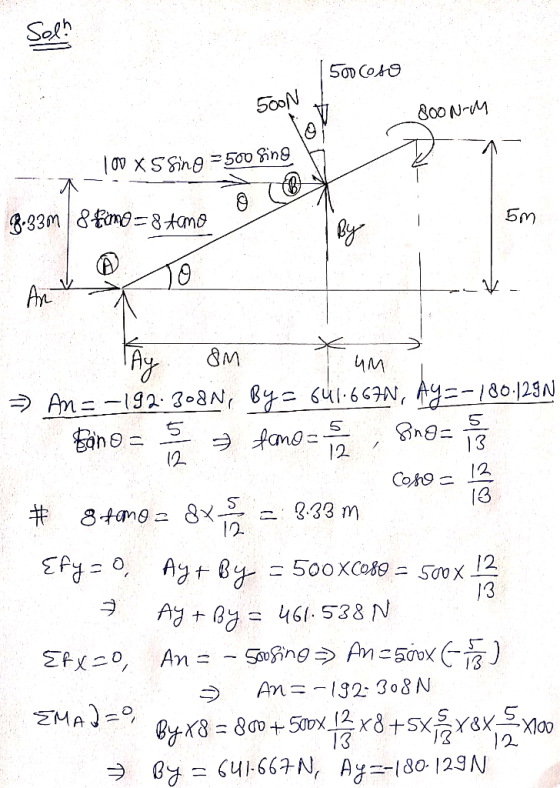

Answer #1

500V 800 NrM 5m 8M 12 3 /2 13

Answer 2
