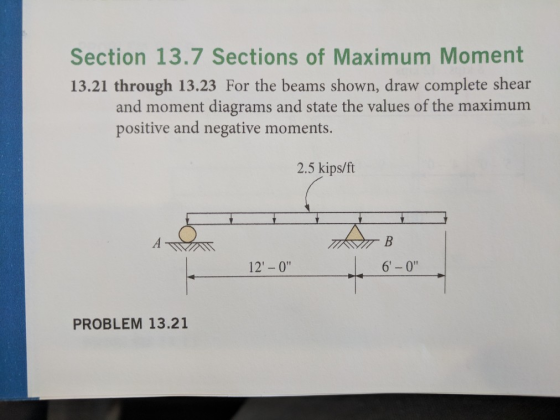

Section 13.7 Sections of Maximum Moment 13.21 through 13.23 For the beams shown, draw complete shear...
For the beams shown, draw complete shear and moment diagrams and state the values of the maximum positive and negative moments, per your assignment. Here, state what is the numerical absolute value of the maximum positive or negative moment in ft-kips? 10 kips 4 kips 0.5 kips/ft 5'-0 10'-0" 6'-0 8-0 O a) 24 Ob) 10 O c) 14 O d) 18
Problems 1.-5. Draw complete shear and moment diagrams resulting from the loads indicated for the beams shown. Show ordinates at key points and indicate the magnitude of shear and moment at these points. Calculate the maximum bending stress due to the applied loads. Beam sections are 1) L6x6x1, 2) C10x30, 3) W21x73, 4) W18x50 bent about its weak axis, 5) 8 in. extra strong pipe. Ignore the beam weight. 400 lb/ft 15 kips 15 kips (2) 13'-0" 5'-0" 6'-0" |...
Draw the shear and bending-moment diagrams for the beams and
loadings shown (indicate position and magnitude of the maximum and
minimum shear and bending moment values in the diagrams):
P-2400 lb-(000 -400 bt 91- RB 24 ft
Problem 4: For the fixed-fixed beam shown below, a) Sketch the shear force and bending moment diagrams. Consider P1 = 10 kips, P2 = 15 kips, and w = 2 kips/ft. b) Indicate the values of maximum positive and negative bending moments and specify the location of these maximum values along the beam. (You are allowed to refer to the attached AISC Table for appropriate formulations or use any software) P2 TTTTTTTTTTTTTTT 6 ft. 1 0ft. t 4 ft.
6. For the beams and loading shown draw the shear and bending-moment diagrams and then find the maximum absolute values of the shear and bending moment. 2500 lb 60 KN 25 kN/m 500 lb /ft A c Di 5-3 ft--3--3-1-3ft Ć D -3 ft 3 ft — —3 ft 3 ft — Tam-kata2 122 m- 1 m
(40) 2- Draw the shear and moment diagrams of the beams shown below. 3 k/ft Internat Hinge 48 ft kips 12 kips 20,1 C B 6 6 6 12k 8 k 2 k/ft 3@4 m
2.5 kips/ft 15 kips PROBLEM 5.10 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum absolute value (a of the shear (b) of the bending moment. ft 3ft 6ft
For the beams shown in Eigure 3,.5, draw the shear diagrams and note all critical values for shear. Note particularly the maximum value for shear and the point at which the shear passes through zero. O kips 5 |[0.6 m]↓ [0.9 m] I [1.5m] 500 Ib/ft 200 Ib/ft [2.92 kN/m] (7.3 kN/m] 2
2. For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment. 3 kips 20 ft 5 ft Ay Shear hrs ) Homework Spring 2018 Page 2
Determine the reactions and draw the shear and bending moment diagrams for the beams shown in Figs. P16.1-P16.5 by using the moment-distribution method. 2 k/ft 36 f24 ft El- constant E -29,000 ksi 1-1,530 in.4
