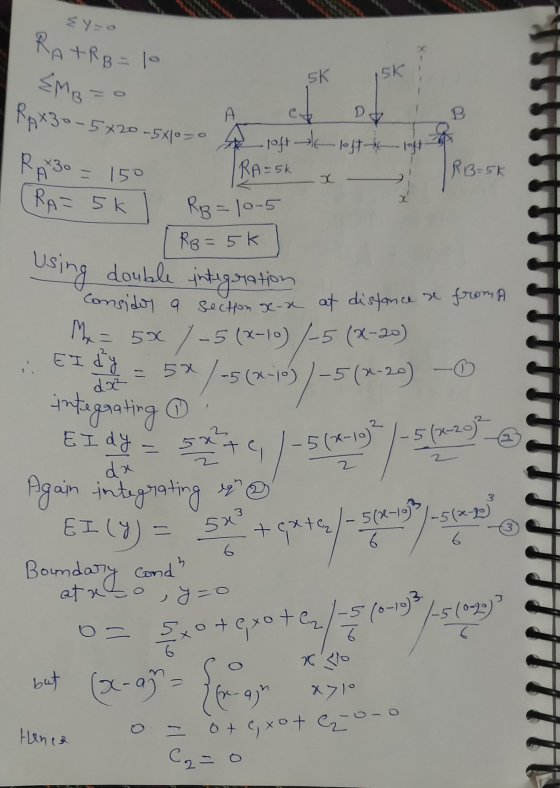

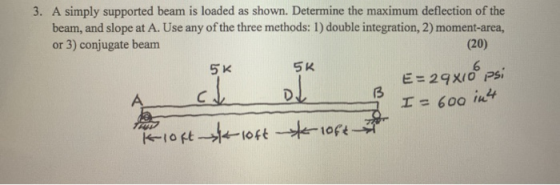

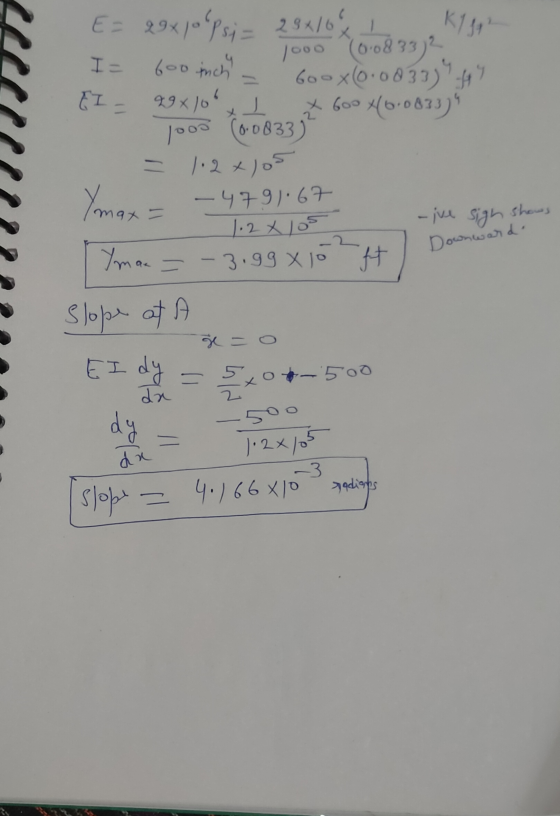

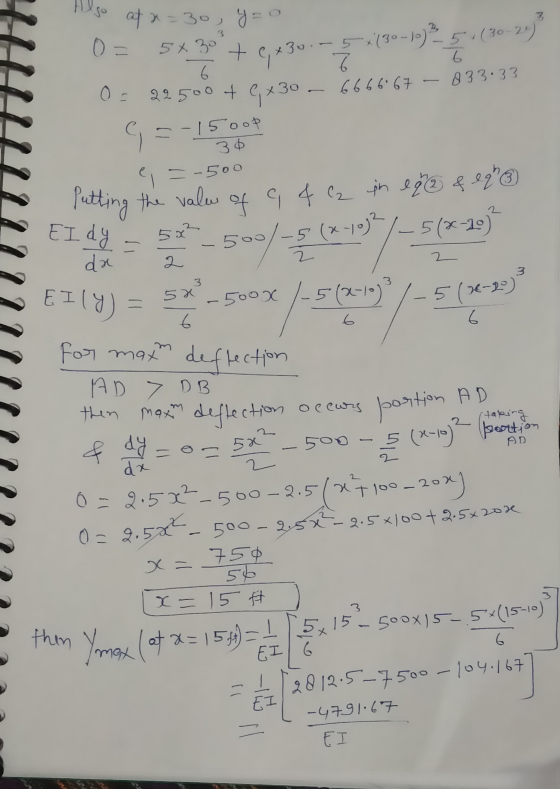

3. A simply supported beam is loaded as shown. Determine the maximum deflection of the beam,...
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum...
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection for the data given. Draw loading, shear, moment, slope, and deflection diagrams. Page 2 of 3 Givens: 0.70 m a 0.10 m b 0.60 m w 80 N/m F 500 N 2.1 x 10- m c 6.5 x 10-3m E=207 GPa
7) A beam is supported and loaded as shown below. Find the reactions, maximum...
Using Conjugate Beam Method, Determine the Deflection and slope at mid-span of a simply supported beam,...
Using Conjugate Beam Method,
Determine the Deflection and slope at mid-span of a simply
supported beam, as shown in figure
Using Conjugate Beam Method, Determine the Deflection and slope at mid 40 kN 60 kN
A simply supported beam with a length of 21 feet with loading is shown below. The...
A simply supported beam with a length of 21 feet with loading is shown below. The uniform load has a magnitude of 420 pounds per foot (plf). The point loads each have a magnitude of 6 kips. The point loads are located at 1/3 points of the beam (i.e. 7 feet from each end of the beam). Determine: a. Location and magnitude of maximum moment b. Maximum shear c. Location and magnitude of maximum deflection. E = 1.8 x106 psi....
3.) Determine the maximum deflection and the maximum slope for beam shown below using either the...
3.) Determine the maximum deflection and the maximum slope for beam shown below using either the moment area method or the conjugate beam method. (25P) 120 kN A AE ー10m ㅡㅡ 5 m EI constant E -200 GPa 1 = 700(106) mnm4
A beam ABC is loaded as shown in the fique and is supported by a pin...
A beam ABC is loaded as shown in the fique and is supported by a pin at A and roller at B. The overnarding part of the beam is BC. find: a) egin of deflection curve between A and, B. and between B and C using and order integration method b) from part a, determine the value of deflection and slope at the roller. 'Hint (express in terms of E, I, Woor] c) construct a shear force and bending moment...
PLEASE PROVIDE THE SLOPE AND DEFELCTION DIAGRAM!!!!!!!!!!!!!! 7) A beam is supported and loaded as shown...
PLEASE PROVIDE THE SLOPE AND DEFELCTION
DIAGRAM!!!!!!!!!!!!!!
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection for the data given. Draw loading, shear, moment, slope, and deflection diagrams. -8 4 Givens: 1 0.70 m, a = 0.10 m, b 0.60 m, w 80 N/m, F = 500 N,1 = 2.1x10m c 6.5x10 m, E = 207 GPa / R3 R1 R2
7) A beam...
For the simply supported beam loaded as shown below, please draw the diagram to represent the...
For the simply supported beam loaded as shown below, please draw
the diagram to represent the moment as a function of the position
along the length of beam, P=20 KN.
ATT 7 , 3 2.
Consider the simply supported beam and loaded as shown in the M figure. Perform the following:...
Consider the simply supported beam and loaded as shown in the M figure. Perform the following: 1. Determine the support reactions. 2. Plot SFD and BMD 3. if L=9 m, the beam will fail when the maximum shear force is Vmax= 5 kN or the maximum bending moment is Mmax=22 kN.m. Determine the largest couple moment Mo the beam will support.
10. The slope and deflection at a section in a loaded beam can be found out...
10. The slope and deflection at a section in a loaded beam can be found out by which of the following methods? (a) Double integration method (b) Moment area method (c) Macaulay's method (d) Any of the above. 15. A cartilever AB of length 1 is carrying a distributed load whose intensity varies uniformly from zero at the free end to w per un run at the forced end. The deflection at the free end is given as: (3) 30E1...
3. Calculate maximum deflection for a simply supported beam given below. E = 30,000,000 psi, I...
3. Calculate maximum deflection for a simply supported beam given below. E = 30,000,000 psi, I = 750 in' spolo А B aft Rg 8in Problem - 3: 1. Refer to example 1 in “Deflection of Beams” material. 2. Use the appropriate case from the formula list.
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection for the data given. Draw loading, shear, moment, slope, and deflection diagrams. Page 2 of 3 Givens: 0.70 m a 0.10 m b 0.60 m w 80 N/m F 500 N 2.1 x 10- m c 6.5 x 10-3m E=207 GPa
7) A beam is supported and loaded as shown below. Find the reactions, maximum...
Using Conjugate Beam Method,
Determine the Deflection and slope at mid-span of a simply
supported beam, as shown in figure
Using Conjugate Beam Method, Determine the Deflection and slope at mid 40 kN 60 kN
3.) Determine the maximum deflection and the maximum slope for beam shown below using either the moment area method or the conjugate beam method. (25P) 120 kN A AE ー10m ㅡㅡ 5 m EI constant E -200 GPa 1 = 700(106) mnm4
A beam ABC is loaded as shown in the fique and is supported by a pin at A and roller at B. The overnarding part of the beam is BC. find: a) egin of deflection curve between A and, B. and between B and C using and order integration method b) from part a, determine the value of deflection and slope at the roller. 'Hint (express in terms of E, I, Woor] c) construct a shear force and bending moment...
PLEASE PROVIDE THE SLOPE AND DEFELCTION
DIAGRAM!!!!!!!!!!!!!!
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection for the data given. Draw loading, shear, moment, slope, and deflection diagrams. -8 4 Givens: 1 0.70 m, a = 0.10 m, b 0.60 m, w 80 N/m, F = 500 N,1 = 2.1x10m c 6.5x10 m, E = 207 GPa / R3 R1 R2
7) A beam...
For the simply supported beam loaded as shown below, please draw
the diagram to represent the moment as a function of the position
along the length of beam, P=20 KN.
ATT 7 , 3 2.
Consider the simply supported beam and loaded as shown in the M figure. Perform the following: 1. Determine the support reactions. 2. Plot SFD and BMD 3. if L=9 m, the beam will fail when the maximum shear force is Vmax= 5 kN or the maximum bending moment is Mmax=22 kN.m. Determine the largest couple moment Mo the beam will support.
10. The slope and deflection at a section in a loaded beam can be found out by which of the following methods? (a) Double integration method (b) Moment area method (c) Macaulay's method (d) Any of the above. 15. A cartilever AB of length 1 is carrying a distributed load whose intensity varies uniformly from zero at the free end to w per un run at the forced end. The deflection at the free end is given as: (3) 30E1...
3. Calculate maximum deflection for a simply supported beam given below. E = 30,000,000 psi, I = 750 in' spolo А B aft Rg 8in Problem - 3: 1. Refer to example 1 in “Deflection of Beams” material. 2. Use the appropriate case from the formula list.
