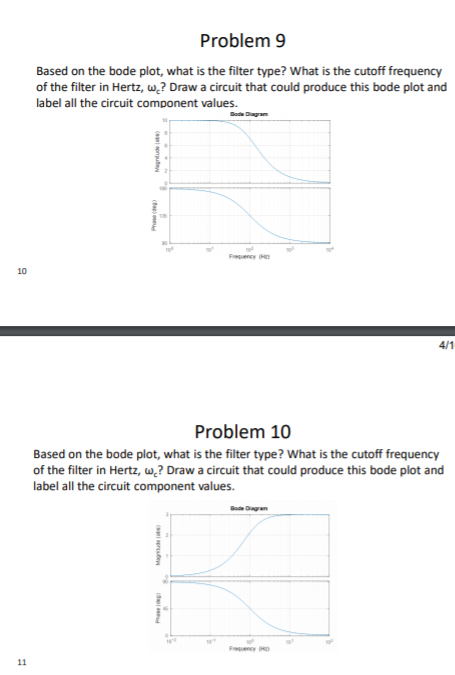

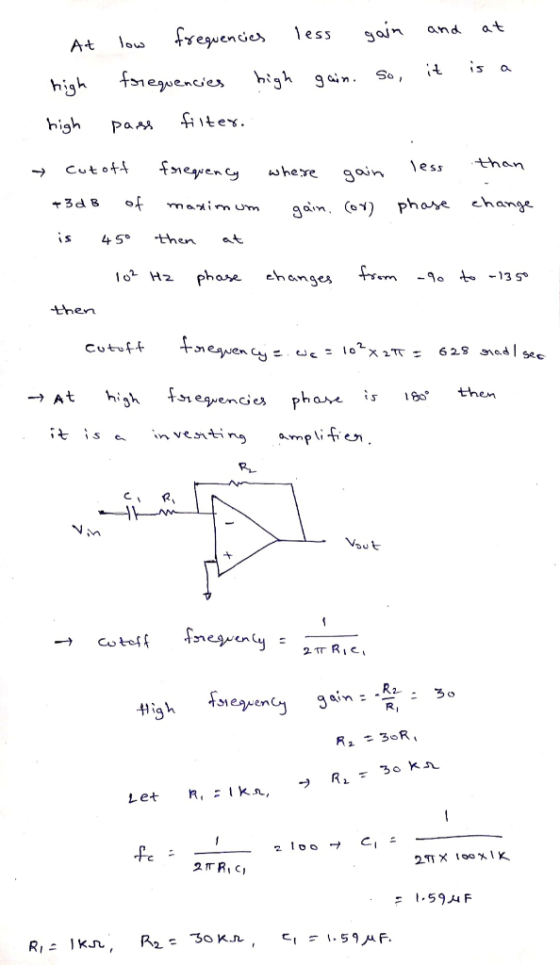

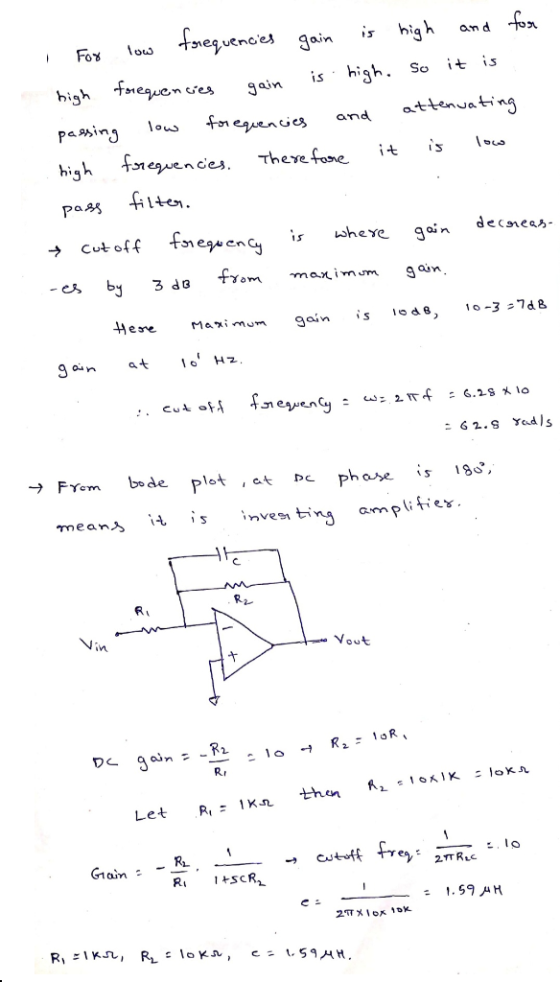

Problem 9 Based on the bode plot, what is the filter type? What is the cutoff...
Example 2: For the high pass filter below calculate the cutoff frequency and draw the Bode plot showing the decibel output at fe and 0.1f C1 Vout 0.1uF R1 V1 1Vpk 1KHZ 3.3kQ 0°
Example 2: For the high pass filter below calculate the cutoff frequency and draw the Bode plot showing the decibel output at fe and 0.1f C1 Vout 0.1uF R1 V1 1Vpk 1KHZ 3.3kQ 0°
12. Design a fourth order, 2 dB Chebyshev highpass filter with a cutoff frequency of 2.4 kHz a. Draw the circuit, labeling Vin, Yout, and all component values. (14 points) and a passband gain of 0 dB. Use capacitor values of 3300 pF an approximation of the Bode plot of the magnitude transfer function IH(ia) in dB, İndicating the ripple, the cutoff frequency, and the approximate filter roll-off in dB/decade. Note, this does not reguire solving for the function. (6...
Design a low pass filter with a cutoff frequency of 1 kHz +/- 100 Hz and a gain of 16.0 dB +/- 1.0 dB in the passband. The R2 and C components of the filter control the cutoff frequency, and are inversely proportional to the cutoff frequency. So decreasing the resistance or capacitance will increase the cutoff frequency. The R1 and Rf components determine the gain of the amplifier. Increasing the value of Rf will increase the gain. Increasing the...
please answer i and ii step by step
(c) An active filter circuit with an op-amp that is ideal in all respects is shown in Figure 1.3. It has the magnitude transfer function Vout R.0 Figure 1.3: Active filter circuit with an ideal op-amp Gi) By choosing suitable frequency points for the component values of R- 10 kQ and C -0.1 HF, draw the magnitude Bode plot for the filter circuit of Figure 1.3. Use the graph paper of Page...
For each filter mentioned in the following cases, first simulate the circuit using Multisim. You can get a plot of the transfer function that is called the Bode plot. From the right toolbar, select "Bode Plotter". Change initial (I) and final (F frequencies to 1Hz and 200 KHz, respectively. Use a Voltage AC source as the input signal. You do not need to change any parameter from voltage AC source Connect "Bode Plotter" to input and output of your circuit...
Simulation For each filter mentioned in the following cases, first simulate the circuit using Multisim. You can get a plot of the transfer function that is called the Bode plot. From the right toolbar, select "Bode Plotter". Change initial (I) and final (F) frequencies to 1Hz and 200 KHz, respectively. Use a Voltage AC source as the input signal. You do not need to change any parameter from voltage AC source. Connect "Bode Plotter" to input and output of your...
Design a lowpass filter, with cutoff frequencỵ 14 16 rad s w. The maximum gain of the filter should be A 17.46 dB, and the filter gain at angularfrequencỵws 3519 rad should be no more than As -21.99 dB. a) Give a detailed analytical solution, leading to your filter order, and circuit parameters Sketchan approximate bode plot of your filter's frequency response, using a straight line approxi- mation Can you solve the problem? I think its 3th order if im...
Problem Three: Estimating a Transfer Function from a Bode Plot Based on the Bode Plot below, estimate the transfer function for this system. magnitude plot 20 0 2010g, ((w)) 40 -60 -80 10-2 10-1 10° 101 102 w (rad/s) phase plot 100 50 © -50 -100 102 10" 10° 102 10 101 (rad/s]
For the circuit shown below find the frequency response 𝐻(𝑗𝜔) =
𝑉𝑜(𝑗𝜔)
𝑉𝑖
(𝑗𝜔)
.
(b) Plot the Bode diagram (magnitude only) and verify that the circuit acts as a second-order low-pass
filter with gain of 1 and cutoff frequency of 1 rad/s (Assume that op-amps are ideal).
(c) Use the circuit in part (a) as a prototype filter to design a second-order low-pass filter with cut-off
frequency of 10KHz and gain of 20dB. Use as many 10KΩ resistors as...
Pre-Problem: Design a simple first-order low pass filter with a cutoff frequency of 1250Hz (that is, choose resistorand capacitor values for an RC circuit). Plot the filter’s magnitude response to prove that yourfilter is properly designed.
