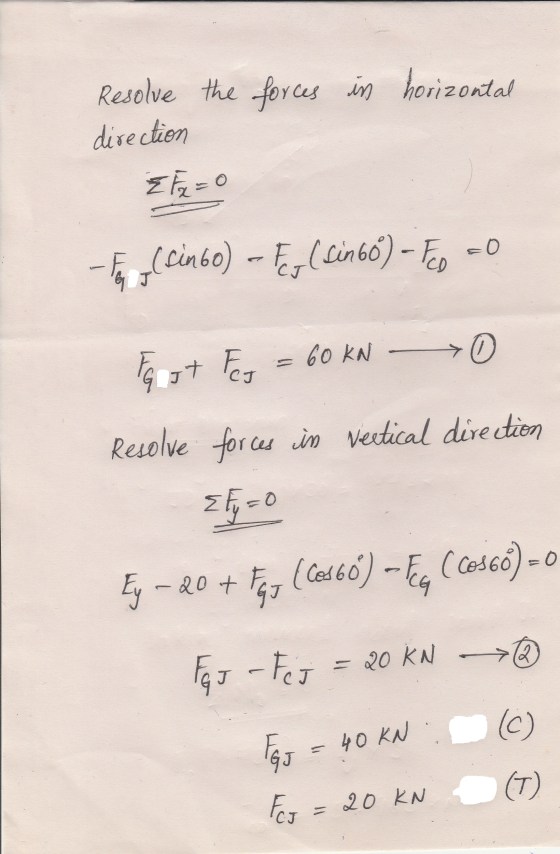

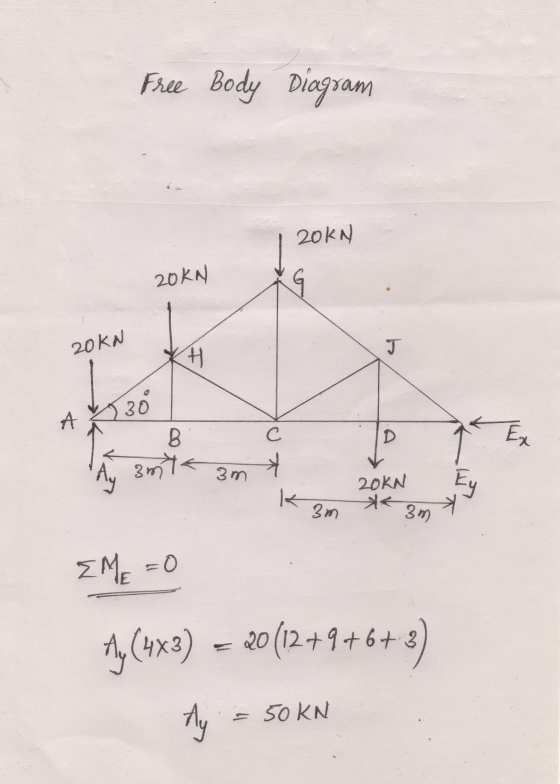

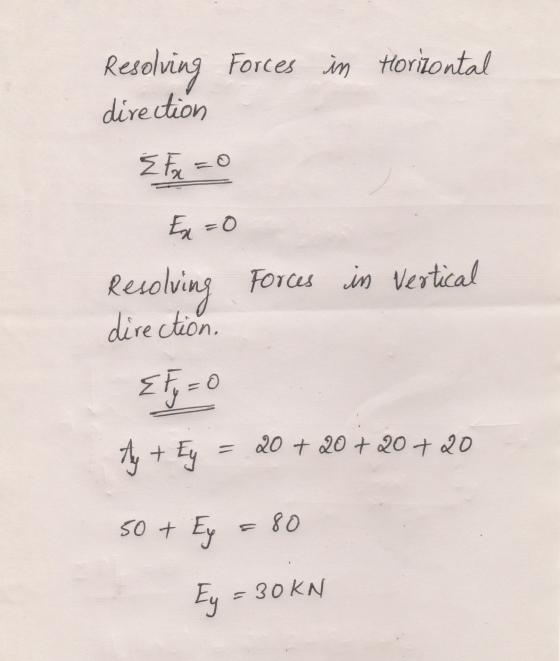

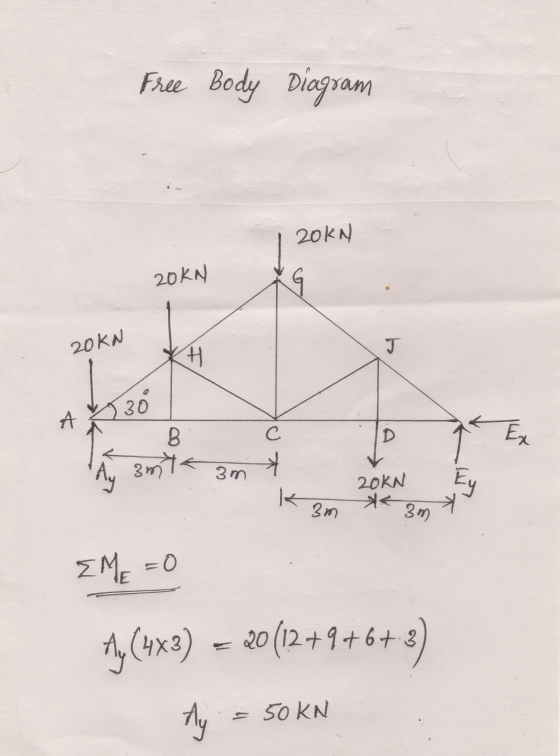

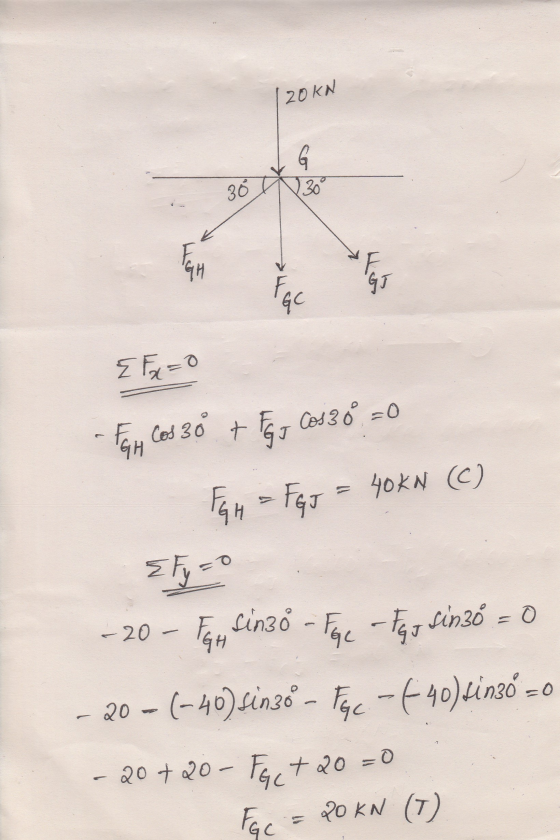

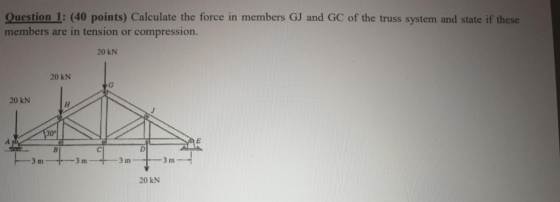

Question 1: (40 points) Calculate the force in members GJ and GC of the truss system...
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN. Assume all members...
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
Problem 1 Determine the force in each member of the truss and state if the members...
Problem 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Please use Method of Joint) Given: P, = 500 lb P, = 1500 lb a=10 ft b=10 ft Problem 2 Problem 3 Determine the force in members CD, CF, and GF of the truss. State if these members are in tension or compression. (Please use Method of Section) 5 kN 4 kN 4 kN 3 kN 2 kN (...
A. Determine the force in member DE of the truss and state if the member is...
A. Determine the force in
member DE of the truss and state if the member is in tension or
compression.
B. Determine the force in member DC of the truss and state if
the member is in tension or compression.
C. Determine the force in member EA of the truss and state if
the member is in tension or compression.
D. Determine the force in member EC of the truss and state if
the members are in tension or compression....
3. Determine the force in members FG, GC and CB of the truss shown below and...
3. Determine the force in members FG, GC and CB of the truss shown below and indicate if the members are in tension or compression. |-1.5 m-|-1.5 m-|-1.5 m- 1800 N 3 m
Question 2 (15 points): Tension, Compression and Zero-Force Members in a Truss Structure. Consider the truss...
Question 2 (15 points): Tension, Compression and Zero-Force Members in a Truss Structure. Consider the truss structure shown in Figure 2. 3P (kN) P (kN) I LI LL Figure 2: Elevation view of 27 bar truss structure. Vertical loads of 3P kN and P kN are applied at nodes B and D, respectively. [2a) (3 pts). Compute the magnitude and direction of the total support reactions at points A and C. [25] (3 pts). Identify the zero-force members (If you...
Determine the force in members CD and CM of the Baltimore bridge truss and state if...
Determine the force in members CD and CM of the Baltimore bridge truss and state if the members are in tension or compression. Also, indicate all zero-force members. SK 2 m 0 H = SB C D E F G 2 kN 5 KN 3 KN 2 KN - 16 m, 8 @ 2 m 1. A light ray is incident from air on the surface of water (n=1.33) at an angle of 60° with the normal on the surface....
Determine the force in members LK, KC, and CD of the Pratt truss.
Determine the force in members LK, KC, and CD of the Pratt truss. State if the members are in tension or compression. Take that P1=18 kN, P2=33 kN and P3 = 44 KN .(Figure 1) Part ADetermine the force in the member KC, and state if the member is in tension or compression. Part B Determine the force in the member CD, and state if the member is in tension or compression. Part C Determine the force in the member LK, and state if the...
Determine the force in members EL and LM of the truss and state if the members...
Determine the force in members EL and LM of the truss and state
if the members are in tension or compression.
Draw FBD reaction snd moment forces
3@1mx3m B Н 4@1 m=4m к 500N M 500 N W
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate...
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E - 5OON 7 3м B - А 3m- 1-3mt som 14oon
For the truss shown, Determine b) The force in member BC. State if the members are...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
Problem 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Please use Method of Joint) Given: P, = 500 lb P, = 1500 lb a=10 ft b=10 ft Problem 2 Problem 3 Determine the force in members CD, CF, and GF of the truss. State if these members are in tension or compression. (Please use Method of Section) 5 kN 4 kN 4 kN 3 kN 2 kN (...
A. Determine the force in
member DE of the truss and state if the member is in tension or
compression.
B. Determine the force in member DC of the truss and state if
the member is in tension or compression.
C. Determine the force in member EA of the truss and state if
the member is in tension or compression.
D. Determine the force in member EC of the truss and state if
the members are in tension or compression....
3. Determine the force in members FG, GC and CB of the truss shown below and indicate if the members are in tension or compression. |-1.5 m-|-1.5 m-|-1.5 m- 1800 N 3 m
Question 2 (15 points): Tension, Compression and Zero-Force Members in a Truss Structure. Consider the truss structure shown in Figure 2. 3P (kN) P (kN) I LI LL Figure 2: Elevation view of 27 bar truss structure. Vertical loads of 3P kN and P kN are applied at nodes B and D, respectively. [2a) (3 pts). Compute the magnitude and direction of the total support reactions at points A and C. [25] (3 pts). Identify the zero-force members (If you...
Determine the force in members CD and CM of the Baltimore bridge truss and state if the members are in tension or compression. Also, indicate all zero-force members. SK 2 m 0 H = SB C D E F G 2 kN 5 KN 3 KN 2 KN - 16 m, 8 @ 2 m 1. A light ray is incident from air on the surface of water (n=1.33) at an angle of 60° with the normal on the surface....
Determine the force in members EL and LM of the truss and state
if the members are in tension or compression.
Draw FBD reaction snd moment forces
3@1mx3m B Н 4@1 m=4m к 500N M 500 N W
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E - 5OON 7 3м B - А 3m- 1-3mt som 14oon
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
