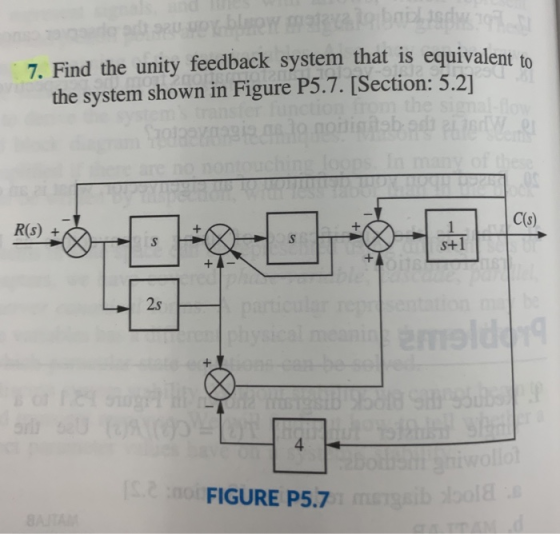

bnl dw.e blew 7. Find the unity feedback system that is equivalent to the system shown...
Problem (5): . The unity feedback system shown in Figure P9.1 with is operating with 10% overshoot [Section: 9 21 R. Whai is the value of the appropriate static error constant? b. Find the transfer function of a lag network so that the appropriale static error constant equals 4 without appreciably changing he dominant poles of the uncompensated system e. Use MATLAB or any other computer MATLAD progtam to si mulatcthe system o seethe effect of your compensator ML C(F)...
3) (30 points) Find the range of K for the unity feedback system below, but also points and calculate any asymptotes & jw-crossing value. 14. Sketch the root locus and find the range of K for stability for the unity feedback system shown in Figure P8.3 for the following conditions: [Section: 8.5 G(s) = Ke-2+2) 1,
3) (30 points) Find the range of K for the unity feedback system below, but also points and calculate any asymptotes & jw-crossing value....
steps
R(s) E(s) C(s) G(s) FIGURE P9.1 FIGURE P9.2 9. Consider the unity feedback system shown in Figure P9.1 with [Section: 9.3] K G(s) (s+4)3 a. Find the location of the dominant poles to yield a 1.6 second settling time and an overshoot of 25%. b. If a compensator with a zero at -1 is used to achieve the conditions of Part a, what must the angular contribution of the compensator pole be? c. Find the location of the compensator...
C(8) for the system shown in Figure 1. R(S Find the equivalent transfer function, Geg (s) 1 Cix) Figure 1. Block diagram 2s+1 s(5s+6Ge(s) = and Figure 2 shows a closed-loop transfer function, where G(s) 2. proper H(s) K+s. Find the overall closed-loop transfer function and express is as rational function. C(s) Ea (s) Controller R(s) +/ Plant G(s) Ge (s) Feedback H(s) Figure 2. Closed loop transfer function Construct the actuation Error Transfer Function associated with the system shown...
Given the unity feedback system of Figure 1, find the following The range of K that keeps the system stable The value of K that makes the system oscillate The frequency of oscillation when K is set to the value that makes the system oscillate with: K(s-1)(s-2) (s+2)(s2+2s + 2) G(s) C(s) R(s) E(s) + G(s) Figure: 1
Given the unity feedback system of Figure 1, find the following The range of K that keeps the system stable The value...
22. For the unity feedback system given in Figure P9.1 with G(S) = 5(+ 5)(s + 11) do the following: [Section: 9.4] a. Find the gain, K, for the uncompensated system to operate with 30% overshoot. b. Find the peak time and K, for the uncompensated system, c. Design a lag-lead compensator to decrease the peak time by a factor of 2, decrease the percent overshoot by a factor of 2, and improve the steady-state error by a factor of...
4. [30pts] Sketch the root locus of the unity feedback system shown in Figure 1 for the following transfer functions using the five rules: (G101 (b) Ga(s) (c)G,(s) Keh) K(s+2) (8+7) 82 +68+16 K (s2+2) +1
Please only answer (c) thank you!
Objective: Root Locus Plots. 1. Use the unity feedback system shown in the following figure. Clearly, apply all 6 rules of sketching root loci R(s)+ C(s) G3) a) G (s)=As(s+10)(s42s+2) s+3 (s) K82(s+10)(82+6s+25)
Objective: Root Locus Plots. 1. Use the unity feedback system shown in the following figure. Clearly, apply all 6 rules of sketching root loci R(s)+ C(s) G3) a) G (s)=As(s+10)(s42s+2) s+3 (s) K82(s+10)(82+6s+25)
1) (10 pts) Consider the unity feedback system shown in the figure: For each of the following transfer function G(s), plot its Bode plots using Matlab command "bode", and then work on the plots to find out the crossover frequency phase margin . the phase crossover frequency and the gain margin GM: (a) G(s)= , the S+4 s(s + l)(s + 2)(s +10) (b) Gs)100
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
