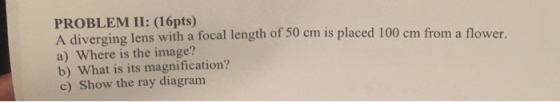

A diverging lens with a focal length of 50 cm is placed 100 cm from a...

Question

Question

science physics

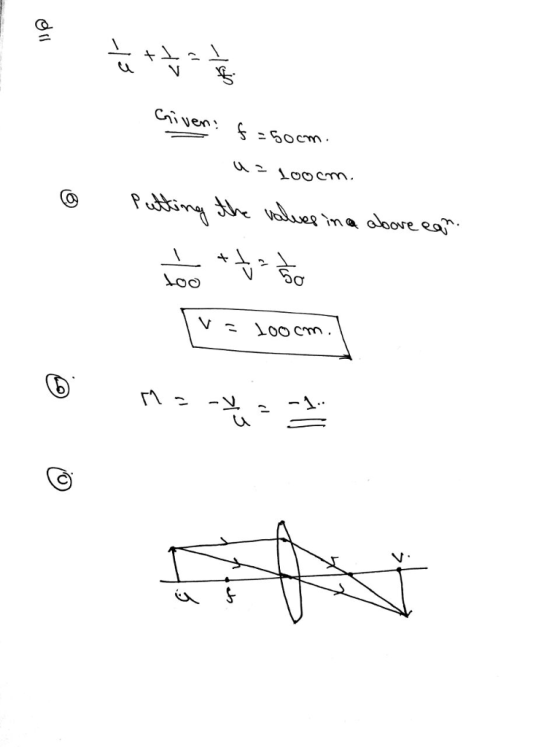

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

A diverging lens has a focal length of -20 cm. An object is placed 50 cm...

A diverging lens has a focal length of -20 cm. An object is placed 50 cm in front of the lens: (a) Where is the image located? (in cm) (b) What is the magnification of the image? (c) Is the image real or virtual? (d) Is the image erect or inverted? Please show me how you reasoned the problem, I'm struggling a lot. Thank you!!
Consider a diverging lens of focal length f--20 cm and a virtual object placed 30 cm from the len...

Consider a diverging lens of focal length f--20 cm and a virtual object placed 30 cm from the lens. Find the image distance q in centimeters. You may wish to complete this ray diagram Pick 10.0, -10.0, -50.0, -60.O, Consider a diverging lens of focal length f--20 cm and a virtual object placed 30 cm from the lens. Find the image distance q in centimeters. You may wish to complete this ray diagram Pick 10.0, -10.0, -50.0, -60.O,
A 4.0-cm tall object is placed 50.0 cm from a diverging lens having a focal length...

A 4.0-cm tall object is placed 50.0 cm from a diverging lens having a focal length of magnitude 25.0 cm. Draw the ray diagram for this situation. What is the location and height of the image? Is the image real or virtual? • Draw an optical axis with the lens centered on the axis. Represent the object at the correct distance from the lens • Draw the three "special rays" from the top of the object • Extend the rays...

An object of height 2.8 cm is placed 27 cm in front of a diverging lens of focal length 16 cm

An object of height 2.8 cm is placed 27 cm in front of a diverging lens of focal length 16 cm. Behind the diverging lens, and 11 cm from it, there is a converging lens of the same focal length.Part (a) Find the location of the final image, in centimeters beyond the converging lens. Part (b) What is the magnification of the final image? Include its sign to indicate its orientation with respect to the object.
An object is placed in front of a diverging lens with focal length of −70 cm....

An object is placed in front of a diverging lens with focal length of −70 cm. Find the location of the image and the characteristics of the image (real or virtual, enlarged or reduced, and upright or inverted) for each object distance. Also draw the ray diagram for each object distance. a) 100 cm b) 40 cm
A converging lens is placed 32.0 cm to the right of a diverging lens of focal...

A converging lens is placed 32.0 cm to the right of a diverging lens of focal length 13.0 cm. A beam of paralel light enters the diverging lens from the left, and the beam is agai parallel when it emerges from the converging lens. Calculate the focal length of the converging lens. Need Help? 24 -3 points SerCP10 23 P041.Wi My Notes Ask Your Two converging lenses, each of focal length 15.2 cm, are placed 40.9 cm apart, and an...

A diverging lens has a focal length of 65 cm. It is located 90 cm from...

A diverging lens has a focal length of 65 cm. It is located 90 cm from an object. a. Draw the ray tracing diagram to locate the image. Is the image real or virtual? b. Calculate the image location and the magnification for the image. Compare your results with part a.
The focal length of a diverging lens is negative. If f = −23 cm for a...

The focal length of a diverging lens is negative. If f = −23 cm for a particular diverging lens, where will the image be formed of an object located 32 cm to the left of the lens on the optical axis? ______cm to the left of the lens? What is the magnification of the image? b. A small object is placed to the left of a convex lens and on its optical axis. The object is 29 cm from the...
Part A: A diverging lens has of focal length of 15.0 cm. An object is placed...

Part A: A diverging lens has of focal length of 15.0 cm. An object is placed 21 cm to the left of the lens. a) draw a ray diagram showing the situation. b) find the location of the image produced by the lens (mind the signs). Part B: A converging lens is located 30 cm to the right of the previously mentioned diverging lens (part A). As a result, the image you found in part (a) is now instead located...

A converging lens has 31.4 cm focal length, and is placed 21.0 cm behind a diverging...

A converging lens has 31.4 cm focal length, and is placed 21.0 cm behind a diverging lens. Parallel light strikes the diverging lens. After passing through the converging lens, the light is again parallel. What is the focal length of the diverging lens in cm? (Hint: draw a ray diagram)
