i need the magnitude and location of the max compressive and
tensile stresses.tnx..
Homework Answers
Add Answer to:
i need the magnitude and location of the max compressive and
tensile stresses.tnx..
3. 12 kips...

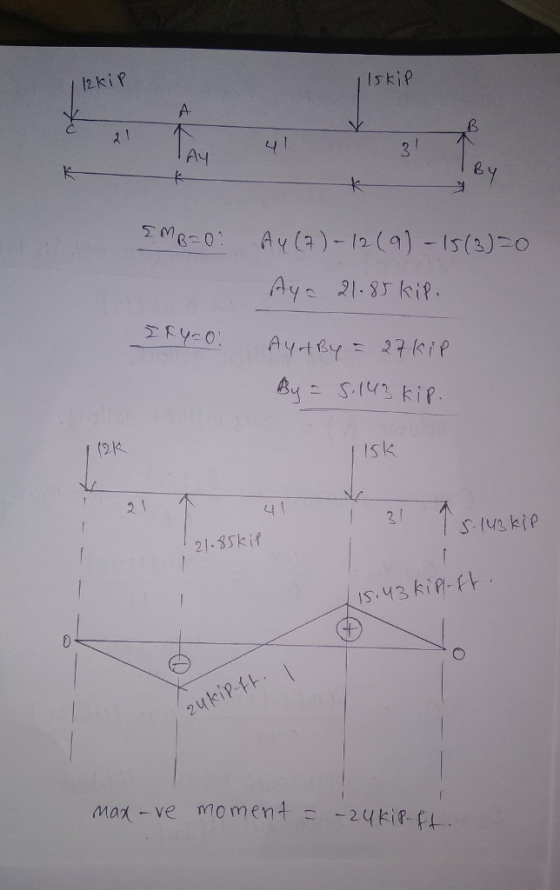

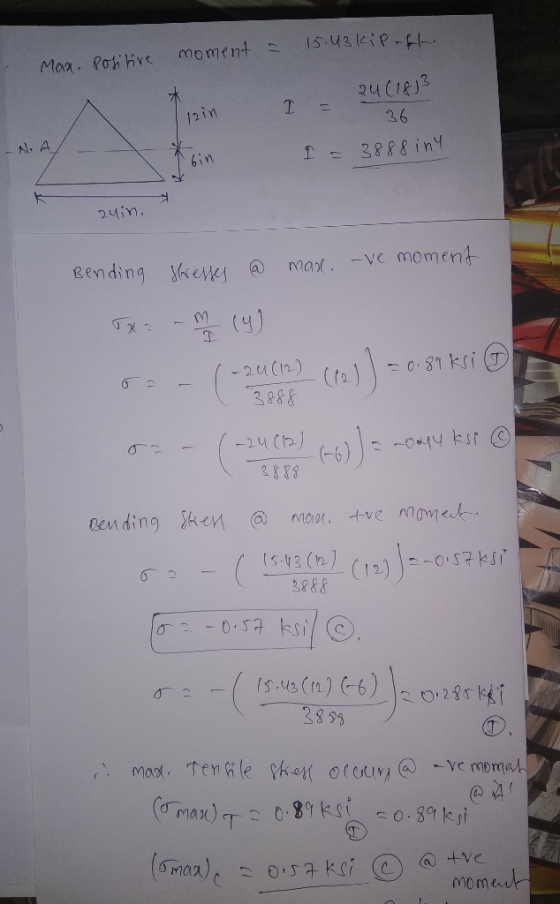

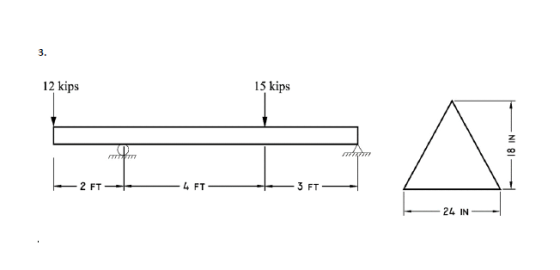

10 kips 15 kips Determine the maximum tensile and compressive stresses in Section AB of the beam....
10 kips 15 kips Determine the maximum tensile and compressive stresses in Section AB of the beam. C D 20 in 20 in.
10 kips 15 kips Determine the maximum tensile and compressive stresses in Section AB of the beam. C D 20 in 20 in.
(a) Determine the maximum compressive and tensile normal stresses in the A-36 structural steel beam shown...
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
Blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending m...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, f 'c, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse loads of 12 kips, and 6 kips, and a tensile axial force of 10 kips. a) Draw the shear and moment diagrams. (8) b) Find the stresses at B. (10) c) Find the maximum shearing stress in the beam. (10) 12 kips 2 k/ft 6 kips 10 kips 4 41 8' A B D E 12" 2" 2 14" B 24 16"
Problem 2 A beam is verticlly supported at both ends and has two downward 15 kips...
Problem 2 A beam is verticlly supported at both ends and has two downward 15 kips forces applied to it as shown below. For portion BC determine: the maximum tensile stress (Answer: 8.82ksi) and b) the maximum compressive stress. Cross-section 5 Kips 15 kips 3 in. 3 in. 3 in. A B b in. 2 in. 60 in 40in 40 in
3) A beam of square cross section with a = 6 in. supports the load distribution...
3) A beam of square cross section with a = 6 in. supports the load distribution shown. Determine the maximum tensile, compressive, and shear stresses. 4 kips/ft А B с a 12 ft 6 ft
3) A beam of square cross section with a = 6 in. supports the load distribution...
3) A beam of square cross section with a = 6 in. supports the load distribution shown. Determine the maximum tensile, compressive, and shear stresses. 4 kips/ft a А B с a 12 ft 6 ft
Q3 (25 pts) 3. For the cantilever beam shown below and to the left, Determine the...
Q3
(25 pts) 3. For the cantilever beam shown below and to the left, Determine the reactions at the wall at C. Draw the shear (V) and moment (M) diagram for the beam and label the appropriate values. For the given cross section, determine the magnitude of the maximum COMPRESSIVE bending stress and state where this occurs along the length of the beam and along the height of the beam (top or bottom). Sketch the NORMAL stress distribution (profile) for...
10 kips 15 kips Determine the maximum tensile and compressive stresses in Section AB of the beam. C D 20 in 20 in.
10 kips 15 kips Determine the maximum tensile and compressive stresses in Section AB of the beam. C D 20 in 20 in.
(a) Determine the maximum compressive and tensile normal
stresses in the A-36 structural steel beam shown and define their
locations (location along the beam and on the cross section). (b)
Determine the deflection of point B using the double
integration method. The height of the cross section shown (in the
y-direction) is 5 inches and width (in the
z-direction) is 10 inches, and the average thickness
throughout is 0.5 inches. (Use elastic properties for all
calculations)
ANSWER: (a) max tensile...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse loads of 12 kips, and 6 kips, and a tensile axial force of 10 kips. a) Draw the shear and moment diagrams. (8) b) Find the stresses at B. (10) c) Find the maximum shearing stress in the beam. (10) 12 kips 2 k/ft 6 kips 10 kips 4 41 8' A B D E 12" 2" 2 14" B 24 16"
Problem 2 A beam is verticlly supported at both ends and has two downward 15 kips forces applied to it as shown below. For portion BC determine: the maximum tensile stress (Answer: 8.82ksi) and b) the maximum compressive stress. Cross-section 5 Kips 15 kips 3 in. 3 in. 3 in. A B b in. 2 in. 60 in 40in 40 in
3) A beam of square cross section with a = 6 in. supports the load distribution shown. Determine the maximum tensile, compressive, and shear stresses. 4 kips/ft А B с a 12 ft 6 ft
3) A beam of square cross section with a = 6 in. supports the load distribution shown. Determine the maximum tensile, compressive, and shear stresses. 4 kips/ft a А B с a 12 ft 6 ft
Q3
(25 pts) 3. For the cantilever beam shown below and to the left, Determine the reactions at the wall at C. Draw the shear (V) and moment (M) diagram for the beam and label the appropriate values. For the given cross section, determine the magnitude of the maximum COMPRESSIVE bending stress and state where this occurs along the length of the beam and along the height of the beam (top or bottom). Sketch the NORMAL stress distribution (profile) for...
