Homework Answers
Add Answer to:

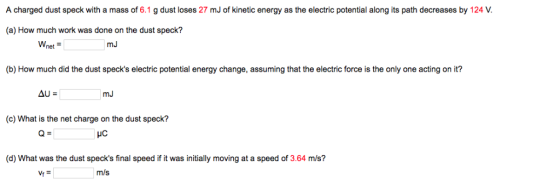

A charged dust speck with a mass of 6.1 g dust loses 27 mJ of kinetic...
5. As shown in Figure 5.1, three large, thin, uniformly charged plates are arranged so that...
5. As shown in Figure 5.1, three large, thin, uniformly charged plates are arranged so that there are two adjacent regions of uniform electric field. The origin is at the center of the central plate. + A Location A is (-0.4,0,0) m, and location B is (0.2,0,0) m. The electric field Ei has the value (725,0,0) V/m, and E2 is (-425, 0, 0) V/m Figure 5.1 a. Consider a path from A to B. Along this path, what is the...
16.1 A 5 µC charged particle with a mass of 0.03 g is released in a...
16.1 A 5 µC charged particle with a mass of 0.03 g is released in a uniform 4700 N/C electric field. a) How much work is done on the particle as it moves 4 m? b) What is the change in the kinetic energy of the particle? c) What is the change in the potential energy of the particle? 16.3 a) If the electric potential difference between two points 1.75 m apart in a uniform field is 465 V, what...
A very long charged wire in a particle detector (it can be approximated by an infinite...
A very long charged wire in a particle detector (it can be approximated by an infinite line charge) has a positive linear charge density 6.00x10-12 C/m. A proton (mass 1.67x10-27 kg, charge +1.60 X 10-19 C) is initially a distance 19.0 cm from the wire and moving directly toward the wire at a speed 4.30x103 m/s. Calculate the proton's initial kinetic energy. How close is the proton to the wire when its speed equals zero?
i) Mass 1 is initially moving in the +x direction and has 20 Joules of kinetic...
i) Mass 1 is initially moving in the +x direction and has 20 Joules of kinetic energy. It collides perfectly elastically with mass 2 moving at in the -x direction with 14 Joules of kinetic energy. After the collision, mass 2 has 20 Joules of kinetic energy. How much kinetic energy does mass 1 have after the collision in Joules? (Note: the masses are not needed to answer this question.) ii) Mass 1 of 10 kg is initially moving at...
A very long charged wire in a particle detector (it can be approximated by an infinite...
A very long charged wire in a particle detector (it can be approximated by an infinite line charge) has a positive linear charge density 4.00×10−12 C/m . A proton (mass 1.67×10−27 kg, charge +1.60×10−19 C) is initially a distance 11.5 cm from the wire and moving directly toward the wire at a speed 2.40×103 m/s . A) Calculate the proton's initial kinetic energy. B) How close is the proton to the wire when its speed equals zero?
As shown in the figure, a wooden ball with mass m, is initially at rest on...
As shown in the figure, a wooden ball with mass m, is initially at rest on a horizontal, frictionless table. A second wooden ball with mass m, moving with a speed 2.00 m/s, collides with my. Assume m, moves initially along the +x-axis. After the collision, m, moves with speed 1.00 m/s at an angle of 0 = 52.0° to the positive x-axis. (Assume me = 0.200 kg and m, = 0.300 kg.) Figure b: After the collision Before the...
A proton (mass m - 1.67 * 10-27 kg) is being accelerated along a straight line...
A proton (mass m - 1.67 * 10-27 kg) is being accelerated along a straight line at 5.50 x 1012m/s in a machine. If the proton has an initial speed of 7.30 * 108 m/s and travels 3.80 cm, what then is (a) its speed and (b) the increase in its kinetic energy? The figure here shows an overhead view of three horizontal forces acting on a cargo canister that was initially stationary but that now moves across a frictionless...
3) The electric field between a charged Van de Graaf generator and its grounding sphere is...
3) The electric field between a charged Van de Graaf generator and its grounding sphere is generally non uniform. This is true in the example diagrammed below where the surface of the generator is at a potential of 5000 V relative to the grounding sphere which is at a potential of 0 V. The shapes of several equipotential surfaces are sketched as well as the velocity vector of an electron that is crossing the 1200 V equipotential surface at a...
please explain your answer and draw graph. Also label the answers thoroughly. Answer both for thumbs up:)) m2 6 Fig awre . 2. The magnitude of the force of attraction between the positively charged p...
please explain your answer and
draw graph. Also label the answers thoroughly. Answer both for
thumbs up:))
m2 6 Fig awre . 2. The magnitude of the force of attraction between the positively charged proton and the negatively charged electron in a Hydrogen aton is given by f(r) = ke2/r2 where e is the charge on the proton, k is Coulomb's constant, and r is the distance between the proton and the electron. Assume that the protorn can't move. The...
20. A charged particle has a charge of q+2e and a mass of 4.00 u, where...
20. A charged particle has a charge of q+2e and a mass of 4.00 u, where u is the atomic mass unit, with 1u 1.661x10-27 kg. Suppose the charged particle travels in a circular path of radius 4.50 cm in a uniform magnetic field with B1.20 T. Which of the following is TRUE? A) The particle's speed is 1.30x105 m/s B) The period of revolution is 0.409 us. C) The particle's kinetic energy is 0.140 MeV. D) The particle has...
5. As shown in Figure 5.1, three large, thin, uniformly charged plates are arranged so that there are two adjacent regions of uniform electric field. The origin is at the center of the central plate. + A Location A is (-0.4,0,0) m, and location B is (0.2,0,0) m. The electric field Ei has the value (725,0,0) V/m, and E2 is (-425, 0, 0) V/m Figure 5.1 a. Consider a path from A to B. Along this path, what is the...
A very long charged wire in a particle detector (it can be approximated by an infinite line charge) has a positive linear charge density 6.00x10-12 C/m. A proton (mass 1.67x10-27 kg, charge +1.60 X 10-19 C) is initially a distance 19.0 cm from the wire and moving directly toward the wire at a speed 4.30x103 m/s. Calculate the proton's initial kinetic energy. How close is the proton to the wire when its speed equals zero?
As shown in the figure, a wooden ball with mass m, is initially at rest on a horizontal, frictionless table. A second wooden ball with mass m, moving with a speed 2.00 m/s, collides with my. Assume m, moves initially along the +x-axis. After the collision, m, moves with speed 1.00 m/s at an angle of 0 = 52.0° to the positive x-axis. (Assume me = 0.200 kg and m, = 0.300 kg.) Figure b: After the collision Before the...
A proton (mass m - 1.67 * 10-27 kg) is being accelerated along a straight line at 5.50 x 1012m/s in a machine. If the proton has an initial speed of 7.30 * 108 m/s and travels 3.80 cm, what then is (a) its speed and (b) the increase in its kinetic energy? The figure here shows an overhead view of three horizontal forces acting on a cargo canister that was initially stationary but that now moves across a frictionless...
3) The electric field between a charged Van de Graaf generator and its grounding sphere is generally non uniform. This is true in the example diagrammed below where the surface of the generator is at a potential of 5000 V relative to the grounding sphere which is at a potential of 0 V. The shapes of several equipotential surfaces are sketched as well as the velocity vector of an electron that is crossing the 1200 V equipotential surface at a...
please explain your answer and
draw graph. Also label the answers thoroughly. Answer both for
thumbs up:))
m2 6 Fig awre . 2. The magnitude of the force of attraction between the positively charged proton and the negatively charged electron in a Hydrogen aton is given by f(r) = ke2/r2 where e is the charge on the proton, k is Coulomb's constant, and r is the distance between the proton and the electron. Assume that the protorn can't move. The...
20. A charged particle has a charge of q+2e and a mass of 4.00 u, where u is the atomic mass unit, with 1u 1.661x10-27 kg. Suppose the charged particle travels in a circular path of radius 4.50 cm in a uniform magnetic field with B1.20 T. Which of the following is TRUE? A) The particle's speed is 1.30x105 m/s B) The period of revolution is 0.409 us. C) The particle's kinetic energy is 0.140 MeV. D) The particle has...
