In the figure below, a long straight wire carries a current of 3.1 A.
Find the magnitude of the net force on a rigid square loop of
wire of side, l, equal to 5.73 cm. The center of the loop is 10.80
cm from the wire and the loop carries a current of 10.0 A
please help!
Homework Answers

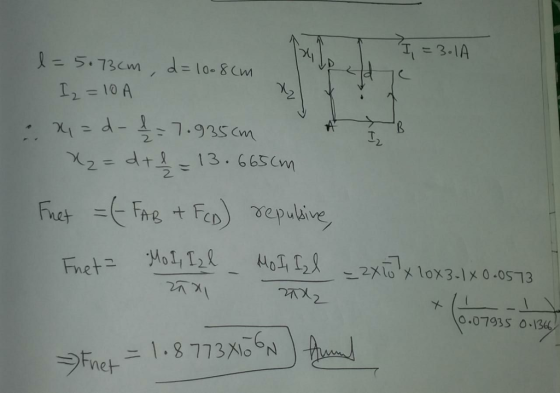

Dear student,
Find this solution .if any issue with that don't forget to write in
comment section.I will rectify them as soon as possible.
If you find the solution helpful and kindly RATE THE ANSWER it
would be appreciated.
Your rating is important to me.
Thanks for asking..
