Homework Answers
Given L=23 feet, Mc=638 kip.ft
To find vertical reaction at A(VA) = ?
Lets first calculate the vertical reaction/forces act on beam
Consider V=Vertical , VA & VB vertical reaction/forces act at point A and B respectively
VA + VB = 0
VA +
Same for Horizonatal reaction/forces , H=Horizontal , HA & HB , horizontal reactiom/forces at point A and B respectively
HA + HB = 0
Since we not need to find our horizontal reaction.
Now calculate moment act on pont A , Taking anticlockwise negative(-) , clockwise positive(+)
Mc + VB(0.5L + 0.5L ) = 0
now put the value
-638 + {- VB(1.0 * L )} = 0
-638 + {- VB(1.0 * 23 )} = 0
- 23VB = 638
VB = - 27.73
Now put VB value in vertical reaction equation as we write in starting
VA + VB = 0
VA + (- 27.73) = 0
VA = 27.73 is answer
Add Answer to:

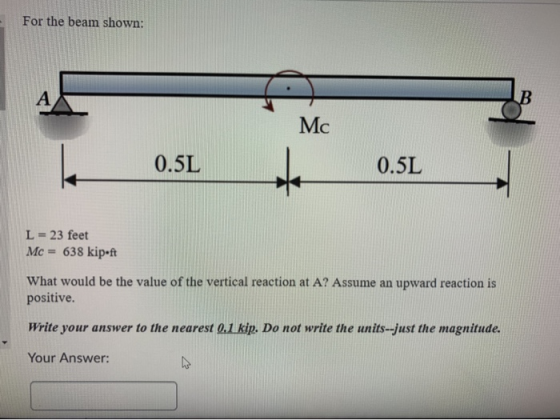

For the beam shown: Mc 0.5L 0.5L L = 23 feet Mc = 638 kipoft What...
Problem 12.40 ( 5017 Consider the beam shown in Figure 1) B-2910) kesi and 1 =...
Problem 12.40 ( 5017 Consider the beam shown in Figure 1) B-2910) kesi and 1 = 192 in Part A Determine the slope at of the beam mewured counterclocrom the positive and Express your answer using three significant figures and include the appropriate units Figure 101 > AXD! vec DO skip Subm Request Answer 2 kip kip Part Determine the deflection of and C Express your answer using three significant figures and include the appropriate uns. Este positive value the...
For the beam and loading shown in the figure, integrate the load distribution to determine the...
For the beam and loading shown in the figure, integrate the load
distribution to determine the equation of the elastic curve for the
beam, and the maximum deflection for the beam. Assume that
EI is constant for the beam. Assume EI=25000 kN⋅m2, L=2.4
m, and w0=61 kN/m.
(a) Use your equation for the elastic curve to
determine the deflection at x=1.5 m. Enter a negative value if
the deflection is downward, or a positive value if it is
upward.
(b)...
For the beam shown, draw the reactions at supports A and B in the positive direction,...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. kip ft B L/3 ft Lft COLLAPSE IMAGES w = 17 kipiift L = 9 ft The vertical reaction at support A. (Ay) kip ENTER 3 tries remaining. 1 point(3) possible The horizontal reaction at support A. (Ax) kip ENTER 3 tries remaining. 1 point(s) possible The vertical reaction...
Consider the beam shown in (Figure 1) E - 29(10) ksi and I 202 in Part...
Consider the beam shown in (Figure 1) E - 29(10) ksi and I 202 in Part A Determine the slope at A of the beam, measured counterclockwise from the positive r axis Express your answer using three significant figures and include the appropriate units. rad Submit Figure Part B Determine the defection of end C Express your answer using three significant tigures and include the appropriate units. Enter positive value if the deflection is upward and negative value if the...
For the beam shown, what are the support reaction forces? Please report in units of kip...
For the beam shown, what are the support reaction forces? Please
report in units of kip in 2 sig figs.
Question 2 1/ 3 pts 4 kip 9 kip M-23 kip ft 9 in 5 ft 3 ft 3ft 2ft 6 in For the beam above, what are the support reaction forces? Please report your answers in the units of kips' and to 2 significant digits Y-direction for roller? 1 X-direction for the pinned support (triangle)0 Y-direction for the pinned...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E =...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E = 29(10) ksi and I-206 in Part A Determine the slope at of the beam, measured counterclockwise from the positive r axis. Express your answer using three significant figures and include the appropriate units. 180 A vec RO ? 0 = rad Submit Request Answer Part B Figure 1of1 Determine the deflection of end C. Express your answer using three significant figures and include the...
If two loads are applied to a beam as shown in the a The weight If the weight of the beam is rand...
If two loads are applied to a beam as shown in the a The weight If the weight of the beam is random, the of the beam itself contributes to the bending moment. Assume that the beam is of unitorm thickness and density so that the resulting load is uniformly distributed on the beam. load from the weight is aso random; denote this load by W (kip-t). the fixed loads X, and X2 are independent rv's with means 4 and...
Review Consider the beam shown in (Figure 1). E= 29(103) ksi and I = 210 in...
Review Consider the beam shown in (Figure 1). E= 29(103) ksi and I = 210 in . Determine the slope at A of the beem, messured counterciockwise from the positive axis Express your answer using three significant figures and include the appropriate units. VAE4 ? 1.24 103 rad Previous Answers Request Anewor Submit X Incorrect: Try Again Part B Detormine the dotloction of and C Figure Express your answer using three significant figures and include the appropriate units. Enter positive...
mechanics materials To determine the reactive forces and moments acting on a beam; express the shear...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
unsure what to do here For the beam and loading shown in the diagram below calculate...
unsure what to do here
For the beam and loading shown in the diagram below calculate the internal shear and internal bending moment at various points Then correctly identify the internal shear diagram, Force P is located at point A Force P2 is located at point D. Force P3 is located at point & Point Cis pinned, and point Eis on rollers. Point 1 is located just to the right of point Point 2 is located just to the right...
Problem 12.40 ( 5017 Consider the beam shown in Figure 1) B-2910) kesi and 1 = 192 in Part A Determine the slope at of the beam mewured counterclocrom the positive and Express your answer using three significant figures and include the appropriate units Figure 101 > AXD! vec DO skip Subm Request Answer 2 kip kip Part Determine the deflection of and C Express your answer using three significant figures and include the appropriate uns. Este positive value the...
For the beam and loading shown in the figure, integrate the load
distribution to determine the equation of the elastic curve for the
beam, and the maximum deflection for the beam. Assume that
EI is constant for the beam. Assume EI=25000 kN⋅m2, L=2.4
m, and w0=61 kN/m.
(a) Use your equation for the elastic curve to
determine the deflection at x=1.5 m. Enter a negative value if
the deflection is downward, or a positive value if it is
upward.
(b)...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. kip ft B L/3 ft Lft COLLAPSE IMAGES w = 17 kipiift L = 9 ft The vertical reaction at support A. (Ay) kip ENTER 3 tries remaining. 1 point(3) possible The horizontal reaction at support A. (Ax) kip ENTER 3 tries remaining. 1 point(s) possible The vertical reaction...
Consider the beam shown in (Figure 1) E - 29(10) ksi and I 202 in Part A Determine the slope at A of the beam, measured counterclockwise from the positive r axis Express your answer using three significant figures and include the appropriate units. rad Submit Figure Part B Determine the defection of end C Express your answer using three significant tigures and include the appropriate units. Enter positive value if the deflection is upward and negative value if the...
For the beam shown, what are the support reaction forces? Please
report in units of kip in 2 sig figs.
Question 2 1/ 3 pts 4 kip 9 kip M-23 kip ft 9 in 5 ft 3 ft 3ft 2ft 6 in For the beam above, what are the support reaction forces? Please report your answers in the units of kips' and to 2 significant digits Y-direction for roller? 1 X-direction for the pinned support (triangle)0 Y-direction for the pinned...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E = 29(10) ksi and I-206 in Part A Determine the slope at of the beam, measured counterclockwise from the positive r axis. Express your answer using three significant figures and include the appropriate units. 180 A vec RO ? 0 = rad Submit Request Answer Part B Figure 1of1 Determine the deflection of end C. Express your answer using three significant figures and include the...
If two loads are applied to a beam as shown in the a The weight If the weight of the beam is random, the of the beam itself contributes to the bending moment. Assume that the beam is of unitorm thickness and density so that the resulting load is uniformly distributed on the beam. load from the weight is aso random; denote this load by W (kip-t). the fixed loads X, and X2 are independent rv's with means 4 and...
Review Consider the beam shown in (Figure 1). E= 29(103) ksi and I = 210 in . Determine the slope at A of the beem, messured counterciockwise from the positive axis Express your answer using three significant figures and include the appropriate units. VAE4 ? 1.24 103 rad Previous Answers Request Anewor Submit X Incorrect: Try Again Part B Detormine the dotloction of and C Figure Express your answer using three significant figures and include the appropriate units. Enter positive...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
unsure what to do here
For the beam and loading shown in the diagram below calculate the internal shear and internal bending moment at various points Then correctly identify the internal shear diagram, Force P is located at point A Force P2 is located at point D. Force P3 is located at point & Point Cis pinned, and point Eis on rollers. Point 1 is located just to the right of point Point 2 is located just to the right...
