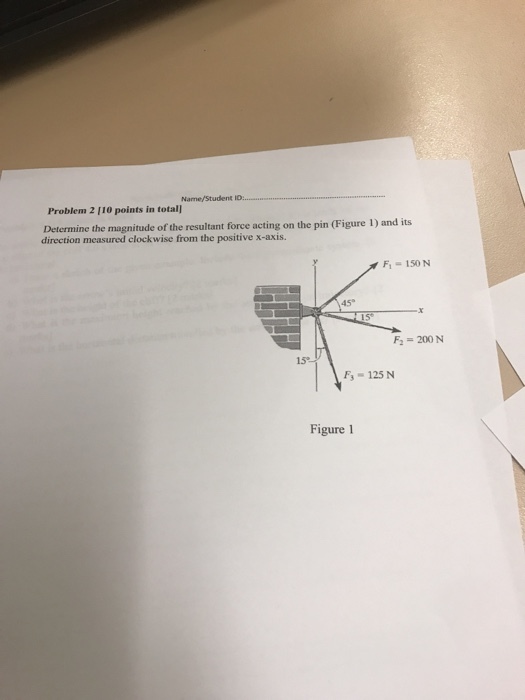

Determine the magnitude of the resultant force acting on the pin (Figure 1) and its direction...

Question

Question

science physics

Answer 1

Answer #1

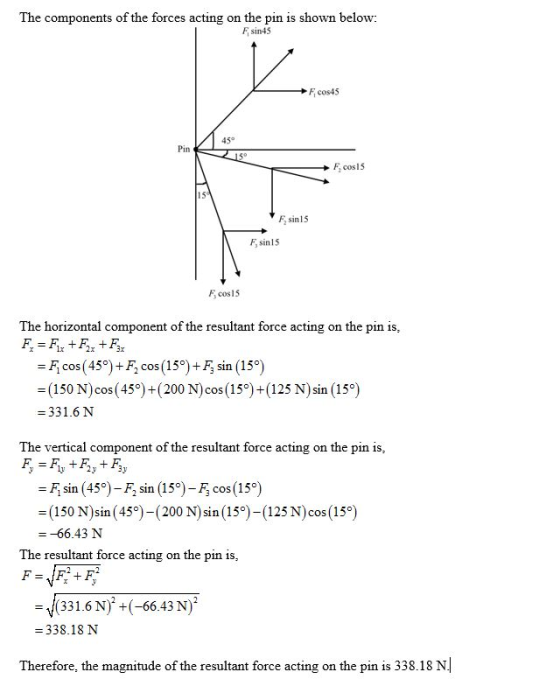

The components of the forces acting on the pin is shown below: Fsin45 F cos45 45 Pin 150 F cos15 F sin15 F, sin15 cos15 The h

Answer 2

Similar Homework Help Questions

2-1. If θ= 30° and T = 6kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis.

2-1. If θ= 30° and T = 6kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis. 2-2. If θ = 60° and T = 5 kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis. 2-3. If the magnitude of the resultant force is to be 9 kN directed along the positive x axis, determine the magnitude...
Determine the magnitude of the resultant force acting on thescrew eye and its direction measured...

Determine the magnitude of the resultant force acting on the screw eye and its direction measured clockwise from the x axis.
Determine the magnitude of the resultant force acting on the plate and its direction

Determine the magnitude of the resultant force acting on the plate and its direction, measured counterclockwise from the positive x-axis.F1 = 900N, F3 = 650N, F2 = 750N

If F = 8.0 kN, determine the magnitude of the resultant force acting on the screw eye.(Figure 1)

Part A If F = 8.0 kN, determine the magnitude of the resultant force acting on the screw eye.(Figure 1) Part B Determine the direction of the resultant force acting on the screw eye measured clockwise from the x axis.
Determine the magnitude of the resultant force acting on the bracket and its direction measured...

Determine the magnitude of the resultant force acting on the bracket and its direction measured counterclockwise from the positive u axis.
Determine the magnitude of the resultant force and its direction, measured clockwise from the positive x...

Determine the magnitude of the resultant force and its direction, measured clockwise from the positive x axis F1 = 4kNF2 = 5kN F3 = 8kN

If the resultant force acting on the eyebolt is 1600 N and its direction measured clockwise from the positive x-axis is 30°

Force Vectors If the resultant force acting on the eyebolt is 1600 N and its direction measured clockwise from the positive x-axis is 30°, determine force (F1) & angle (φ) for the shown figure.
2-6. Determine the magnitude of the resultant force FR = F1 + F2 and its direction,...

2-6. Determine the magnitude of the resultant force FR = F1 + F2 and its direction, measured clockwise from the positive u axis. 2-7. Resolve the force F1 into components acting along the u and v axes and determine the magnitudes of the components. 2-8. Resolve the force F2 into components acting along the u and v axes and determine the magnitudes of the components.
Determine the magnitude of the resultant force FR and its direction

Determine the magnitude of the resultant force FR and its direction, measured counterclockwise from the positive x axis.

In Figure 2, determine the magnitude of the resultant force and its direction measured counterclockwise from the positive x axis.

In Figure 2, determine the magnitude of the resultant force and its direction measured counterclockwise from the positive x axis.
