Q8 - Construct a Binary Search Tree by inserting the following sequence of numbers. 5,6,3,2,10,4,1,7,9,8. Write...

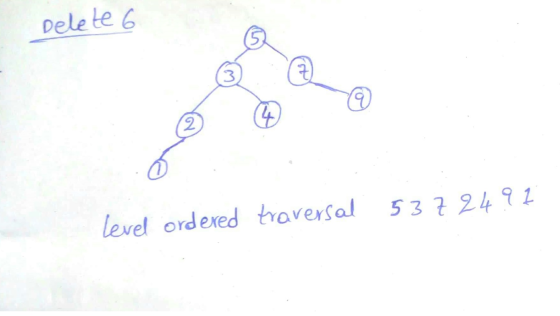

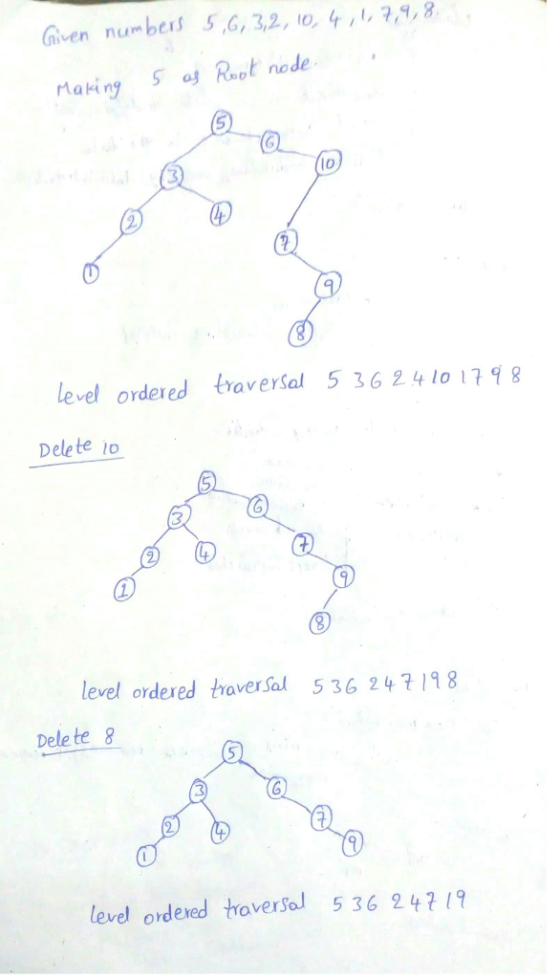

Q8 - Construct a Binary Search Tree by inserting the following sequence of numbers. 5,6,3,2,10,4,1,7,9,8. Write down the level ordered traversal sequence of the final tree after insert. Delete node 10, 8, and 6 step by step using in-order successor. Write down the level ordered traversal sequence after every delete. I want you to write down (1 level ordered traversal for the insert and 3 level-ordered traversals for the deletes). In total there should be 4 level-ordered traversal sequences in your solution. Please help as fast as possible for thumbs up
Homework Answers
#please give us like, Thank You.
