5.A 50-pF capacitor is charged to 50 V, and then connected across (in parallel) an imtialy...

Question

Question

science physics

Answer 1

Answer #1

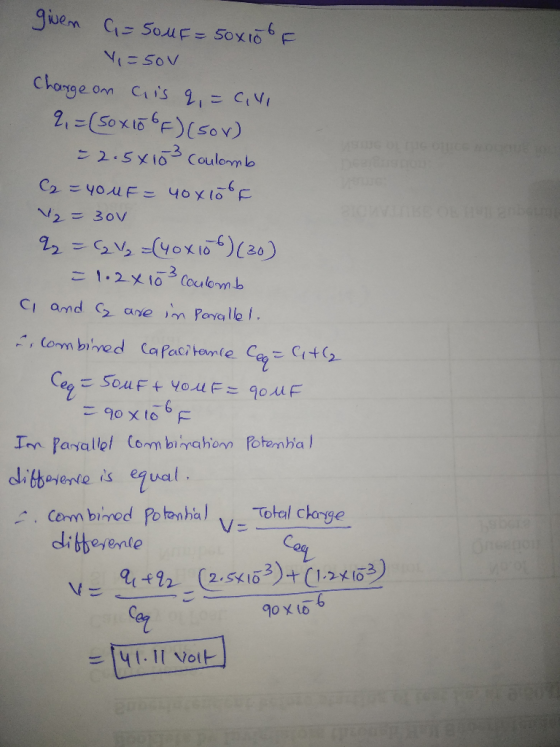

given G=SouF= 50x10F V=50V Charge on ais q, cili 2,= (50x106F) (SOV) = 2.5x103 Coulomb C = 40 uF = 40x10of V2 = 3ov 2 = (2/₂

Answer 2

Similar Homework Help Questions

R 60 R R 5. A 60-uF capacitor is charged to 60 V, and then connected...

R 60 R R 5. A 60-uF capacitor is charged to 60 V, and then connected across (in parallel) an charged 20-uF 40 V capacitors. What is the final potential difference across the 2 capacitor? (Step by step solution) (15 points) What is the energy of C2when C 25.0 uF, C2 15 HF, C3 50 uF, and Vo 18 V? (15 C Catcz V-Vo
A 27.0-uF capacitor and a 48.0-uF capacitor are charged by being connected across separate 20.0-V batteries....

A 27.0-uF capacitor and a 48.0-uF capacitor are charged by being connected across separate 20.0-V batteries. A) determine the resulting charge on each capacitor (Give the answer in at least three sig figs) 27.0-uF capacitor _____mC 48.0-uF capacitor ____mC B) The capacitors are then disconnected from their batteries and connected to each other, with each negative plate connected to the other positive plate. What is the final charge of each capacitor? 27.0-uF capacitor _____uC 48.0-uF capacitor ____uC C) What is...
A 110 pF capacitor is charged to a potential difference of 64 V, and the charging...

A 110 pF capacitor is charged to a potential difference of 64 V, and the charging battery is disconnected. The capacitor is then connected in parallel with a second (initially uncharged) capacitor. If the measured potential difference across the first capacitor drops to 31 V, what is the capacitance of this second capacitor?

A 270 pF capacitor is charged to a potential difference of 120 V, and the charging...

A 270 pF capacitor is charged to a potential difference of 120 V, and the charging battery is disconnected. The capacitor is then connected in parallel with a second (initially uncharged) capacitor. If the measured potential difference drops to 110 V, what is the capacitance of this second capacitor? (pF)
S the wire? 28-5. A 20-uf capacitor is charged to a potential difference of 1000 volts....

S the wire? 28-5. A 20-uf capacitor is charged to a potential difference of 1000 volts. The terminals of the charged capacitor are then connected to those of an un- charged 5-uf capacitor. Compute (a) the original charge of the system, (b) the final potential difference across each capacitor, (C) the final energy of the system, (d) the decrease in energy when the capacitors are connected.
A 1.7 μF capacitor and a 6.1 μF capacitor are connected in parallel across a 360...

A 1.7 μF capacitor and a 6.1 μF capacitor are connected in parallel across a 360 V potential difference. Calculate the total energy stored in the capacitors.

A 1.6 µF capacitor and a 4.9 µF capacitor are connected in parallel across a 450...

A 1.6 µF capacitor and a 4.9 µF capacitor are connected in parallel across a 450 V potential difference. Calculate the total energy in joules stored in the capacitors.
5. Charge of -100 nC is distributed along the two arcs shown (on the right 15°...

5. Charge of -100 nC is distributed along the two arcs shown (on the right 15° arc there is 1/4 part of the total charge). Determine the electric field at point P, if R=20 cm. (Step by step solution) (15points) R R + - + P 15° R R 6. A 100-uF capacitor is charged to 200 V, and then connected across (in parallel) an initially charged 200-uF 50 V capacitors. What is the change in energy of the 200-uF...
A 50 pF parallel-plate capacitor with an air gap between the plates is connected to a...

A 50 pF parallel-plate capacitor with an air gap between the plates is connected to a 50V battery. A Teflon (K=2) slab is then inserted between the plates and completely fills the gap. Then the battery is disconnected. What is the new potential difference? (1 pF = 10-12 F)

A 2.50- mu F capacitor is charged to 747 V and 6.80-mu F capacitor is charged...

A 2.50- mu F capacitor is charged to 747 V and 6.80-mu F capacitor is charged to 564 V capacitors are then disconnected from their batteries. Next the positive plates are connected to each other and the negative plates are connected to each other What will to the potential difference across each and the charge on each? Determine the potential difference across the first capacitor. Determine potential difference across the second capacitor.
