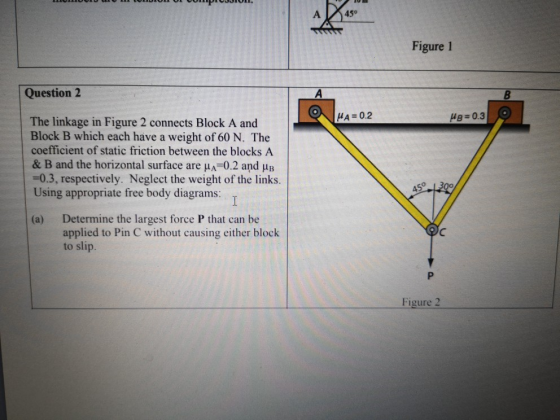

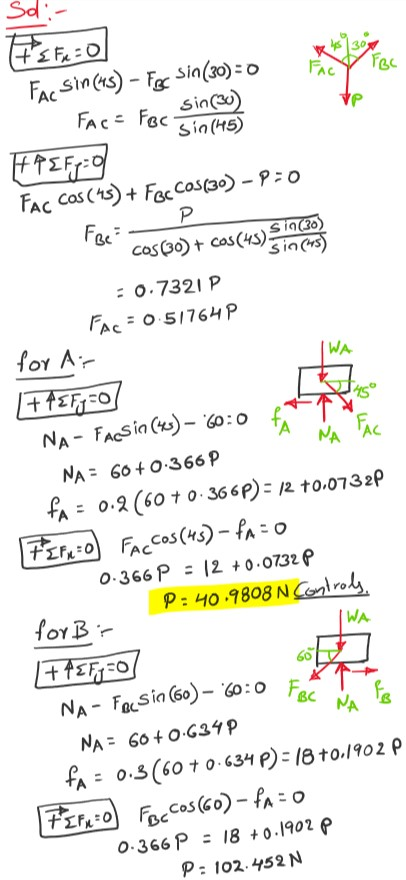

45° Figure 1 Question 2 HA=0.2 g=0.3 The linkage in Figure 2 connects Block A and...
Blocks B has a mass of 20 kg and block C has a mass of 15 kg. The coefficient of static friction at the contacting surfaces is 0.2. Block A is suspended by a rope that passes over a fixed cylinder and is attached to block B. The coefficient of static fric
Blocks B has a mass of 20 kg and block C has a massof 15 kg. The coefficient of static friction at thecontacting surfaces is 0.2. Block A is suspended by arope that passes over a fixed cylinder and is attachedto block B. The coefficient of static friction betweenthe rope and the cylinder is 0.25. What is the largestmass block A can have without causing block B to slipthe left?
A 2-kg block is placed on the top of a 5-kg block . . . .
A 2-kg block is placed on the top of a 5-kg block The coefficientof kinetic friction between the 5-kg block and the surface isμk =0.2. A horizontal force F is appliedto the 5-kgblock.a) Draw a free-body diagram for each block. What force acceleratesthe 2-kg block?b) Calculate the magnitude of the force necessary to pull bothblocks to the right withacceleration 3 m/s2.c) Find the minimum coefficient of static friction μs betweenthe blocks suchthat the 2-kg block does not slip under an...
Block A with mass m is placed on a block B with mass M (Figure 1)....
Block A with mass m is placed on a block B with mass M (Figure 1). The coefficient of static friction between the two blocks surfaces is mu_s. Block B is on a frictionless, horizontal surface. Find the minimal horizontal force F rightarrow necessary to be applied to block B to make block A starting sliding on block B. Include the free-body diagrams you used to determine your answer and explain in detail each reasoning you followed to solve the...
The coefficient of static friction at C is fs = 0.3. Neglect the thickness of the...
The coefficient of static friction at C is fs = 0.3. Neglect the thickness of the ring. (Figure 1) Part A Determine the largest magnitude of the force F that can be applied to the 6-kg ring, without causing it to slip. Express your answer to three significant figures and include the appropriate units. 0 ÅR O 2 ? Ft Value Units Figure < 1 of 1 > Submit Request Answer Provide Feedback G 30 0.4 m
I need help on #1 1. The 20-N block A and the 30-N block B are...
I need help on #1
1. The 20-N block A and the 30-N block B are supported by an incline that is held in the position shown. Knowing that the coefficient of static friction is 0.25 between the two blocks and zero between block B and the incline, determine the value of e for which motion is impending, 2. A 40-kg packing crate must be moved to the left along the floor without tipping. Knowing that the coefficient of static...
Answer them in the format of the second image. Steps and neat please. Thank you Problems...
Answer them in the format of
the second image. Steps and neat please. Thank you
Problems 1 through 5 (4 points each - partial credit is possible): Complete the free body diagrams on your answer sheet for the systems shown below. Label each force or couple you add and specify the direction of any force that is not horizontal or vertical to the page. Friction and weight are to be neglected. Do not attempt to enforce equilibrium, except that two-force...
Block 1 (m1 = 5 kg) and block 2 (m2 = 7 kg) are adjacent to...
Block 1 (m1 = 5 kg) and block 2 (m2 = 7 kg) are adjacent to each other on the surface of a table. Block 2 is to the LEFT of block 1. A hand pushes horizontally on block 2 and causes both blocks to move to the right with an acceleration of magnitude 8 m/s2. The coefficient of kinetic friction between the block and the surface equals 0.2. On a sheet of paper, draw the free body diagrams for...
Please help this one 2. Two blocks of mass mį and m2 are stacked as shown...
Please help this one
2. Two blocks of mass mį and m2 are stacked as shown on a frictionless surface. There is friction between the blocks with static friction coefficient us. A horizontal external force F is applied to the top block. o é Draw separate free-body diagrams for both masses according to the standards presented in class. Find an expression for the maximum force F that can be applied and yet the two blocks still move together. (Hint: both...
iui sujdce 2 Block B in the Figure weighs 711 N. The coefficient of static friction...
iui sujdce 2 Block B in the Figure weighs 711 N. The coefficient of static friction between the block and table is 0.25. Assume that the cord between B and the knot is horizontal. Find the maximum weight of block A for which the system will be stationary knot This angle is 30 degrees
solve some parts of question Question 1 (40 points) G 10 ft The weight of the...
solve some parts of question
Question 1 (40 points) G 10 ft The weight of the man is 180 lb. As he climbs the ladder, he stops at the position shown on the figure. The friction at A is He = 0.4. The weight of the ladder is neglected. (i) 10 points: Draw the free body diagram. It is assumed that the contact at B is smooth. (ii) 10 points: State the equation of equilibrium A - 3ft - I...
Block A with mass m is placed on a block B with mass M (Figure 1). The coefficient of static friction between the two blocks surfaces is mu_s. Block B is on a frictionless, horizontal surface. Find the minimal horizontal force F rightarrow necessary to be applied to block B to make block A starting sliding on block B. Include the free-body diagrams you used to determine your answer and explain in detail each reasoning you followed to solve the...
The coefficient of static friction at C is fs = 0.3. Neglect the thickness of the ring. (Figure 1) Part A Determine the largest magnitude of the force F that can be applied to the 6-kg ring, without causing it to slip. Express your answer to three significant figures and include the appropriate units. 0 ÅR O 2 ? Ft Value Units Figure < 1 of 1 > Submit Request Answer Provide Feedback G 30 0.4 m
I need help on #1
1. The 20-N block A and the 30-N block B are supported by an incline that is held in the position shown. Knowing that the coefficient of static friction is 0.25 between the two blocks and zero between block B and the incline, determine the value of e for which motion is impending, 2. A 40-kg packing crate must be moved to the left along the floor without tipping. Knowing that the coefficient of static...
Answer them in the format of
the second image. Steps and neat please. Thank you
Problems 1 through 5 (4 points each - partial credit is possible): Complete the free body diagrams on your answer sheet for the systems shown below. Label each force or couple you add and specify the direction of any force that is not horizontal or vertical to the page. Friction and weight are to be neglected. Do not attempt to enforce equilibrium, except that two-force...
Please help this one
2. Two blocks of mass mį and m2 are stacked as shown on a frictionless surface. There is friction between the blocks with static friction coefficient us. A horizontal external force F is applied to the top block. o é Draw separate free-body diagrams for both masses according to the standards presented in class. Find an expression for the maximum force F that can be applied and yet the two blocks still move together. (Hint: both...
iui sujdce 2 Block B in the Figure weighs 711 N. The coefficient of static friction between the block and table is 0.25. Assume that the cord between B and the knot is horizontal. Find the maximum weight of block A for which the system will be stationary knot This angle is 30 degrees
solve some parts of question
Question 1 (40 points) G 10 ft The weight of the man is 180 lb. As he climbs the ladder, he stops at the position shown on the figure. The friction at A is He = 0.4. The weight of the ladder is neglected. (i) 10 points: Draw the free body diagram. It is assumed that the contact at B is smooth. (ii) 10 points: State the equation of equilibrium A - 3ft - I...
