. Calculate the molar volume of saturated liquid and the molar volume of saturated vapor by...

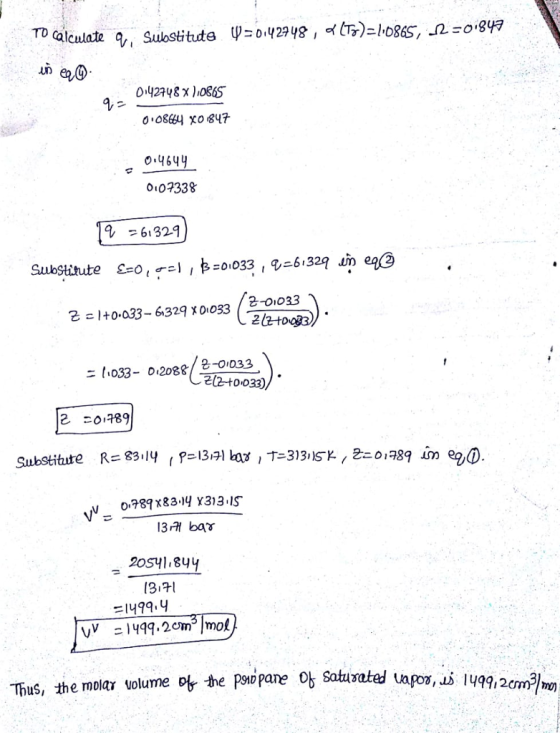

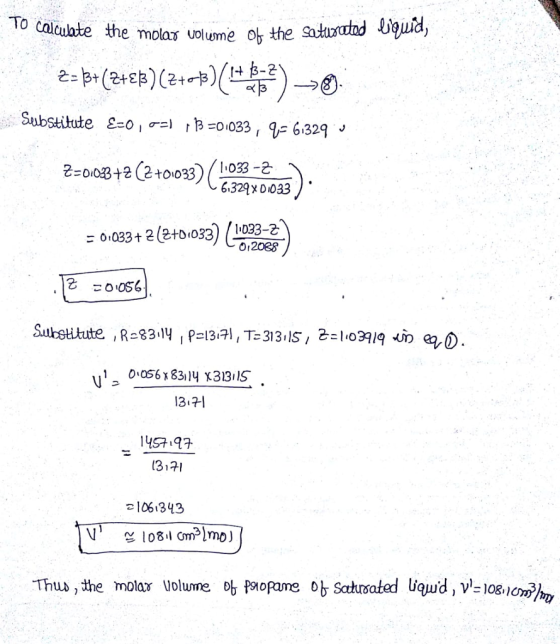

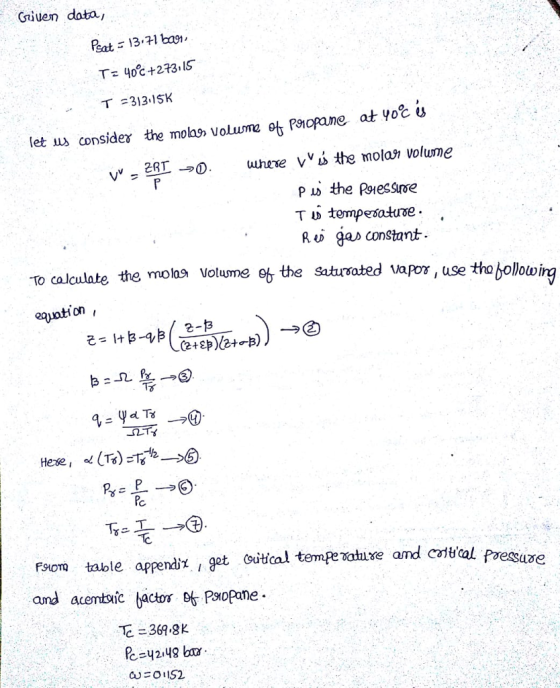

. Calculate the molar volume of saturated liquid and the molar volume of saturated vapor by the Redlich / Kwong equation for Propane at 400C (313.15 K) where P sat = 13.71 bar and compare results with values found by suitable generalized correlations. (Ans. For saturated liquid: Z= 0.057; V = 108.1 cm3/mol; For saturated vapor: Z= 0.789; V = 1499.2 cm3/mol)
Homework Answers
Add Answer to:
. Calculate the molar volume of saturated liquid and the molar
volume of saturated vapor by...
**PLEASE ANSWER ALL SUB-QUESTIONS AND EXPLAIN STEP BY STEP SHOWING ALL ITERATIONS AND WORKING. THANK YOU!** UESTION 4 Calculate the molar volume of saturated liquid and saturated vapour by the Redlic...
**PLEASE ANSWER ALL SUB-QUESTIONS AND EXPLAIN STEP BY STEP
SHOWING ALL ITERATIONS AND WORKING. THANK YOU!**
UESTION 4 Calculate the molar volume of saturated liquid and saturated vapour by the Redlich-Kwong equation of state for propane at 40 °C and P-13.71 bar. Compare the results with values found by suitable generalized correlations In your comparative calculations, use the Rackett equation for liquids & Pitzer correlation for gases Data for Propane Tc- 369.8 K Pc 42.48 bar Ze 0.276 Vc-200 cm3/mol...
1.) Estimate the volume change of vaporization for ammonia at 20ºC. At this temperature, the vapor...
1.) Estimate the volume change of vaporization for ammonia at 20ºC. At this temperature, the vapor pressure of ammonia is 857 kPa. 2.) Consider o-xylene at 240ºC. Determine Z and V (cm3 /mol) when: a.) P = 1 bar (vapor) b.) P = 4 bar (vapor) c.) P = 7.43 bar (saturated vapor) d.) P = 7.43 bar (saturated liquid) 3.) Consider the o-xylene from Problem 2. What is the final volume of the liquid if the saturated liquid at...
P2: Comparison of EOS methods for gases Calculate the molar volume of n-butane at 510K and...
P2: Comparison of EOS methods for gases Calculate the molar volume of n-butane at 510K and 25bar, using the (a) ideal-gas law, (b) the truncated virial equation, and 0 (c) the Pitzer correlation with the Lee-Kesler values for Z and Z For n-butane T 425.1 K, P 37.96 bar, w 0.2 P3: Comparison of cubic EOS Calculate V for sulfur hexafluoride at 75 C and 15 bar by the following equations: (a) The van der waals equation (b) The Redlich/Kwong...
Problem #1 Calculate Z, HR, and SR by the Redlich/Kwong equation for each of the following...
Problem #1 Calculate Z, HR, and SR by the Redlich/Kwong equation for each of the following substances, and compare the results with values found from suitable generalized correlations: a. Benzene at 575 K and 30 bar. b. Ethylene at 300 K and 35 bar. Problem #2 Calculate Z, HR, and SR for benzene at 575K and 20 bar. You can assume that the pressure is low enough to apply the correlation for the second virial coefficient. Problem #3 In a(T)I...
Calculate the vapor pressure of isobutane at 5°C using the Antoine Equation. Calculate the specific volume...
Calculate the vapor pressure of isobutane at 5°C using the Antoine Equation. Calculate the specific volume of the saturated gas and saturated liquid using the generalized compressibility correlations.
State how to calculate the specific volume, internal energy, and enthalpy of a saturated liquid vapor...
State how to calculate the specific volume, internal energy, and enthalpy of a saturated liquid vapor mixture (SLVM).
The molar volume (cm3/mol) of a binary liquid mixture at a (40) specific T and P...
The molar volume (cm3/mol) of a binary liquid mixture at a (40) specific T and P is given by: V = 200x1 + 300x2 + x1 x2 (20x1 + 10x2) (a) Find expressions for the partial molar volumes of species 1 and species 2 at specific T and P (b) Show that the expressions for partial molar volumes follow the summability relation (c) Show that these expressions satisfy the Gibbs/Duhem equation at constant T and P (d) Find the values...
The molar volume (cm3 /mol) of a binary liquid mixture at a specific T and P...
The molar volume (cm3 /mol) of a binary liquid mixture at a specific T and P is given by: V = 200x1 + 300x2 + x1 x2 (20x1 + 10x2) (a) Find expressions for the partial molar volumes of species 1 and species 2 at specific T and P (b) Show that the expressions for partial molar volumes follow the summability relation (c) Show that these expressions satisfy the Gibbs/Duhem equation at constant T and P (d) Find the values...
4. Comparison of process paths: Calculate the AH for 1 kg of water going from liquid...
4. Comparison of process paths: Calculate the AH for 1 kg of water going from liquid at the triple point of water (0.01 °C and 0.0061 bar) to saturated steam (100 °C, 1 atm) by two different process paths. The two paths are defined as a. liquid water at triple point to saturated vapor at the triple point, followed by heating the saturated vapor to 0.0061 bar to saturated vapor at 1 atm. b. liquid water at triple point heated...
**PLEASE ANSWER ALL SUB-QUESTIONS AND EXPLAIN STEP BY STEP
SHOWING ALL ITERATIONS AND WORKING. THANK YOU!**
UESTION 4 Calculate the molar volume of saturated liquid and saturated vapour by the Redlich-Kwong equation of state for propane at 40 °C and P-13.71 bar. Compare the results with values found by suitable generalized correlations In your comparative calculations, use the Rackett equation for liquids & Pitzer correlation for gases Data for Propane Tc- 369.8 K Pc 42.48 bar Ze 0.276 Vc-200 cm3/mol...
P2: Comparison of EOS methods for gases Calculate the molar volume of n-butane at 510K and 25bar, using the (a) ideal-gas law, (b) the truncated virial equation, and 0 (c) the Pitzer correlation with the Lee-Kesler values for Z and Z For n-butane T 425.1 K, P 37.96 bar, w 0.2 P3: Comparison of cubic EOS Calculate V for sulfur hexafluoride at 75 C and 15 bar by the following equations: (a) The van der waals equation (b) The Redlich/Kwong...
Problem #1 Calculate Z, HR, and SR by the Redlich/Kwong equation for each of the following substances, and compare the results with values found from suitable generalized correlations: a. Benzene at 575 K and 30 bar. b. Ethylene at 300 K and 35 bar. Problem #2 Calculate Z, HR, and SR for benzene at 575K and 20 bar. You can assume that the pressure is low enough to apply the correlation for the second virial coefficient. Problem #3 In a(T)I...
4. Comparison of process paths: Calculate the AH for 1 kg of water going from liquid at the triple point of water (0.01 °C and 0.0061 bar) to saturated steam (100 °C, 1 atm) by two different process paths. The two paths are defined as a. liquid water at triple point to saturated vapor at the triple point, followed by heating the saturated vapor to 0.0061 bar to saturated vapor at 1 atm. b. liquid water at triple point heated...
