In transformers relation between ratio of turn and voltage is given by:
Ns/Np = Vs/Vp
Vs = Voltage in secondary side = 9500 V
Vp = Voltage in primary side = 120 V
So,
Ns/Np = 9500/120 = 475/6 = 79.17
OR
Ns : Np = 475 : 6
Please Upvote
Comment below if you've any query.
Add Answer to:
please answer in great detail

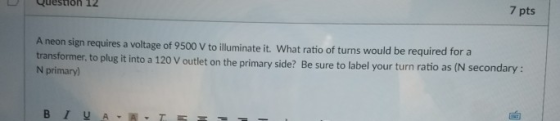

Question 12 7 pts A neon sign requires a voltage of...
32. A neon sign transformer has 450 W AC output with an rms voltage of 15...
32. A neon sign transformer has 450 W AC output with an rms voltage of 15 KV when connected to normal household outlet (120 V). There are 500 turns of wire in the primary coil. (a) How many turns of wire does the secondary coil have? (b) When the transformer is running at full power, what are the currents in the secondary coil and in the primary coil? (c) What is the peak current in the primary coil?
Question 32 (6 points) 32. A neon sign transformer has 450 W AC output with an...
Question 32 (6 points) 32. A neon sign transformer has 450 W AC output with an rms voltage of 15 kV when connected to normal household outlet (120 V). There are 500 turns of wire in the primary coil. (a) How many turns of wire does the secondary coil have? (b) When the transformer is running at full power, what are the currents in the secondary coil and in the primary coil? (c) What is the peak current in the...
A neon sign transformer has a 420W AC output with an rms voltage of 13 kV...
A neon sign transformer has a 420W AC output with an rms voltage of 13 kV when connected to a normal household outlet. There are 500 turns of wire in the primary coil. Part A How many turns of wire does the secondary coil have? ( it is not 48750, 45500n 49636, or 5.0x10^4) Part B How many turns of wire does the secondary coil have? Part C The current in the primary coil?
Please answer asap Problem 6 Your TV's screen uses 4800 (V) of voltage to operate. To...
Please answer asap
Problem 6 Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a step-down transformer?...
Please show any equation manipulation. Problem 6 Your TV's screen uses 4800 (V) of voltage to...
Please show any equation manipulation.
Problem 6 Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a...
please do all part a,b,c,and d Your TV's screen uses 4800 (V) of voltage to operate....
please do all part a,b,c,and
d
Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a step-down...
Please help with BOTH of the following questions for a thumbs up! Thanks! 8. + -/1...
Please help with BOTH of the following questions for a thumbs
up! Thanks!
8. + -/1 points SerPSE 10 32.8.OP.021. My Notes + Ask Your Teach A step-down transformer is used for recharging the batteries of portable electronic devices. The turns ratio N/N, for a particular transformer used in a DVD player is 1:14. When used with 120-V (rms) household service, the transformer draws an rms current of 33.0 mA from the house outlet. (a) Find the rms output voltage...
Solution: 7. (12 pts) A transformer is rated at 480V / 120V, 1.8kVA. Assume the transformer...
Solution:
7. (12 pts) A transformer is rated at 480V / 120V, 1.8kVA. Assume the transformer is ideal and all voltages and currents are RMS. a) What is the current rating of the primary? ww b) What is the current rating of the secondary? ZL = 8 •12 pf := 85.% lagging V l = 100. V c) V := 100.V How big is the source voltage (IVsI)? d) The secondary load (ZL) has a magnitude of 8 22 at...
Please answer this question Q3. The power rating and the voltage ratio of the power transformer...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
need before 12:00 noon central time july 30, 2020 Problem 5 In the image, three very...
need before 12:00 noon central time july 30, 2020
Problem 5 In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire I1 = 10 (A) and second wire 12 = 14 (A) and their directions are shown with black arrows in the image. The value of current 1, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m)...
32. A neon sign transformer has 450 W AC output with an rms voltage of 15 KV when connected to normal household outlet (120 V). There are 500 turns of wire in the primary coil. (a) How many turns of wire does the secondary coil have? (b) When the transformer is running at full power, what are the currents in the secondary coil and in the primary coil? (c) What is the peak current in the primary coil?
Question 32 (6 points) 32. A neon sign transformer has 450 W AC output with an rms voltage of 15 kV when connected to normal household outlet (120 V). There are 500 turns of wire in the primary coil. (a) How many turns of wire does the secondary coil have? (b) When the transformer is running at full power, what are the currents in the secondary coil and in the primary coil? (c) What is the peak current in the...
Please answer asap
Problem 6 Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a step-down transformer?...
Please show any equation manipulation.
Problem 6 Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a...
please do all part a,b,c,and
d
Your TV's screen uses 4800 (V) of voltage to operate. To provide 4800 (V), inside your TV there is a transformer that converts wall outlet of 120 (V) to 4800 (V) reaching to the TV screen. The secondary coil of this transformer has 9200 turns. Your TV's screen connected to secondary coil of transformer uses 240 (W) of power. A) Calculate current in secondary coil. B) Is this transformer a step-up or a step-down...
Please help with BOTH of the following questions for a thumbs
up! Thanks!
8. + -/1 points SerPSE 10 32.8.OP.021. My Notes + Ask Your Teach A step-down transformer is used for recharging the batteries of portable electronic devices. The turns ratio N/N, for a particular transformer used in a DVD player is 1:14. When used with 120-V (rms) household service, the transformer draws an rms current of 33.0 mA from the house outlet. (a) Find the rms output voltage...
Solution:
7. (12 pts) A transformer is rated at 480V / 120V, 1.8kVA. Assume the transformer is ideal and all voltages and currents are RMS. a) What is the current rating of the primary? ww b) What is the current rating of the secondary? ZL = 8 •12 pf := 85.% lagging V l = 100. V c) V := 100.V How big is the source voltage (IVsI)? d) The secondary load (ZL) has a magnitude of 8 22 at...
Please answer this question
Q3. The power rating and the voltage ratio of the power transformer and the CT ratio are show in Fig 3. Determine the transformation turns ratios and the connection of the interposing transformers required in order to set the differential relays, which are provided with taps. Draw the complete three- phase connection schematic diagram and identify the currents in each of the elements. 150/ 5Y 115 Transformer Vector group: Primary secondary: Yd5 Primary.tertiary YO 1151V2SMVA13V SMVA...
need before 12:00 noon central time july 30, 2020
Problem 5 In the image, three very close parallel wires each carrying a current. The magnitude of the current in the first wire I1 = 10 (A) and second wire 12 = 14 (A) and their directions are shown with black arrows in the image. The value of current 1, and its direction are unknown. The magnetic field B due to all three wires at point P which is 4 (m)...
