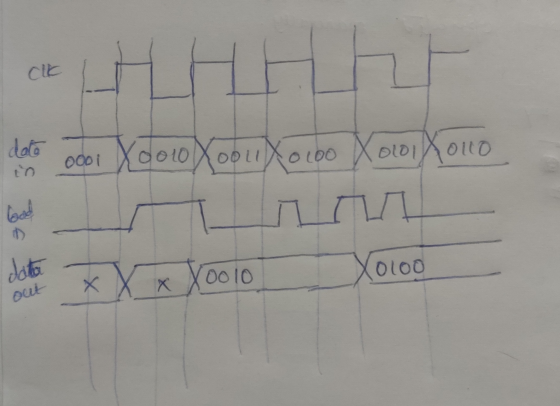

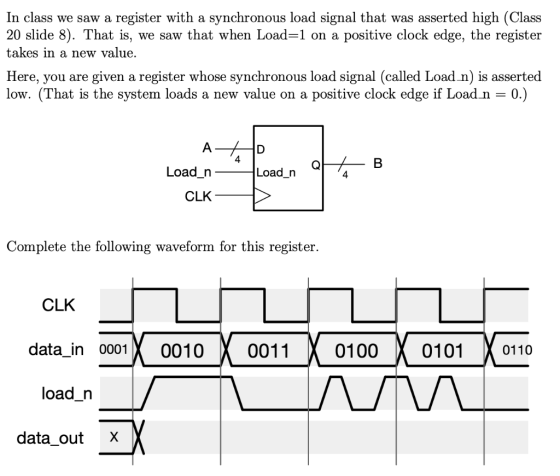

In class we saw a register with a synchronous load signal that was asserted high (Class...
I need help doing the code using Verilog modelsim Design a 32-bit register using the D...
I need help doing the code using Verilog modelsim Design a 32-bit register using the D Flip-Flop from part (1) so that it has the following features: (a) The Register has these ports Outputs: Q[31:0] Inputs: D[31:0] CLK is the clock signal EN is a synchronous signal for enabling the register. When EN is asserted at the sensitive edge of the CLK, the input D is loaded into the register. RESET We will leave this input unconnected, but will define...
Objective: In this lab, we will learn how we can design sequential circuits using behavioral mode...
Just need the code for the
random counter,Thanks
Objective: In this lab, we will learn how we can design sequential circuits using behavioral modelling, and implementing the design in FPGA. Problem: Design a random counter with the following counting sequence: Counting Sequence: 04 2 9 168573 Design Description: The counter has one clock (Clock), one reset (Reset), and one move left or right control signal (L/R) as input. The counter also has one 4bit output O and one 2bit output...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O ...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O D. Non periodic O E. 34/3 A coil (L 5 mH) is parallel connected to two serially connected resistors (6 kΩ and 4 k2). Calculate the time constant of the above two-pole! Select one: Ο Α.0.5s OC. 5 s Ο D. 0.5 με Ο Ε.0.5 Ms Consider the following sequential network: Z2 Di Ct ㄍ洼 S2 Q2 CLK Choose which function does this...
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-typ...
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-type flip-flops. The counter increases its value on each positive edge of the clock if the Enable signal is asserted. The counter is reset to 0 by setting the Clear signal low. You are to implement an 8-bit counter of this type Enable T Q Clock Clear Figure 1. 4-bit synchronous counter (but you need to implement 8-bit counter in this lab) Specific notes:...
Instruction set architecture R: register X, Y, Opl, Op2: Operand Quantity: constant value EA: Effective memory address Opcode Operation Name MOV X, Y XCH Opl, Op2 ADD X, Y SUB X,Y SAL Op, Quantity...
Instruction set architecture R: register X, Y, Opl, Op2: Operand Quantity: constant value EA: Effective memory address Opcode Operation Name MOV X, Y XCH Opl, Op2 ADD X, Y SUB X,Y SAL Op, Quantity SAR Op, Quantity Shift Arithmetic Right on Op for Quantity SHR Op Quanti AND X, Y OR X, Y XOR X, Y NOT X LOADR, A LOAD R, (A STORE R, A STORE R, (A Description Move data from Y to X Exchange Op1 with Op2...
Just need the code for the
random counter,Thanks
Objective: In this lab, we will learn how we can design sequential circuits using behavioral modelling, and implementing the design in FPGA. Problem: Design a random counter with the following counting sequence: Counting Sequence: 04 2 9 168573 Design Description: The counter has one clock (Clock), one reset (Reset), and one move left or right control signal (L/R) as input. The counter also has one 4bit output O and one 2bit output...
Determine the period number of the ufk-4 cos(K+TT/2) discrete time signal! Select one: O A. 34 O D. Non periodic O E. 34/3 A coil (L 5 mH) is parallel connected to two serially connected resistors (6 kΩ and 4 k2). Calculate the time constant of the above two-pole! Select one: Ο Α.0.5s OC. 5 s Ο D. 0.5 με Ο Ε.0.5 Ms Consider the following sequential network: Z2 Di Ct ㄍ洼 S2 Q2 CLK Choose which function does this...
Consider the circuit in Figure 1. It is a 4-bit (QQ2Q3) synchronous counter which uses four T-type flip-flops. The counter increases its value on each positive edge of the clock if the Enable signal is asserted. The counter is reset to 0 by setting the Clear signal low. You are to implement an 8-bit counter of this type Enable T Q Clock Clear Figure 1. 4-bit synchronous counter (but you need to implement 8-bit counter in this lab) Specific notes:...
Instruction set architecture R: register X, Y, Opl, Op2: Operand Quantity: constant value EA: Effective memory address Opcode Operation Name MOV X, Y XCH Opl, Op2 ADD X, Y SUB X,Y SAL Op, Quantity SAR Op, Quantity Shift Arithmetic Right on Op for Quantity SHR Op Quanti AND X, Y OR X, Y XOR X, Y NOT X LOADR, A LOAD R, (A STORE R, A STORE R, (A Description Move data from Y to X Exchange Op1 with Op2...
