Problem 2. For the truss below, identify any zero-force members and determine the internal force in...

Question

Question

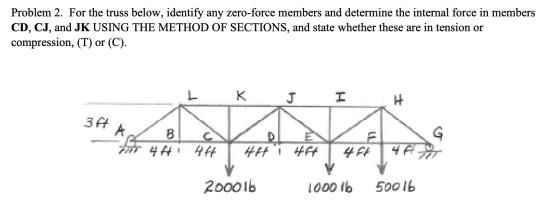

Problem 2. For the truss below, identify any zero-force members and determine the internal force in members CD, CJ, and JK US

engineering Civil-Engineering

Answer 1

Answer #1

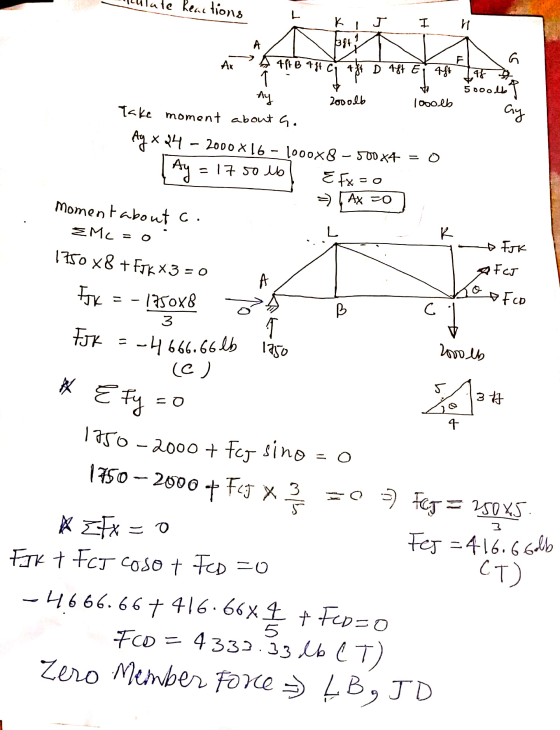

- late Reactions -KiT | n 44ft B 4 ft Ci 42 D 4ff Ei ist to 2000db about G. Itt 5000lb T looolb Take moment Ay x 24 – 2000X16
