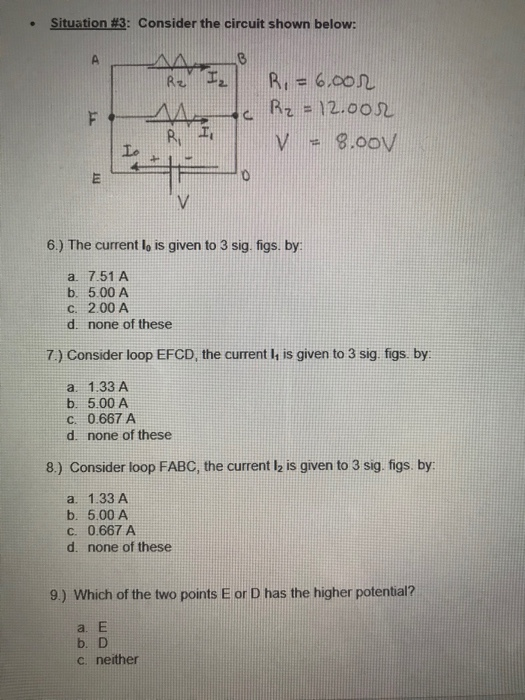

• Situation #3: Consider the circuit shown below: B = 6.002 Rz = 12.002 V -...

Question

Question

science physics

Answer 1

Similar Homework Help Questions

Situation #2: Consider the circuit shown below: V1 = 4.0 V R1 = 8.0 Ω R2...

Situation #2: Consider the circuit shown below: V1 = 4.0 V R1 = 8.0 Ω R2 = 2.0Ω V2 = 12V 3) The current in the 8.0Ω resistor is given by: a. 2.0A b. 6.0A c. 8.0A d. none of these
R1 B Find the total resistance for the resistor circuits shown Treat all resistor values as...

R1 B Find the total resistance for the resistor circuits shown Treat all resistor values as exact and report your final answers to 3 sig figs. 1. Given the circuit shown with 18 ? R3 57 ? R4-44 ? with an ideal voltage source of 5.00 V. Determine: R22 S2 R2 R2 a. The equivalent resistance for the circuit b. The current through each of the resistors. c. The voltage from A to B d. The voltage from Bto C...
please help with this multiple part, single question! Problem 8: Consider a circuit shown in the...

please help with this multiple part, single question! Problem 8: Consider a circuit shown in the figure. Ignore the internal resistances of the batteries. Randomized Variables &1 = 34 V E2 = 12 V R=40 Rz=50 R3 = 32. ولا متاه A 14% Part (a) Express the current I, going through resistor R, in terms of the currents 12 and 13 going through resistors R and R3. Use the direction of the currents as specified in the figure. 1;= HOME...

Consider the circuit shown below. The values of the circuit parameters are R=1 12, R=10 12,...

Consider the circuit shown below. The values of the circuit parameters are R=1 12, R=10 12, Rz=212, R =5 12, EMF,=12 V, and EMF2=5 V. (a) Determine the current in resistor R,. 0.851 A (b) Determine the current in resistor R. 0.851 A (c) Determine the current in resistor Rz. 1.322 A (d) Determine the current in resistor R,. 0.471 A (e) Is the battery EMF, being charged? Explain. No. (f) What is the potential difference between the two junction...
Consider the circuit shown in the figure below. (Let R1 = 4.00, R2 = 7.00, and...

Consider the circuit shown in the figure below. (Let R1 = 4.00, R2 = 7.00, and E = 10.0 V.) 10.0 12 w R2 w 2.00 22 5.00 2 W R w E (a) Find the voltage across R1. (b) Find the current in R1. A
Question 3. Unregulated supply Rz IL Vin IR Ib (a) The circuit on the right shows...

Question 3. Unregulated supply Rz IL Vin IR Ib (a) The circuit on the right shows a series regulator connected to the output of an unregulated power supply. The transistor has B =50, and a 6 volt Zener diode is used. When the load current, Il, is 1 amp the de input voltage from the unregulated supply, Vin, is 11 volt, VBE = 1 volt and the Zener diode current, Iz, is 20 mA. For these conditions, calculate Iz (i)...

I only need help with: "Consider the circuit given in above MCQ. If R2= 2R1, R3...

I only need help with: "Consider the circuit given in above MCQ. If R2= 2R1, R3 = 3R1, and the current in R1 resistor are I1, the current in R3 must be." Two resistors, Rj and R2, are connected in parallel and the combination i:s connected in series with resistor Rz. IfR, - difference is applied to this circuit, the power dissipated is (a) greatest R,. (b) greatest in R2. (c) greatest in R3. (d) The same in all three...
nge 3 (R C C a https t-R 6744 Consider the circuit shown in the figure...

nge 3 (R C C a https t-R 6744 Consider the circuit shown in the figure below. (Let R1 6.00 Ω, R2 8.00 Ω, and ε 12.0 v.) 10.0 Ω 5.00 Ω 2.00 Ω (a) Find the voltage across R (b) Find the current in R1
(50 points) Consider the circuit shown below. The resistance R is 7.00, and E = 25V...

(50 points) Consider the circuit shown below. The resistance R is 7.00, and E = 25V a. Write the loop equation (Kirchoff's law) for the loop cdefc, b. Write the loop equation for the loop cdeac. c. Solve for the currents /1, 12, and 13. d. What is the current through the ammeter? e. What is the voltage read by the voltmeter? 12.0 V *** R 2.0.2 8.0 V 7.00

Consider a causal LTI system implemented as the RL circuit shown below. In this circuit, v(t)...

Consider a causal LTI system implemented as the RL circuit shown below. In this circuit, v(t) is the input voltage. The current i(t) is considered the system output. i(t) R L wwwm v(t) (a) Find the differential equation relating v(t) and i(t). (b) Determine the frequency response of this system (H(jw)). (c) Determine the output it) if v(t) = sin(t), R=10 and L=1. (d) Sketch Bode plot of H (jw) for R=10 and L=1. (e) Determine if the system is...
