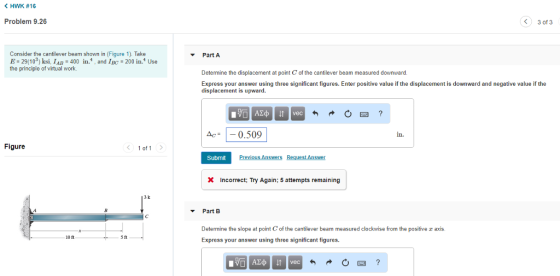

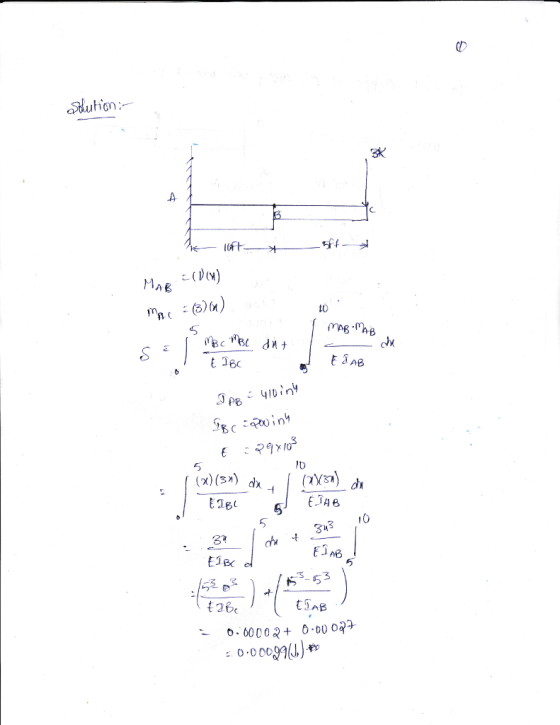

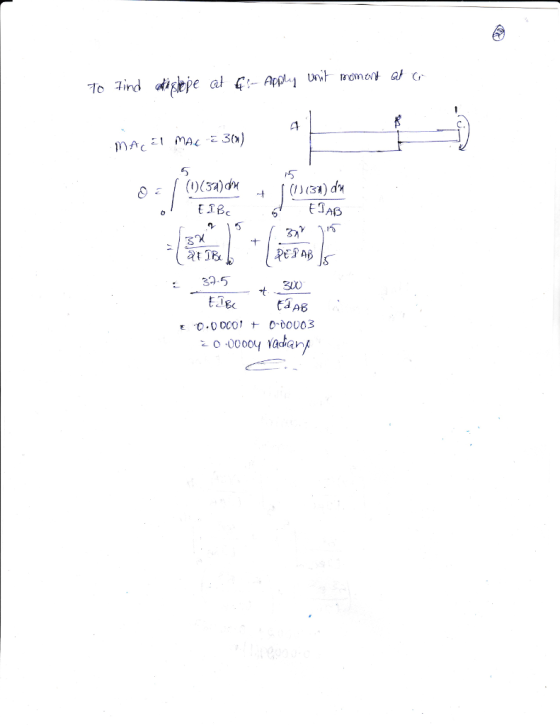

HWK #16 Problem 9.26 3 of 3 Consider the cantilever beam shown in (Figure 1). Take...
Consider the beam shown in (Figure 1). Assume the support at A is a pin and...
Consider the beam shown in (Figure 1). Assume the support at A is a pin and C is a roller. Take E 200 GPa, I 150(106) mm Suppose that w 19 kN/m Figure 1 of 1 TA 2 m 4 m Part B Determine the slope at point B measured clockwise from the positive r axis. Use the method of virtual work Express your answer using three significant figures. rad Part Determine the displacement at point B measured downward. Use...
Consider the cantilever beam shown in (Figure 1). Suppose that I AB = 800(106) mm4, IBC...
Consider the cantilever beam shown in (Figure 1). Suppose that I AB = 800(106) mm4, IBC = 150(106) mm4. Take E = 200 GPa. Figure < 1 of 1 > 12 kN/m 8 kN/m 1AB 2 m B BC lm Part B Determine the displacement at point C measured downward. Use Castigliano's theorem. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is...
SOLVE B AND C USING CASTIGLIANO'S THEOREM Consider the cantilever beam shown in . Suppose that...
SOLVE B AND C USING CASTIGLIANO'S THEOREM
Consider the cantilever beam shown in . Suppose that LAB = 640(106) mm IBC = 150(106) mm". Take E 200 GPa 12 kN/m 8 kN/m موا Inc Part A Part B Determine the displacement at point C measured downward. Use Castigliano's theorem. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is upward. HA ? Ac...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E =...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E = 29(10) ksi and I-206 in Part A Determine the slope at of the beam, measured counterclockwise from the positive r axis. Express your answer using three significant figures and include the appropriate units. 180 A vec RO ? 0 = rad Submit Request Answer Part B Figure 1of1 Determine the deflection of end C. Express your answer using three significant figures and include the...
Consider the beam shown in (Figure 1). Suppose that w = 2.4 k/ft. 2:4-* ( OM")...
Consider the beam shown in (Figure 1). Suppose that w = 2.4 k/ft. 2:4-* ( OM") EI Submit Previous Answers Correct Part B Figure < 1 of 1 > Determine the displacement of point C measured downward. Use the method of virtual work. EI is constant. Assume EI is in k . ft? Express your answer using three significant figures. Enter positive value if the displacement is downward and negative value if the displacement is upward. ALP O vec mo?...
Review Part B Consider the beam shown in (Figure 1). El is constant. Suppose that EI...
Review Part B Consider the beam shown in (Figure 1). El is constant. Suppose that EI is in kNm", and w = 13 kN/m. Determine the slope at point C measured counterclockwise from the positive 3 axis. Use Castigliano's theorem. Express your answer using three significant figures. PO ASC u veca O ? 06 = 6.602 Submit Previous Answers Request Answer Figure < 1 of 1 X Incorrect; Try Again; 6 attempts remaining Part Determine the displacement at point C...
Problem 8.49 Item 7 I Review Consider the L-shaped frame shown in (Figure 1). There is...
Problem 8.49 Item 7 I Review Consider the L-shaped frame shown in (Figure 1). There is a fixed support at A and fixed joint at B. El is constant Assume w = 220 lb/ft, and El is measured in lb. ft”, Part B Use the method of virtual work and determine the horizontal displacement of point C measured leftward. Express your answer using three significant figures. Enter positive value if the displacement is leftward and negative value if the displacement...
Consider the beam shown in Figure 1). Assume the support at A is red and B...
Consider the beam shown in Figure 1). Assume the support at A is red and B is a roller. Take 20(10) ksi and 24k/ft. The moment of inertia for each segment is shown in the figure Determine they component of reaction at A Express your answer using three significant figures. AED Ivec ? Submit Best Am - Part Determine the moment of reaction A Express your answer using three significant figures. Enter positive value of the moment is counterclockwise and...
«Homework #25 Problem 10.1 1 of 3 > Consider the beam shown in (Figure 1). Assume...
«Homework #25 Problem 10.1 1 of 3 > Consider the beam shown in (Figure 1). Assume B is a roller and A and Care fixed. EI is constant Part A Determine the intemal end moment MAB acting on span AB at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. Figure 1 of 1 MAB- Value Units Submit...
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in...
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in (Figure 1) . E. 29(103) ksi. 1#291 in' Determine the expression for the elastic curve using the coordinate for 0 sxs9 ft, where is in feet. Express your answer in terms of . Express your answer using three significant figures. r20 (X)x.10' x Xb 8439000 2.25x0.02778r -40.5 Figure 1 of1 Submit Incorrect; Try Again; 3 attempts remaining 3 kip/ft Part B Determine the maximum...
Consider the beam shown in (Figure 1). Assume the support at A is a pin and C is a roller. Take E 200 GPa, I 150(106) mm Suppose that w 19 kN/m Figure 1 of 1 TA 2 m 4 m Part B Determine the slope at point B measured clockwise from the positive r axis. Use the method of virtual work Express your answer using three significant figures. rad Part Determine the displacement at point B measured downward. Use...
Consider the cantilever beam shown in (Figure 1). Suppose that I AB = 800(106) mm4, IBC = 150(106) mm4. Take E = 200 GPa. Figure < 1 of 1 > 12 kN/m 8 kN/m 1AB 2 m B BC lm Part B Determine the displacement at point C measured downward. Use Castigliano's theorem. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is...
SOLVE B AND C USING CASTIGLIANO'S THEOREM
Consider the cantilever beam shown in . Suppose that LAB = 640(106) mm IBC = 150(106) mm". Take E 200 GPa 12 kN/m 8 kN/m موا Inc Part A Part B Determine the displacement at point C measured downward. Use Castigliano's theorem. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is upward. HA ? Ac...
Problem 12.40 < 2 of 5 Review Consider the beam shown in (Figure 1). E = 29(10) ksi and I-206 in Part A Determine the slope at of the beam, measured counterclockwise from the positive r axis. Express your answer using three significant figures and include the appropriate units. 180 A vec RO ? 0 = rad Submit Request Answer Part B Figure 1of1 Determine the deflection of end C. Express your answer using three significant figures and include the...
Consider the beam shown in (Figure 1). Suppose that w = 2.4 k/ft. 2:4-* ( OM") EI Submit Previous Answers Correct Part B Figure < 1 of 1 > Determine the displacement of point C measured downward. Use the method of virtual work. EI is constant. Assume EI is in k . ft? Express your answer using three significant figures. Enter positive value if the displacement is downward and negative value if the displacement is upward. ALP O vec mo?...
Review Part B Consider the beam shown in (Figure 1). El is constant. Suppose that EI is in kNm", and w = 13 kN/m. Determine the slope at point C measured counterclockwise from the positive 3 axis. Use Castigliano's theorem. Express your answer using three significant figures. PO ASC u veca O ? 06 = 6.602 Submit Previous Answers Request Answer Figure < 1 of 1 X Incorrect; Try Again; 6 attempts remaining Part Determine the displacement at point C...
Problem 8.49 Item 7 I Review Consider the L-shaped frame shown in (Figure 1). There is a fixed support at A and fixed joint at B. El is constant Assume w = 220 lb/ft, and El is measured in lb. ft”, Part B Use the method of virtual work and determine the horizontal displacement of point C measured leftward. Express your answer using three significant figures. Enter positive value if the displacement is leftward and negative value if the displacement...
Consider the beam shown in Figure 1). Assume the support at A is red and B is a roller. Take 20(10) ksi and 24k/ft. The moment of inertia for each segment is shown in the figure Determine they component of reaction at A Express your answer using three significant figures. AED Ivec ? Submit Best Am - Part Determine the moment of reaction A Express your answer using three significant figures. Enter positive value of the moment is counterclockwise and...
«Homework #25 Problem 10.1 1 of 3 > Consider the beam shown in (Figure 1). Assume B is a roller and A and Care fixed. EI is constant Part A Determine the intemal end moment MAB acting on span AB at A measured clockwise. Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. Figure 1 of 1 MAB- Value Units Submit...
Problem 12.22 2 of 3 Review Part A Consider the cantilevered W14 30 beam shown in (Figure 1) . E. 29(103) ksi. 1#291 in' Determine the expression for the elastic curve using the coordinate for 0 sxs9 ft, where is in feet. Express your answer in terms of . Express your answer using three significant figures. r20 (X)x.10' x Xb 8439000 2.25x0.02778r -40.5 Figure 1 of1 Submit Incorrect; Try Again; 3 attempts remaining 3 kip/ft Part B Determine the maximum...
