Question
Please complete a,b,c,d show all work and explain please

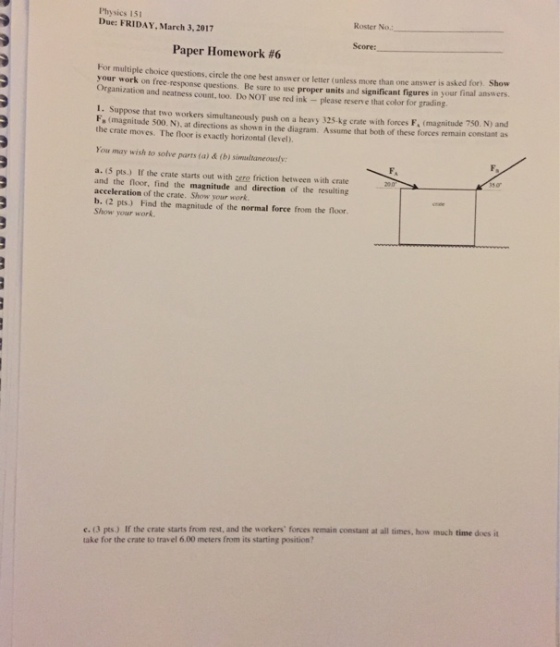

Physics 15 Due: FRIDAY 3, 2017 arch Roster No. Paper Homework #6 For multiple choice questions. circle the one best answer or letter (unless more than one answer is asked for your work on free response questions. Be sure to use proper units and significant figures in your final answers. organization and neatness count, too. Do NOT use red please reserve that color for grading. 1. Suppose that two workers simultaneously push on a heavy 325 kg crate with forces F. (magnitude 750. N) and R (magnitude 500. N), at directions as shown in the diagram. Assume that both of these forces remain constant as the crate moves. The floor is exactly horizontal (level). ou may wish to solve parts (b) simulaneously: (a) a. (5 pts.) If the crate starts out with zero friction between with crate and the floor, find the magnitude and direction of the resulting acceleration of the crate. Show your work. b. (2 pts. Find the magnitude of the normal force from the floor. Show your work. c. (3 pts.) If the crate starts from rest, and the workers forces remain constant at all times, how much time does it take for the crate to travel 6.00 meters from its starting position?
media%2F357%2F3576a917-4f94-416a-a9ee-cf
0 0
Add a comment Improve this question Transcribed image text
Answer #1

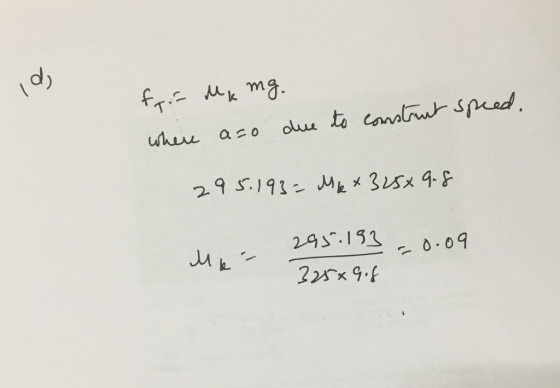

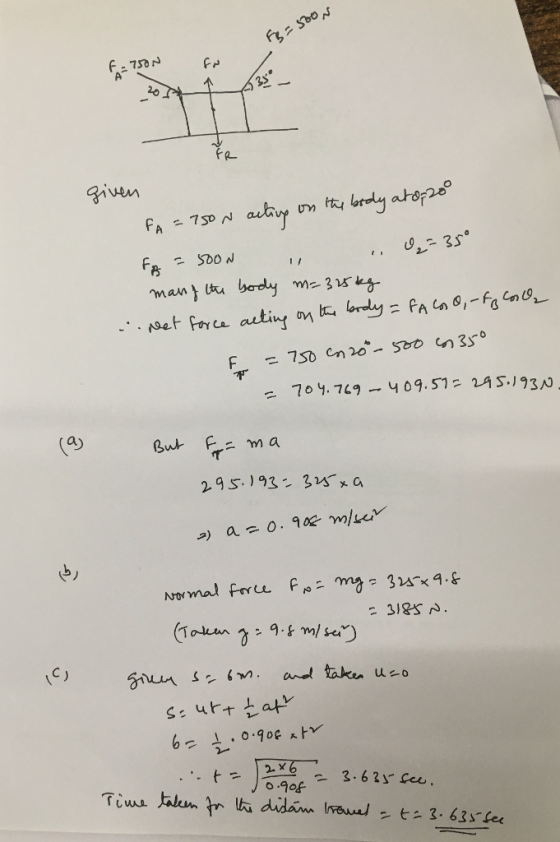

d) 29.131 22x 9. li20 ivem F 500 7 o y, 749-4 09, 51-2A 5-1 93,0 = 1C)

Add a comment
