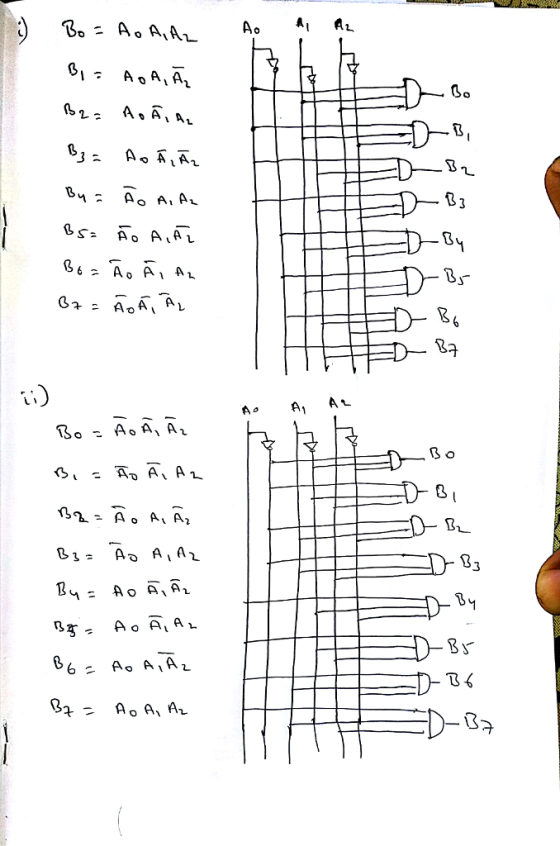

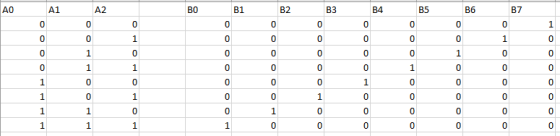

(i) Here is a truth table for a boolean function with input Ax and output Bx. Using only AND,OR,NOT gates construct a boolean circut.
(ii) If we invert the outputs as seen below what does this circuit accomplish, assumiung the same inputs.
Homework Answers
Add Answer to:
(i) Here is a truth table for a boolean function with input Ax
and output Bx....
(a) The truth table below shows a certain function F(P,Q,R,S). Implement the function F using an 8:1 multiplexer, withou...
(a) The truth table below shows a certain function
F(P,Q,R,S).
Implement the function F using an 8:1 multiplexer, without any
other logic gate. Only the constants 0 and 1, and the literals (but
not their complements) are available.
Fill in the inputs in the multiplexer diagram.
(b). Implement the function F
using a 24 decoder and a 4:1 multiplexer, and at most one logic
gate. Only the constants 0 and 1, and the literals (but not their
complements) are available....
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the l...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
Can you use Multisim or something similar. I got the truth table and design, but having...
Can you use Multisim or something similar. I got the truth table
and design, but having a hard time with the actual wiring.
I need to see where each cable and light bulb go.
3.4. Multiplexer Multiplexers are very useful components in digital systems. They transfer a large number of information units over a smaller number of channels, (usually one channel) under the control of selection signals. Fig. 3 is a 4-line to l-line MUX. In this circuit, lo, 11, 12,...
This was the answer I got, teacher said it was wrong Teacher said, couldnt run the...
This was the answer I got, teacher said it was wrong
Teacher said, couldnt run the gate because there wasnt any
switches
5. Design and test a simplified logic circuit to identify all numbers in the output range of function: F(x) = 2x+3 for an input domain between 0 and 6. Be sure to include your truth table. Normal 1 No Spac... Heading 1 Head Paragraph Styles t Draw Simulate View Window Help 39 ) ) 11:55 1 esu.desire2learn.com Boolean...
(a) The truth table below shows a certain function
F(P,Q,R,S).
Implement the function F using an 8:1 multiplexer, without any
other logic gate. Only the constants 0 and 1, and the literals (but
not their complements) are available.
Fill in the inputs in the multiplexer diagram.
(b). Implement the function F
using a 24 decoder and a 4:1 multiplexer, and at most one logic
gate. Only the constants 0 and 1, and the literals (but not their
complements) are available....
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
Can you use Multisim or something similar. I got the truth table
and design, but having a hard time with the actual wiring.
I need to see where each cable and light bulb go.
3.4. Multiplexer Multiplexers are very useful components in digital systems. They transfer a large number of information units over a smaller number of channels, (usually one channel) under the control of selection signals. Fig. 3 is a 4-line to l-line MUX. In this circuit, lo, 11, 12,...
This was the answer I got, teacher said it was wrong
Teacher said, couldnt run the gate because there wasnt any
switches
5. Design and test a simplified logic circuit to identify all numbers in the output range of function: F(x) = 2x+3 for an input domain between 0 and 6. Be sure to include your truth table. Normal 1 No Spac... Heading 1 Head Paragraph Styles t Draw Simulate View Window Help 39 ) ) 11:55 1 esu.desire2learn.com Boolean...
