A beam of protons moves in a circle of radius 0.19 m. The protons move perpendicular...

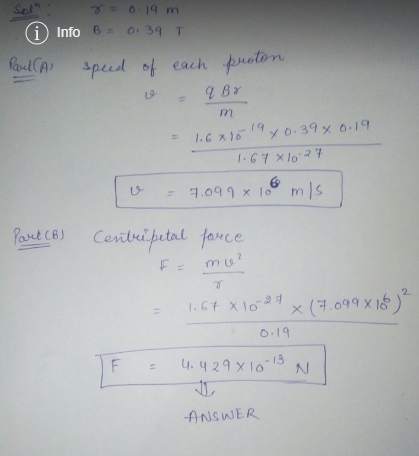

A beam of protons moves in a circle of radius 0.19 m. The protons move perpendicular to a 0.39-T magnetic field. (a) What is the speed of each proton? (b) Determine the magnitude of the centripetal force that acts on each proton.
Homework Answers
Add Answer to:
A beam of protons moves in a circle of radius 0.19 m. The
protons move perpendicular...
4. A beam of protons moves in a circle of radius 0.3 T magnetic field. (a)...
4. A beam of protons moves in a circle of radius 0.3 T magnetic field. (a) What is the speed of each proton? (b) Determine the c frequency of the protons. (c) Determine the magnitude of the centripetal force on each proton. 0.25 m. The beam moves perpendicular to a yclotron
Protons move at a speed of 3.00 x 107 m/s in a plane perpendicular to a...
Protons move at a speed of 3.00 x 107 m/s in a plane perpendicular to a magnetic field. If the protons move in a circle 50 cm in diameter, What is the magnitude of the magnetic field?
A proton moves in a circular orbit 150 mm in radius that is perpendicular to a...
A proton moves in a circular orbit 150 mm in radius that is perpendicular to a uniform 0.25 T magnetic field. a. What is the speed of the proton? b. How long does it take for the proton to move once in a circle? c. Would the radius increase or decrease if the proton were heavier? d. Would the radius increase or decrease if the magnetic field were larger? e. Does the speed change if the proton were negatively charged?...
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of...
Protons move clockwise around a circular path of radius 27 cm in
a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x
10^-19 C. What is the magnitude of the momentum of the protons and
which direction is the magnetic field pointing?
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude...
A proton moves at a speed of 1155 m/s in a direction perpendicular to a magnetic...
A proton moves at a speed of 1155 m/s in a direction perpendicular to a magnetic field with a magnitude of 0.71 T. What is the magnitude of the magnetic force on the proton?
***only the first question should be solved*** Paper 27 Magnetism 1. Find the magnetic field at...
***only the first question should be
solved***
Paper 27 Magnetism 1. Find the magnetic field at the point O, if the current is I A and R-20 cm. 100 2. The two long straight wires each carry a current of 1-5 A in opposite directions and are separated by a distance d 30 cm. Find the magnetic field a distance 1- 20 cm to the right of t wire on the right. 3. A single-turn, circular loop of radius 10...
In a certain cyclotron a proton moves in a circle of radius 0.380 m. The magnitude...
In a certain cyclotron a proton moves in a circle of radius 0.380 m. The magnitude of the magnetic field is 1.80 T. (a) What is the oscillator frequency (in Hz)? (b) What is the kinetic energy (in eV) of the proton?
2. In Figure 2, a beam of protons moves through a uniform magnetic field with magnitude...
2. In Figure 2, a beam of protons moves through a uniform magnetic field with magnitude 1.3 T, directed along the positive z axis. The protons have a velocity of magnitude 10ʻ m/s in the x-z plane at an angle of 30° to the positive z axis. Find the force (F) on a proton. Find the radius of the orbital of this charge. The charge of the proton is q=1.6x10-19 C. The mass of the proton is 1.67x10-27 kg. (40...
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of...
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude of the momentum of the protons and which direction is the magnetic field pointing? 1.1 x 10^-20 kg-m/s, into the plane of the circle 1.1 x 10^-20 kg-m/s, out of the plane of the circle O 0.54 x 10^-20 kg-m/s, out of the plane of the circle...
In a certain cyclotron a proton moves in a circle of radius 0.660 m. The magnitude...
In a certain cyclotron a proton moves in a circle of radius 0.660 m. The magnitude of the magnetic field is 1.00 T. What is the oscillator frequency? What is the kinetic energy of the proton? Number Number Units Units
4. A beam of protons moves in a circle of radius 0.3 T magnetic field. (a) What is the speed of each proton? (b) Determine the c frequency of the protons. (c) Determine the magnitude of the centripetal force on each proton. 0.25 m. The beam moves perpendicular to a yclotron
Protons move clockwise around a circular path of radius 27 cm in
a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x
10^-19 C. What is the magnitude of the momentum of the protons and
which direction is the magnetic field pointing?
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude...
***only the first question should be
solved***
Paper 27 Magnetism 1. Find the magnetic field at the point O, if the current is I A and R-20 cm. 100 2. The two long straight wires each carry a current of 1-5 A in opposite directions and are separated by a distance d 30 cm. Find the magnetic field a distance 1- 20 cm to the right of t wire on the right. 3. A single-turn, circular loop of radius 10...
2. In Figure 2, a beam of protons moves through a uniform magnetic field with magnitude 1.3 T, directed along the positive z axis. The protons have a velocity of magnitude 10ʻ m/s in the x-z plane at an angle of 30° to the positive z axis. Find the force (F) on a proton. Find the radius of the orbital of this charge. The charge of the proton is q=1.6x10-19 C. The mass of the proton is 1.67x10-27 kg. (40...
Protons move clockwise around a circular path of radius 27 cm in a magnetic field of magnitude B = 0.25 T. Proton has a charge 1.6 x 10^-19 C. What is the magnitude of the momentum of the protons and which direction is the magnetic field pointing? 1.1 x 10^-20 kg-m/s, into the plane of the circle 1.1 x 10^-20 kg-m/s, out of the plane of the circle O 0.54 x 10^-20 kg-m/s, out of the plane of the circle...
In a certain cyclotron a proton moves in a circle of radius 0.660 m. The magnitude of the magnetic field is 1.00 T. What is the oscillator frequency? What is the kinetic energy of the proton? Number Number Units Units
