a convex spherical surface of radius of curvature +50mm separates air from glass of refractive index...
a convex spherical surface of radius of curvature +50mm separates air from glass of refractive index 1.6. a parallel pencil of ray in air is incidents on this surface. Find where the refracted pencil comes to a focus in the glass.
Homework Answers

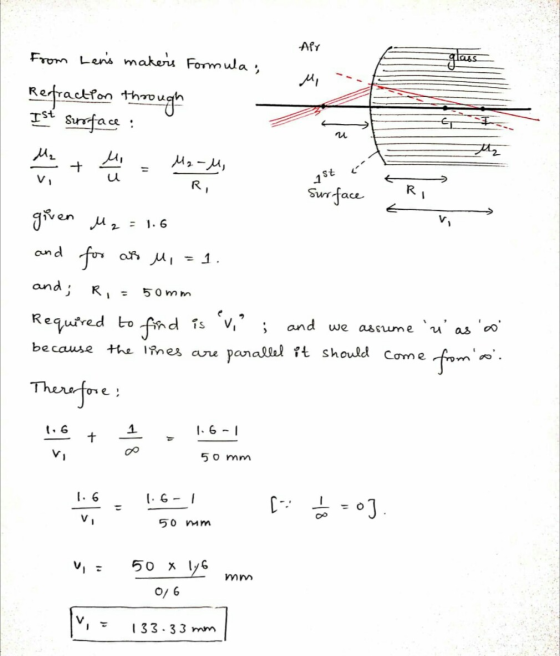

We can find the distance from the surface to the focus of the pencil rays using lens makers formula ; which is described below :
There fore the refracted pencil of rays comes into focus at 133.33 mm from the pole of the spherical surface.
Thank you !!!
