Homework Answers
First we will find number of turns,
N = n*L
where n = 1 / 7.8e-3
n = 128
N = 128*2.6 = 333 turns
Now, L (Inductance) = uo*N2*A / Length
L = 4*PI*10-7*333*333*7.0685E-4 / 2.6
L = 3.788e-5 H
L/m = 3.788e-5 / 2.6
L/m = 1.45e-5 H/m
Add Answer to:

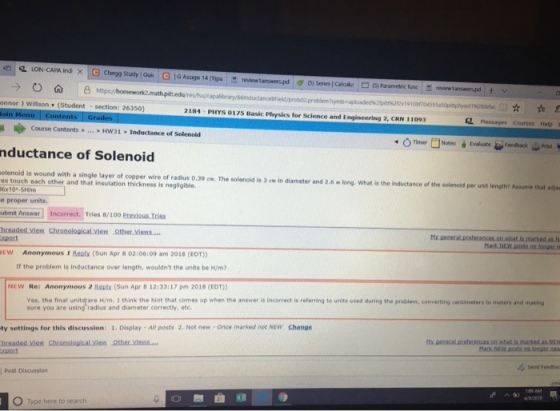

ind × Timer Notes Inductance of Solenoid sure you are radius and diameter correctly, etc. O...
