Homework Answers

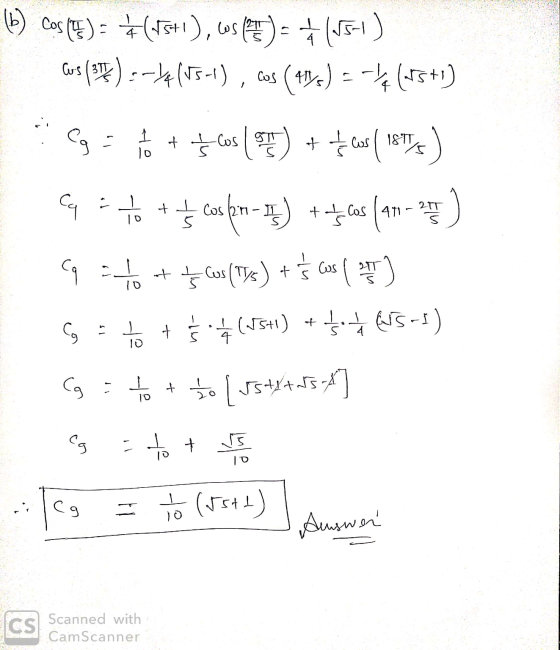

![jǝuue sue 47!M pəuues S이 pomemor (T) Cg 하 al J 잎 우 Cg . 하 Cg S } So St. s(Tx) SOO [F-sg+rss ] + (IS) * (5) + P : 5 Jg TC , (u](http://img.homeworklib.com/questions/ba905910-fe00-11eb-8aeb-8513fbe2c1c8.png?x-oss-process=image/resize,w_560)

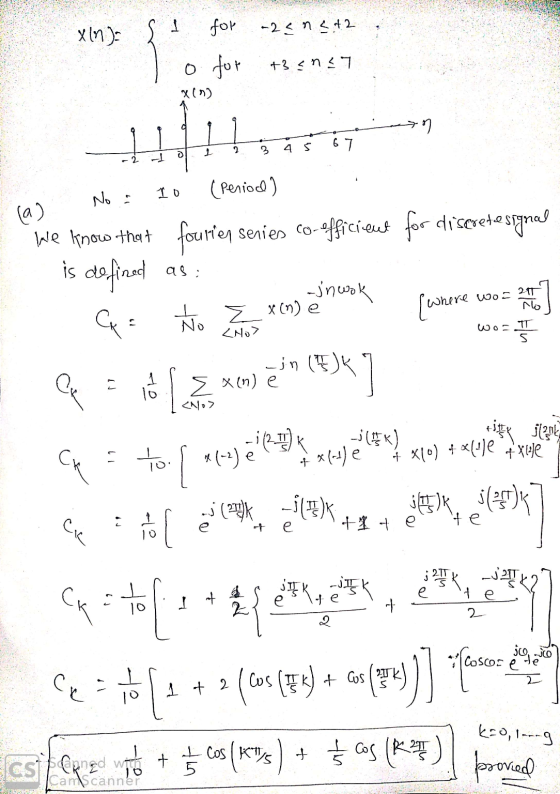

Dear
students I hope it will help you. Please don't forget to give
thumbs up. Thank you
Add Answer to:

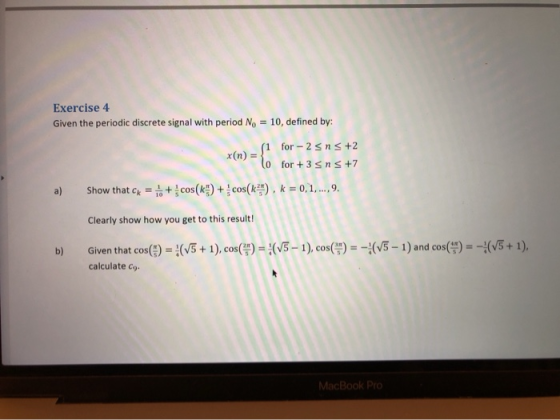

Exercise 4 Given the periodic discrete signal with period No = 10, defined by: x(n) =...
