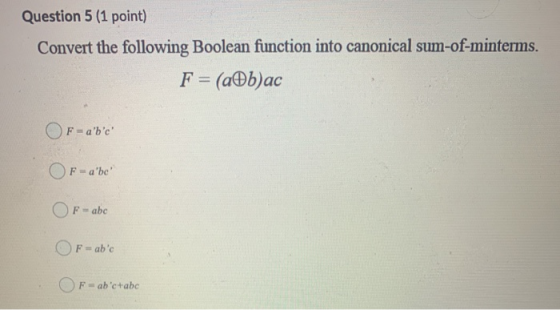

Question 5 (1 point) Convert the following Boolean function into canonical sum-of-minterms. F = (a b)ac...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

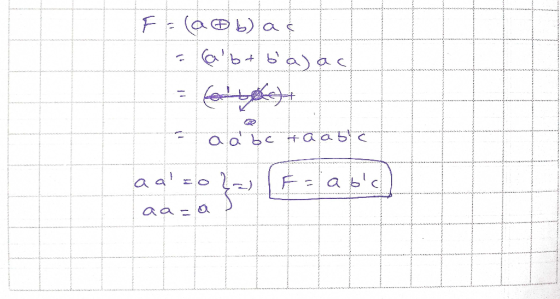

F= (ab) at = (ab+ba) ac - ааЪe aaь с a azola Fabs aa=a?

Answer 2

Similar Homework Help Questions

Convert the following Boolean equation to canonical sum-of-minterms form: F(a,b,c) = b'c' Convert the following Boolean...

Convert the following Boolean equation to canonical sum-of-minterms form: F(a,b,c) = b'c' Convert the following Boolean equation to canonical sum-of-minterms form: F(a,b,c) = abc' + a'c
What is the sum-of-products expression for the following function. F(a,b,c)=∑m(1,2,3,5,7) Which one of the following choices...

What is the sum-of-products expression for the following function. F(a,b,c)=∑m(1,2,3,5,7) Which one of the following choices shown below is the correct answer? A.) a'b'c'+a'b'c+ab'c+abc B.) a'b'c+a'bc'+a'bc+ab'c+abc C.) a'b'c+ab'c'+ab'c+abc D.) a'b'c'+a'b'c+ab'c'+ab'c E.) a'b'c'+a'b'c+a'bc+ab'c'+ab'c+abc F.) a'b'c'+a'b'c+a'bc'+ab'c'+ab'c+abc
