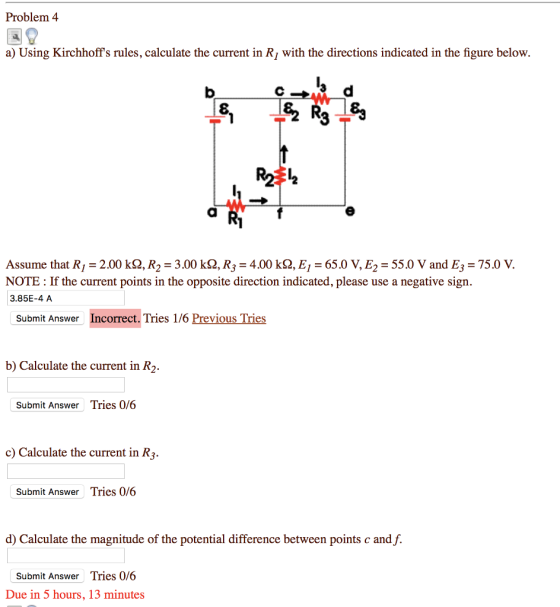

Problem 4 a) Using Kirchhoffs rules, calculate the current in R1 with the directions indicated in...

Question

Question

science physics

Answer 1

Answer #1

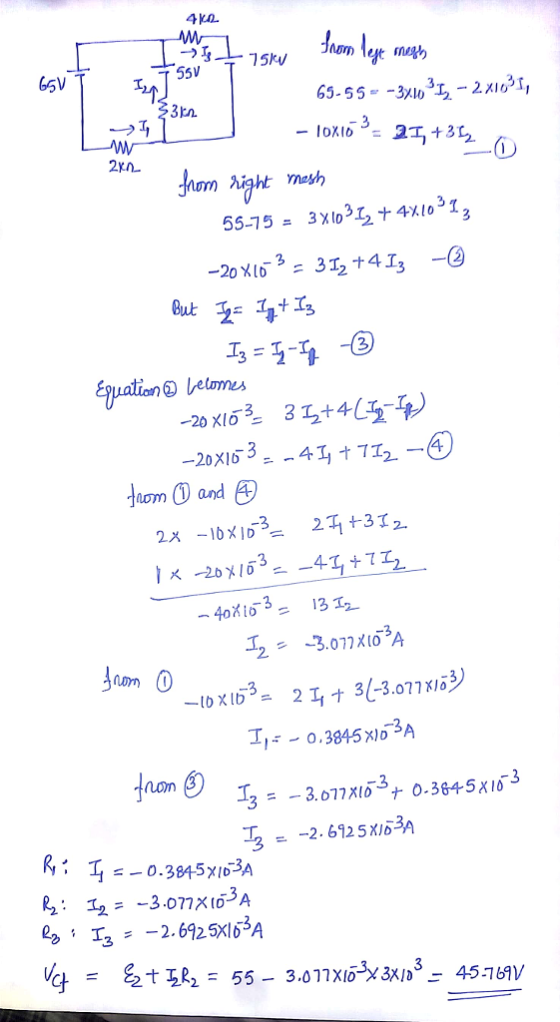

4K0. 65V 55V 1 3En. →子 2xA hight mash 55-75= 3xlo312ナAX10313 -20 *t-3=35+413-6 tom O and D 一40X153-1312- 0.3845 o3A LOn 2.612

Answer 2

Similar Homework Help Questions

Using Kirchhoff's rules, calculate the current in R1 with the directions indicated in the figure below....

Using Kirchhoff's rules, calculate the current in R1 with the directions indicated in the figure below. Assume that R1 = 1.00 kohm, R2 = 3.00 kohm, R3 = 5.00 kohm, E1 = 75.0 V, E2 = 60.0 V and E3= 90.0 V. Calculate the current in R2. Calculate the current in R3 Find the magnitude of the potential difference between points c and f.
Calculate the value of I1 2 and 3 for the circuit with the directions as indicated...

Calculate the value of I1 2 and 3 for the circuit with the directions as indicated in the figure below. Assume that R1 = 4.00 ohm, R2 = 10.0 ohm, R3 = 10.0 ohm, V1 = 3.00 V, V2 = 13.0 V and V3 = 8.00 V. R 2 3 R 2 LANr_p P
R2 R, Q2. In the above circuit, Vs1 = 11 V, Vs2 = 22 V, R1...

R2 R, Q2. In the above circuit, Vs1 = 11 V, Vs2 = 22 V, R1 = 4 Ohm, R2 = 9 Ohm, R3 = 5.5 Ohm, R4 = 5 Ohm, R5 = 2.5 Ohm, R6 = 6 Ohm. B. Using mesh analysis, answer the following questions (Q2.2) Find the current through the resistor R1 in the direction from left to right. (Unit: A) Submit Answer Tries 0/3 (Q2.3) Find the current through the resistor R2 in the direction from...

A capacitor network and Kirchhoffs rules. Four capacitors are connected between points a and b. The...

A capacitor network and Kirchhoffs rules. Four capacitors are connected between points a and b. The potential difference ε induced between two points by a battery as shown in Fig. 3. Their capacitors are C11 pF, C2 2 pF, C 3 pF, and C4-4 pF. Rank the capacitors according to the potential difference across them from smallest to largest. Answer: Note: Answer should include >, or'ぐor '-', for example, Δ Vi < Δ ,2-Δ ,3 < Δ V4, where Δ...
Ev Notes Timer Home Work #6 » Current through R1 Course Contents ... What is the magnitude of the current through R1? D...

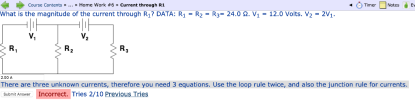

Ev Notes Timer Home Work #6 » Current through R1 Course Contents ... What is the magnitude of the current through R1? DATA: R1 = R2 = R3= 24.0 2. Vi = 12.0 Volts. V2 = 2V1. V, R3 R2 >R1 2.00 A There are three unknown currents, therefore you need 3 equations. Use the loop rule twice, and also the junction rule for currents. Incorrect. Tries 2/10 Previous Tries Submit Answer Ev Notes Timer Home Work #6 » Current...
Consider the electric circuit shown in the figure. Assume that V = 21.4 V, R1 =...

Consider the electric circuit shown in the figure. Assume that V = 21.4 V, R1 = R2 = R3 = R4 = R5 = 3.00 2. R , R2 R3 RA RS What is the equivalent resistance of the circuit? Submit Answer Tries 0/12 What is the electric current flowing through resistor R2? Submit Answer Tries 0/12

Circuit Part A Determine the magnitude of the current through resistor R3, shown in the figure...

Circuit Part A Determine the magnitude of the current through resistor R3, shown in the figure below. The batteries have emfs of -9.00 V and E2-12.00 V and the resistors have values of R1 16.4 Ω , R,-21.7 Ω, and R3 329 Ω Ri 61 Submit Answer Tries 0/6 Part B Determine the magnitude of the current through resistor R1 Submit Answer Tries 0/6 Part C Determine the magnitude of the current through resistor R2. Submit Answer Tries 0/6
Problem 6 Using Kirchhoff's rules, find the following. (& = 71.0 V, E = 60.2 V,...

Problem 6 Using Kirchhoff's rules, find the following. (& = 71.0 V, E = 60.2 V, and E3 = 79.2 V.) 4.00 k12 b d w E E, R3 C 89 Rg } 3.00 k12 2.00 k12 a R (a) the current in each resistor shown in the figure above (b) the potential difference between points c and f (c) which point, corf, is at the higher potential?
A number of resistors of values R1 = 20.0 2, R2 - 16.0 2, and R3...

A number of resistors of values R1 = 20.0 2, R2 - 16.0 2, and R3 - 68.0 2 are connected as shown in the figure. R, sorrir un nüm BOWWWWWW R R R LW RI What is the resistance between points A and B? Submit Answer Tries 0/10 IF VAB - 125.0 V, what is the current flowing between points C and D? Submit Answer Tries 0/10

Find equations using Kirchhoffs laws to solve the currents in each branch of the following circuit....

Find equations using Kirchhoffs laws to solve the currents in each branch of the following circuit. Show all the important steps required in finding the equations. Solve the equations to calculate the currents.You are allowed to use any valid method to solve the equations.Consider ε1 = 20 V, ε2 = 10.0 V, ε3 = 20 V, R1 = 4.0 Ω, R2 = 10.0 Ω, R3 = 10.0 Ω, R4 = 4.0 Ω. R4 ww R2 E & E2 w w...
