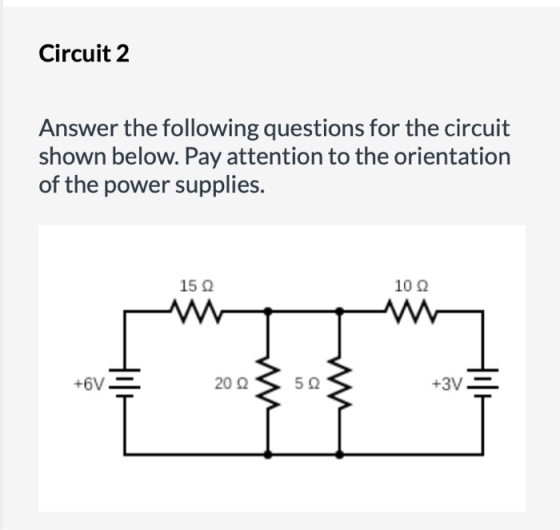

find the current, including its direction, through the 20 ohm resistor. please show all work Circuit...

Question

Question

find the current, including its direction, through the 20 ohm resistor. please show all work

science physics

Answer 1

Answer #1

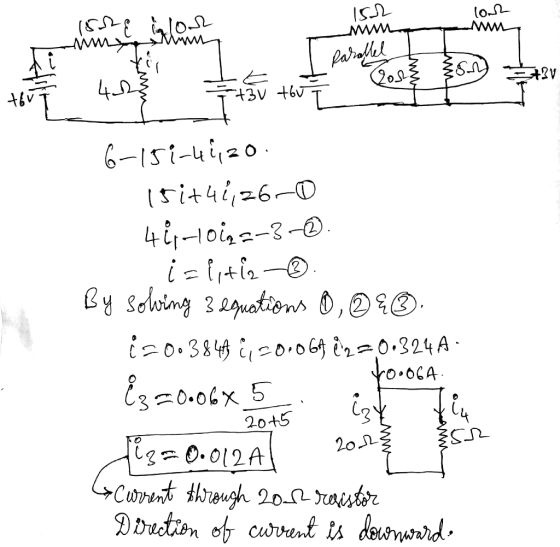

15.2 ore you 2033 354 3V lor ww t +30 t6u Parallel 45 6-151-46,20 151741, 26-0 44-10222-3-② i= litla By solving 3 equations 0

Answer 2

Similar Homework Help Questions

answer Q8/// What is the value of the current passing through the 2 Ohm resistor of...

answer Q8/// What is the value of the current passing through the 2 Ohm resistor of the ? circuit below 6V 20 40 w 102 w 12 V w 502 3 A 1122 A 0 1.333 A 0 leave question o 2.455 A O 0.443 2.333 A O
Q8/// What is the value of the current passing through the 2 Ohm resistor ?of the...

Q8/// What is the value of the current passing through the 2 Ohm resistor ?of the circuit below 6 V 222 492 102 12 V w 532 ЗА 2.455 A O 2.333 A leave question 1.333 A 1.122 A O 0.443 أخرى: Q6ll/ What is the value of the voltage * ?v in the circuit below 2A 692 522 492 V 12 V 312 12 12 19 V Current source Voltage source 20 v O 15.124 v 16.111 v O...
Find the magnitude and direction of the current through resistor R in the circuit shown if...

Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 ΩΩ and V=13 V. What is the direction of the current through resistor R? Find the magnitude and direction of the current through resistor R in the circuit shown if R=57 Ω and V-13 V 85 Ω 15 V 151 Ω Answer: Choose... What is the direction of the current through resistor R? Select one: O down O up O can't tell

SHOW ALL THE WORK Find the total resistance of the circuit. Find the current through the...

SHOW ALL THE WORK Find the total resistance of the circuit. Find the current through the 5 k Ohm resistor. R = _________
Find the magnitude and direction of the current through resistor R in the circuit shown if...

Find the magnitude and direction of the current through resistor R in the circuit shown if R 74 Ω and V 15 V 85 Ω 15 V 151 Ω Answer Choose... What is the direction of the current through resistor R? Select one: down up can't tell
what is the current going through the 2 ohm resistor 8. What is the current through...

what is the current going through the 2 ohm resistor 8. What is the current through the 2-12 resistor? 3.0 V 20 0 측 9.0V 60 0 b 바 a 40 0 3) For the circuit shown in the figure, calculate (6 points) a) Current in each resistor b) Voltage dropped at each resistor c) Power consumed at each resistor. 25Ω 구 58V 3.0V: 120Ω 74Ω 56Ω 110Ω

Help. Explain AND answer w diagram please What is the current through the 1-Ohm resistor in...

Help. Explain AND answer w diagram please What is the current through the 1-Ohm resistor in this circuit?
6. DETAILS What is the current through the 40 ohm resistor? 4022 100 V W 2022...

6. DETAILS What is the current through the 40 ohm resistor? 4022 100 V W 2022 WW2 202 2.00 A 1.25 A 12.5 A OOOO 5.00 A 2.50 A Show My Work (Optional) Submit Answer
Please Show all steps Find the current through each resistor. Let I_1 be the current through...

Please Show all steps Find the current through each resistor. Let I_1 be the current through 2.00 kOhm I_2 through the 3.00 kOhm resistor and I_3 through the 4k Ohm resistor.

Find the current I_1 in the 1.4 Ohm resistor at the bottom of the circuit between...

Find the current I_1 in the 1.4 Ohm resistor at the bottom of the circuit between the two power supplies. Answer in units of A. Determine I_2. Answer in units of A. Determine I_3. Answer in units of A.
