Need help, can you show all steps! Much appreciated!
Homework Answers

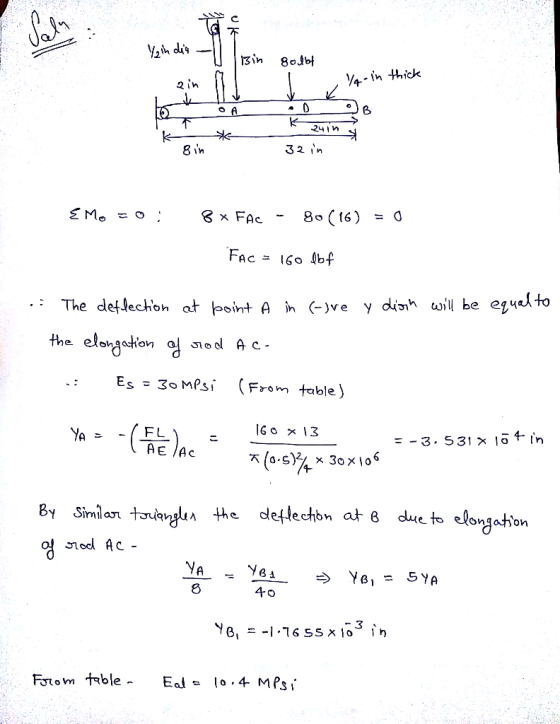

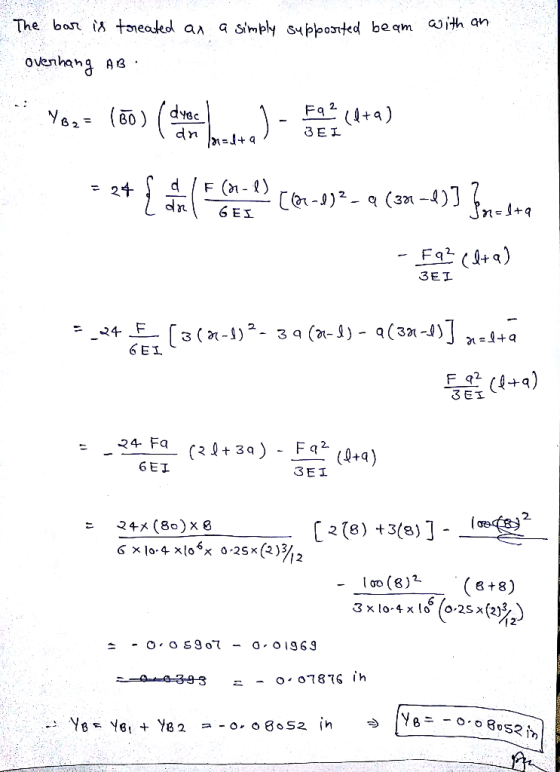

![Y3c %2- (80 6EI 2. (2 () t3(8) ] - (8)2 8 + 8)](http://img.homeworklib.com/questions/b15ec6b0-fee5-11eb-b2f2-97a841775c57.png?x-oss-process=image/resize,w_560)
Add Answer to:
Need help, can you show all steps! Much appreciated!

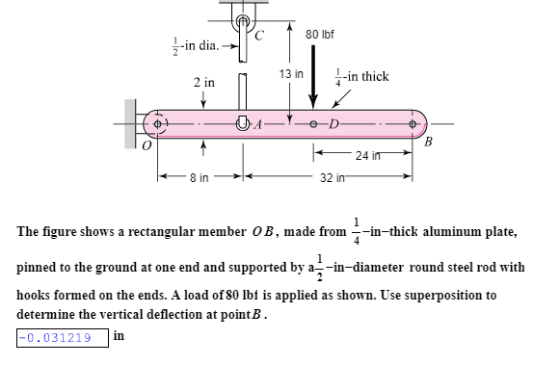

80 lbf -in dia 13 in -in...
-in dia.. 95 lbf 16 in 2 in -in thick -A 5 in 18 in The...
-in dia.. 95 lbf 16 in 2 in -in thick -A 5 in 18 in The figure shows a rectangular member o B, made from 4-in-thick aluminum plate, pinned to the ground at one end and supported by a-in-diameter round steel rod with hooks formed on the ends. A load of 95 lbf is applied as shown. Use superposition to
The figure shows a rectangular member OB, made from 1⁄4-in-thick aluminum plate, pinned to the gr...
The figure shows a rectangular member OB, made from 1⁄4-in-thick
aluminum plate, pinned to the ground at one end and supported by a
1/3-in-diameter round steel rod with hooks formed on the ends. A
load of 80 lbf is applied as shown. Use Castigliano’s Theorem to
determine the vertical deflection at point C, midway between points
A and B. Aluminum: E = 10 Mpsi, Steel: E = 30 Mpsi.
v
The figure shows a rectangular member OB, made from ¼-in-thick...
The figure shows a rectangular member OB, made from ¼-in-thick aluminum plate, pinned to the grou...
The figure shows a rectangular member OB, made from ¼-in-thick aluminum plate, pinned to the ground at one end and supported by a 1/3-in-diameter round steel rod with hooks formed on the ends. A load of 80 lbf is applied as shown. Use Castigliano's Theorem to determine the vertical deflection at point C, midway between points A and B. Aluminum: E 10 Mpsi, Steel: E 30 Mpsi. L-in dia. lbf 12 in L-in thick 2 in -A 6 in 12...
Problem 3. An aluminum beam is shown in the figure with a rectangular cross section. The...
Problem 3. An aluminum beam is shown in the figure with a rectangular cross section. The beam is pinned to the ground at one end and supported by a round steel rod with hooks formed on the ends. Use Castigliano's method to find deflection at point B. T 100 lbf 7-in dia. 12 in 2 in 1-in thick B . 04_P0-—. 7 in 12 in — 6 in
Please show all work and steps. Any help will be appreciated and thank you for your...
Please show all work and steps. Any help will be appreciated and
thank you for your time!
Pinned End UIL Fixed End 18 ft Brace|| Brace 18 ft 54 ft Bracell Brace 18 ft Fixed End Pinned End I Weak-axis buckling Cross-section Strong-axis buckling 0.5 inch I 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis...
Properties for all problems Sut = 80 ksi, 5= 60 ksi, Sf = 40 ksi, q=0.85...
Properties for all problems Sut = 80 ksi, 5= 60 ksi, Sf = 40 ksi, q=0.85 (notch sensitivity), steel E = 30e6 psi Remember we use Modified-Goodman for all calculations Problem 1 A 1-inch diameter rod that is 8 inches long has a bearing at one end and another bearing at 6 inches (treat bearings as simple supports). A vertical load is applied at the end of the overhanging rod and a torque is transmitted through the length of the...
-in dia.. 95 lbf 16 in 2 in -in thick -A 5 in 18 in The figure shows a rectangular member o B, made from 4-in-thick aluminum plate, pinned to the ground at one end and supported by a-in-diameter round steel rod with hooks formed on the ends. A load of 95 lbf is applied as shown. Use superposition to
The figure shows a rectangular member OB, made from 1⁄4-in-thick
aluminum plate, pinned to the ground at one end and supported by a
1/3-in-diameter round steel rod with hooks formed on the ends. A
load of 80 lbf is applied as shown. Use Castigliano’s Theorem to
determine the vertical deflection at point C, midway between points
A and B. Aluminum: E = 10 Mpsi, Steel: E = 30 Mpsi.
v
The figure shows a rectangular member OB, made from ¼-in-thick...
The figure shows a rectangular member OB, made from ¼-in-thick aluminum plate, pinned to the ground at one end and supported by a 1/3-in-diameter round steel rod with hooks formed on the ends. A load of 80 lbf is applied as shown. Use Castigliano's Theorem to determine the vertical deflection at point C, midway between points A and B. Aluminum: E 10 Mpsi, Steel: E 30 Mpsi. L-in dia. lbf 12 in L-in thick 2 in -A 6 in 12...
Problem 3. An aluminum beam is shown in the figure with a rectangular cross section. The beam is pinned to the ground at one end and supported by a round steel rod with hooks formed on the ends. Use Castigliano's method to find deflection at point B. T 100 lbf 7-in dia. 12 in 2 in 1-in thick B . 04_P0-—. 7 in 12 in — 6 in
Please show all work and steps. Any help will be appreciated and
thank you for your time!
Pinned End UIL Fixed End 18 ft Brace|| Brace 18 ft 54 ft Bracell Brace 18 ft Fixed End Pinned End I Weak-axis buckling Cross-section Strong-axis buckling 0.5 inch I 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis...
Properties for all problems Sut = 80 ksi, 5= 60 ksi, Sf = 40 ksi, q=0.85 (notch sensitivity), steel E = 30e6 psi Remember we use Modified-Goodman for all calculations Problem 1 A 1-inch diameter rod that is 8 inches long has a bearing at one end and another bearing at 6 inches (treat bearings as simple supports). A vertical load is applied at the end of the overhanging rod and a torque is transmitted through the length of the...
