If F1 stands for a force vector of magnitude 30.0 N and is parallel to +x axis and F2 stands for a force vector


If F1 stands for a force vector of magnitude 30.0 N and is parallel to +x axis and F2 stands for a force vector of magnitude 40.0N making an angle of 60 degrees with the +x axis what is the magnitude of the resultant obtained by the vector addition of these two vectors using the analytical method?

science   physics
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

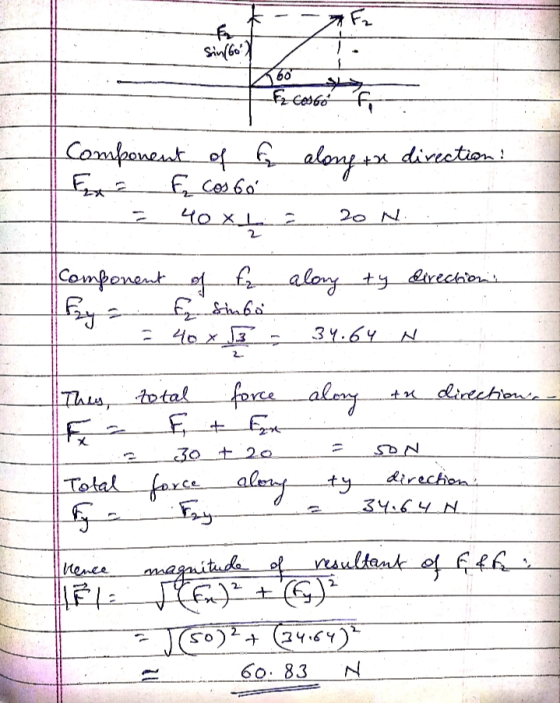

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
If F1 stands for a force vector of magnitude 30.0 N and is parallel to +x axis and F2 stands for a force vector
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • FRis the sum (resultant) force vector of two force vectors of F1 and F2. We know...

    FRis the sum (resultant) force vector of two force vectors of F1 and F2. We know that F1 = 26 i + 25 j. Also,  FR makes an angle of 27 deg with the positive x axis, and the magnitude of the resultant force is FR = 21.4 N. What is the magnitude of force F2? a. 10.2 N b. 14.5 N c. 22.3 N d.16.8 N Part 2: What is the angle of F2 in the previous question? a. 4.29...

  • A force F1 of magnitude 6.90 units acts at the origin in a direction 40.0° above...

    A force F1 of magnitude 6.90 units acts at the origin in a direction 40.0° above the positive x axis. A second force F2 of magnitude 5.00 units acts at the origin in the direction of the positive y axis. Find graphically the magnitude and direction of the resultant force F1 + F2. magnitude units direction ° counterclockwise from the +x axis An illustration shows a square wooden crate, on which two force vectors, vector F1 and vector F2 are...

  • Given a force vector F1=42.2N, at 29 degrees with respect to the x axis and a...

    Given a force vector F1=42.2N, at 29 degrees with respect to the x axis and a second vector force F2=12.4N, at 8 degrees with respect to the x axis the resultant of these 2 forces makes an angle of: A) 190.3 degrees with respect to the x axis; B) 42.4 degrees with respect to the x axis; C) 78.6 degrees with respect to the y axis; D) 17.9 degrees with respect to the x axis;

  • Vector subtraction F1 - F2 can be considered as a special vector addition, namely, F1 - F2 = F1 +...

    Vector subtraction F1 - F2 can be considered as a special vector addition, namely, F1 - F2 = F1 + (-F2). Suppose that the cases of vector addition 1 and 2 in this experiment were vector subtraction F1 - F2. In which quadrant would the resultant vector be in each case? 3. Vector subtraction can be considered as a special vector addition, namely, -R = A + (-A) . Suppose that the cases of vector addition 1 and 2 in...

  • Given a force vector F1=0.3kg⋅9.81ms2, at 59 degrees with respect to the x axis and a...

    Given a force vector F1=0.3kg⋅9.81ms2, at 59 degrees with respect to the x axis and a second vector force F2=0.2kg⋅9.81ms2, at 18 degrees with respect to the x axis the resultant of these 2 forces has a magnitude of: A) 2.9N; B) 120.8N; C) 52.0N; D) 4.6N;

  • If F1 = 850 N , F2 = 640 N , determine the magnitude of the resultant force.

    If F1 = 850 N , F2 = 640 N , determine the magnitude of the resultant force.Determine the direction of the resultant force measured counterclockwise from the positive x axis.

  • Two forces, F1 of magnitude 35 newtons (N) and F2 of magnitude 55 newtons

    Solve the problem. Two forces, F1 of magnitude 35 newtons (N) and F2 of magnitude 55 newtons, act on an object at angles of 45° and -60° (respectively) with the positive x-axis. Find the direction and magnitude of the resultant force; that is, find F1+F2. Round the direction and magnitude to two decimal places.

  • Suppose that F1 = 400 N. Part A Determine the magnitude of the resultant F'=F1 + F2.

    Suppose that F1 = 400 N.Part A Determine the magnitude of the resultant F'=F1 + F2. Part B Determine the direction of the resultant force  F'=F1 + F2, measured  counterclockwise from the positive x axis. Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3. measured counterclockwise from the positive x axis.

  • A) If F1 = 820 N , F2 = 650 N , determine the magnitude of...

    A) If F1 = 820 N , F2 = 650 N , determine the magnitude of the resultant force. B) Determine the direction of the resultant force measured counterclockwise from the positive x-axis. B) Determine the direction of the resultant force measured counterclockwise from the positive x-axis. The question gives me 30 degrees. Can someone give me a step by step process of how to solve this question?

  • Two forces, F1 and F2, act at a point

    Two forces, F1 and F2, act at a point. F1 has a magnitude of 8.20 N and is directed at an angle of 61.0° above, the negative x axis in the second quadrant. F2 has a magnitude of 5.60 N and is directed at an angle of 53.4° below the negative x axis in the third quadrant.Part A What is the x component of the resultant force? Part B   What is the y component of the resultant force? Part C   What is the...
