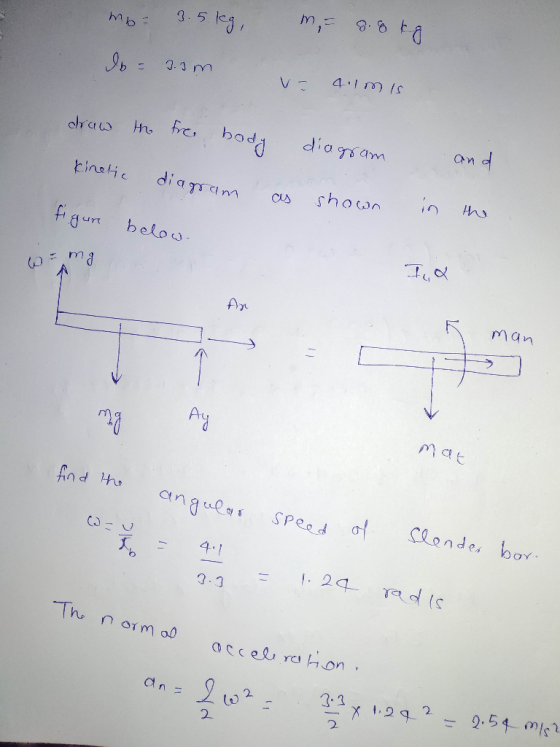

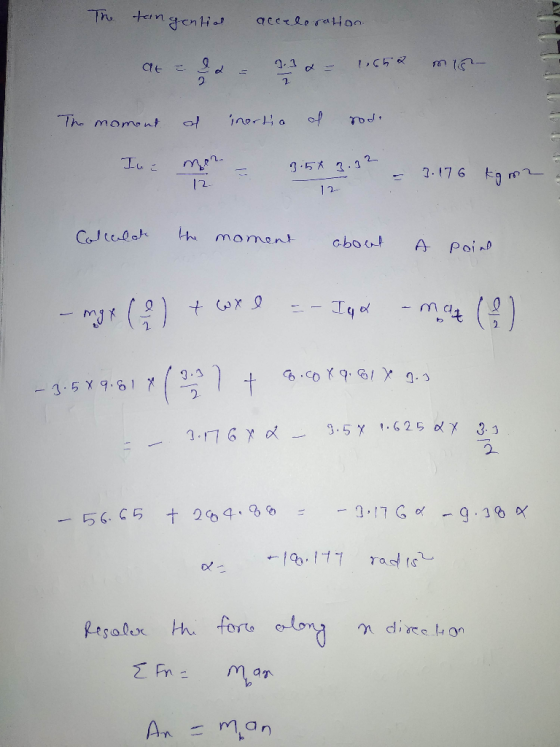

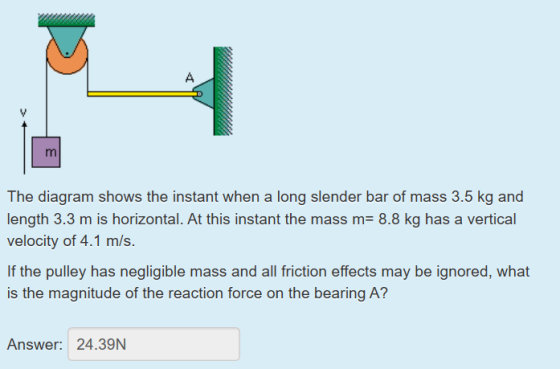

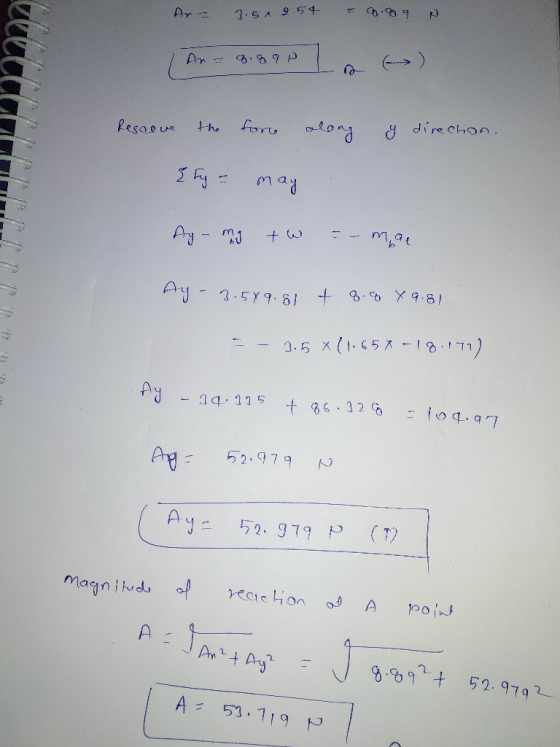

The diagram shows the instant when a long slender bar of mass
3.5 kg and length 3.3 m is horizontal. At this instant the mass m=
8.8 kg has a vertical velocity of 4.1 m/s. If the pulley has
negligible mass and all friction effects may be ignored, what is
the magnitude of the reaction force on the bearing A?
Homework Answers
Add Answer to:
The diagram shows the instant when a long slender bar of mass
3.5 kg and length...
include free body diagram . [18 pts] A uniform long slender bar of mass m 6.8...
include free body diagram
. [18 pts] A uniform long slender bar of mass m 6.8 kg and length0.9 m is attached at one of its ends (A) to a horizontal rope while its other end (B) slides without friction on the floor. For the instant when the bar is released from rest in the configuration shown (where θ 45 degrees): (a) Develop expressions for a and ay, the accelerations of the bar's centre of mass in the along with...
A uniform slender bar of mass M = 3.2 kg and length L = 1.78 m...
A uniform slender bar of mass M = 3.2 kg and length L = 1.78 m is translating on the smooth horizontal x-y plane with a velocity vm= 1.80 m/s when a particle of mass m = 0.36 kg traveling with a velocity Vm=5.52 m/s as shown strikes and becomes embedded in the bar. Determine the final linear velocity of the center of mass of the system and the angular velocity of the bar with its embedded particle. 3L 4...
The 10 kg uniform slender bar is pinned at A to the collar, which has an upward acceleration a = 4 m/s along the vertical shaft.
The 10 kg uniform slender bar is pinned at A to the collar, which has an upward acceleration a = 4 m/s along the vertical shaft. If the bar has an angular velocity ω = 3 rad/s as it swings past the horizontal position, determine the magnitude of the reaction at A for this instant.Ans: 43.8 N
Find the forces acting on the bar when in this position. lce anwel last aid use BOTH angles A slender bar, AB, has a 5.10 kg mass, and a 2.40 m length. Point A on the bar is in er end with a smoot...
Find the forces acting on the bar when in this
position.
lce anwel last aid use BOTH angles A slender bar, AB, has a 5.10 kg mass, and a 2.40 m length. Point A on the bar is in er end with a smooth, incline tilted at an angle of 77.0° with res of the bar at B is in contact with a smooth, horizontal floor. When With respect to the floor, the magnitude of the angular velocity about the...
3. A uniform, slender bar of mass M= 20.0 kg has length L- 35 Determine the...
3. A uniform, slender bar of mass M= 20.0 kg has length L- 35 Determine the gravitational force it exerts on the point particle of mass m2.00 g shown below and z 5.00 cm.
5. A slender rod (mass 1 kg, length L m) is placed vertically on a horizontal rough surface, as shown. The upper end of...
5. A slender rod (mass 1 kg, length L m) is placed vertically on a horizontal rough surface, as shown. The upper end of the rod is tapped lightly, so that it starts falling. Due to friction, its lower end does not slip. When θ 450 with respect to the vertical, show that the normal force N 3.14 N (pointed up) and that the friction force f0.64 N (pointed to the right). Justify results with appropriate diagrams, equations and calculations....
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane...
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane as shown. If the angular velocity is constant at 5 rad/s, determine the components of the reactions at the hinge
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form...
The 600 mm long homogeneous slender bar OA has a mass of 8 kg and is supported in the horizontal position by the cable at A and the corner hinge at O
The 600 mm long homogeneous slender bar OA has a mass of 8 kg and is supported in the horizontal position by the cable at A and the corner hinge at O. The cable at A is suddenly released. Just before hitting the incline, the bar has an angular velocity of ω= 5 rad / sec. Calculate the angle θ. Neglect the curvature of the path of the bar mass center when the bar is falling and assume that the...
The sliders A and B are connected by a light rigid bar of length l =...
The sliders A and B are connected by a light
rigid bar of length l = 0.37 m and move with negligible
friction in the slots, both of which lie in a horizontal plane. For
the position where xA = 0.29 m, the velocity of
A is vA = 0.84 m/s to the right.
Determine the acceleration of each slider and the force in the bar
at this instant. The acceleration of A is positive if to
the right. The...
The uniform slender bar of mass 8 kg is translating to the left at the speed...
The uniform slender bar of mass 8 kg is translating to the left at the speed vi = 5 m/s when the small roller at A hits the end of the slot. The length of the bar AB is 0.8 m. Assume no rebound. A V B Click Save and Submit to save and submit. Click Save All Answers to see all answers 99. Remaining Time: 1 hour, 02 minutes, 17 seconds. Question Completion Status: B 1. Draw impulse and...
include free body diagram
. [18 pts] A uniform long slender bar of mass m 6.8 kg and length0.9 m is attached at one of its ends (A) to a horizontal rope while its other end (B) slides without friction on the floor. For the instant when the bar is released from rest in the configuration shown (where θ 45 degrees): (a) Develop expressions for a and ay, the accelerations of the bar's centre of mass in the along with...
A uniform slender bar of mass M = 3.2 kg and length L = 1.78 m is translating on the smooth horizontal x-y plane with a velocity vm= 1.80 m/s when a particle of mass m = 0.36 kg traveling with a velocity Vm=5.52 m/s as shown strikes and becomes embedded in the bar. Determine the final linear velocity of the center of mass of the system and the angular velocity of the bar with its embedded particle. 3L 4...
Find the forces acting on the bar when in this
position.
lce anwel last aid use BOTH angles A slender bar, AB, has a 5.10 kg mass, and a 2.40 m length. Point A on the bar is in er end with a smooth, incline tilted at an angle of 77.0° with res of the bar at B is in contact with a smooth, horizontal floor. When With respect to the floor, the magnitude of the angular velocity about the...
3. A uniform, slender bar of mass M= 20.0 kg has length L- 35 Determine the gravitational force it exerts on the point particle of mass m2.00 g shown below and z 5.00 cm.
5. A slender rod (mass 1 kg, length L m) is placed vertically on a horizontal rough surface, as shown. The upper end of the rod is tapped lightly, so that it starts falling. Due to friction, its lower end does not slip. When θ 450 with respect to the vertical, show that the normal force N 3.14 N (pointed up) and that the friction force f0.64 N (pointed to the right). Justify results with appropriate diagrams, equations and calculations....
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form the equilateral triangular object supported at a hinge in a vertical plane as shown. If the angular velocity is constant at 5 rad/s, determine the components of the reactions at the hinge
Prob. 4 Consider a slender uniform homogeneous bar of total length 1.5 m and mass 4.5 kg that is bent and welded to form...
The sliders A and B are connected by a light
rigid bar of length l = 0.37 m and move with negligible
friction in the slots, both of which lie in a horizontal plane. For
the position where xA = 0.29 m, the velocity of
A is vA = 0.84 m/s to the right.
Determine the acceleration of each slider and the force in the bar
at this instant. The acceleration of A is positive if to
the right. The...
The uniform slender bar of mass 8 kg is translating to the left at the speed vi = 5 m/s when the small roller at A hits the end of the slot. The length of the bar AB is 0.8 m. Assume no rebound. A V B Click Save and Submit to save and submit. Click Save All Answers to see all answers 99. Remaining Time: 1 hour, 02 minutes, 17 seconds. Question Completion Status: B 1. Draw impulse and...
