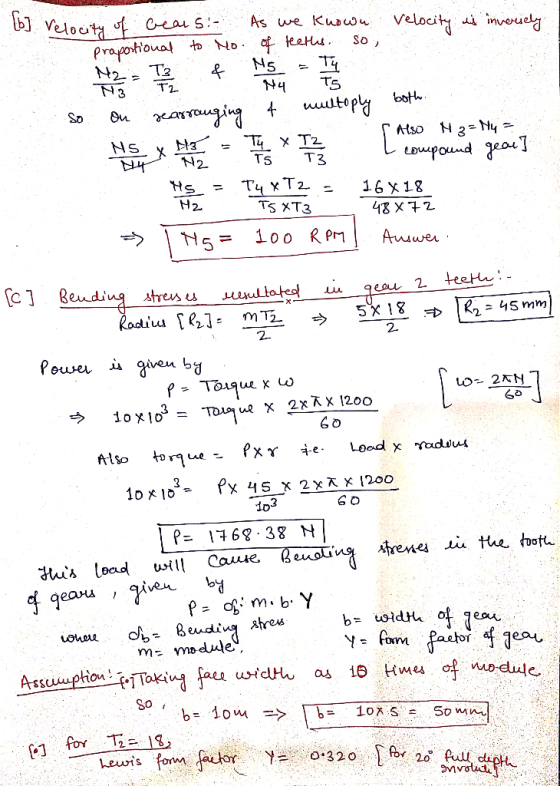

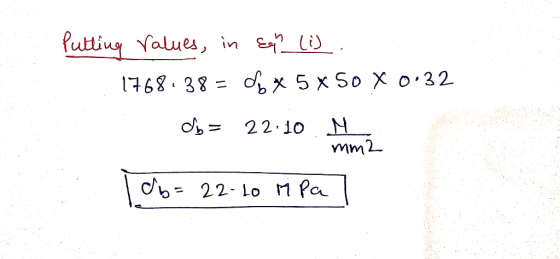

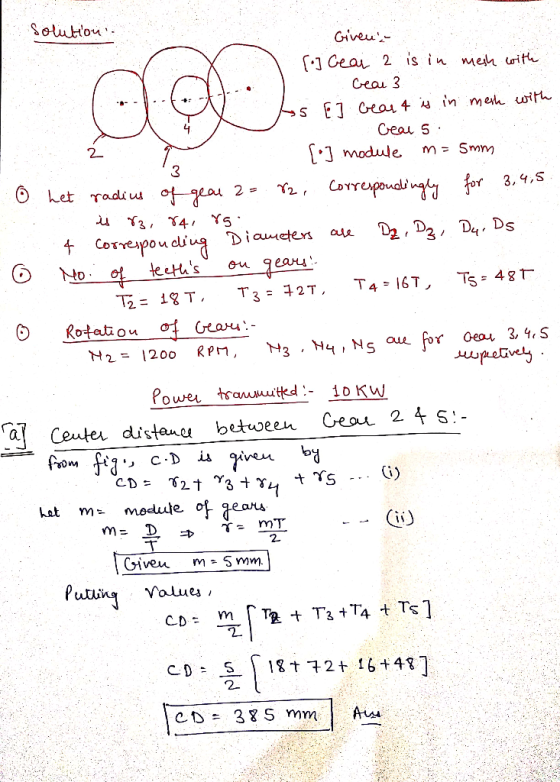

![Ceau 3 Ceau S [.] module m= Smm het radiu 3, 4,S 0 H2 = 1200 Rpm, N al Ceute. distan-U between Ceou 24s 2 Values , 2.](http://img.homeworklib.com/questions/a8a61060-ff06-11eb-ba6b-5d61fa6accf9.png?x-oss-process=image/resize,w_560)
Add Answer to:
A gear train shown below has the following data: Z2- 18T, Z 72T Z 16T and...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
In the gear train shown below, the pinion 2 is the driver, and gear 5 is...
In the gear train shown below, the pinion 2 is the driver, and gear 5 is the output gear. All gears are spur gears has a module of 2.5mm and pressure angle of 200. The number of gear teeth are: N2 - 14, N3 - 84, N4 - 14, N5 - 70 teeth. The gear set transmits the power of 1.5KW at a constant angular velocity of XX rev/min. Where XX is the last two digits of your University ID...
A compound reverted spur gear train is to be designed to reduce the speed of a...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in,...
A compound reverted spur gear train is to be designed to reduce the speed of a...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in,...
A compound reverted spur gear train is to be designed to reduce the speed of a...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. Part 1. Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. Part 2. If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in, and allowable...
Figure Q1 shows a gear train consists of four spur gears A, B, C and D to be designed for a specific mechanism. The power transmitted by gear A is 5 kW at rotational speed of 720 rpm counterclockwise direction. Number of teeth (N) for gears A,B,C and D ar
Figure Q1 shows a gear train consists of four spur gears A, B, C and D to be designed for a specific
mechanism. The power transmitted by gear A is 5 kW at rotational speed of 720 rpm
counterclockwise direction. Number of teeth (N) for gears A,B,C and D are respectively 20, 50,
30 and 60. The module and pressure angle of the gears are respectively 4 mm and 20o
. Determine
followings:
(a) Tangential and radial forces between gears...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch...
4.(12 points) A compound reverted spur gear train is to be designed to reduce the speed...
4.(12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of...
Pls point the option for the questions QUESTION 4 2 points Save Answer A pair of...
Pls point the option for the questions
QUESTION 4 2 points Save Answer A pair of gears with 20°, full-depth, involute teeth transmits 20 hp while the pinion rotates at 1500 rpm. The module is 6 mm, and the quality number is A11. The pinion has 17 teeth, and the gear has 77 teeth. The face width is 50mm. The input power is from an electric motor, and the load is a vibrating screen. The drive is a commercial enclosed...
Consider the following drive train. Gears are shown by their pitch diameters. Gear 2 is the pinion Gear diameter not drawn to scale. N4 Ng No 12 + 3 4 6 N2 5 ng N: Question 1 100 pts All gears have a 5 mm module and 25 degree pressure angle The pinion rotates at 100 RPM and has 10 teeth Each simple gear set has a 10:1 gear ratio. Determine: Pinion pitch diameter (mm) overall train ratio [Choose ]...
In the gear train shown below, the pinion 2 is the driver, and gear 5 is the output gear. All gears are spur gears has a module of 2.5mm and pressure angle of 200. The number of gear teeth are: N2 - 14, N3 - 84, N4 - 14, N5 - 70 teeth. The gear set transmits the power of 1.5KW at a constant angular velocity of XX rev/min. Where XX is the last two digits of your University ID...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in,...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in,...
A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. Part 1. Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. Part 2. If all the gears are cut with 20° full-depth system. Assume a diametral pitch of 6 teeth/in, and allowable...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch...
4. (12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch...
4.(12 points) A compound reverted spur gear train is to be designed to reduce the speed of a 180HP engine's rotating shaft from 3500rpm to 100rpm exactly. (a) (5 points) Specify appropriate numbers of teeth (N2, N3, N4 and N5) to minimize the gearbox size. A pressure angle of 20° is used for all the gears. Interference of gears is not acceptable. (b) (5 points) If all the gears are cut with 20° full-depth system. Assume a diametral pitch of...
Pls point the option for the questions
QUESTION 4 2 points Save Answer A pair of gears with 20°, full-depth, involute teeth transmits 20 hp while the pinion rotates at 1500 rpm. The module is 6 mm, and the quality number is A11. The pinion has 17 teeth, and the gear has 77 teeth. The face width is 50mm. The input power is from an electric motor, and the load is a vibrating screen. The drive is a commercial enclosed...
