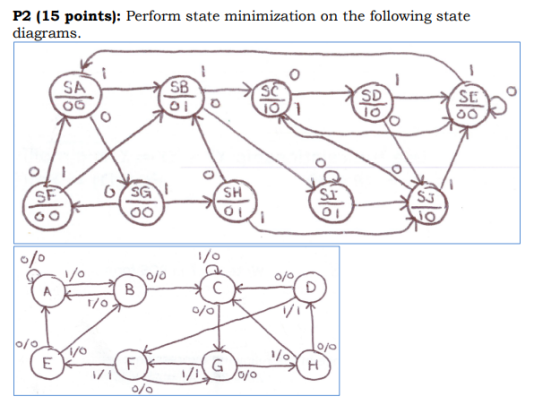

P2 (15 points): Perform state minimization on the following state diagrams.

Question

Question

engineering Electrical-Engineering

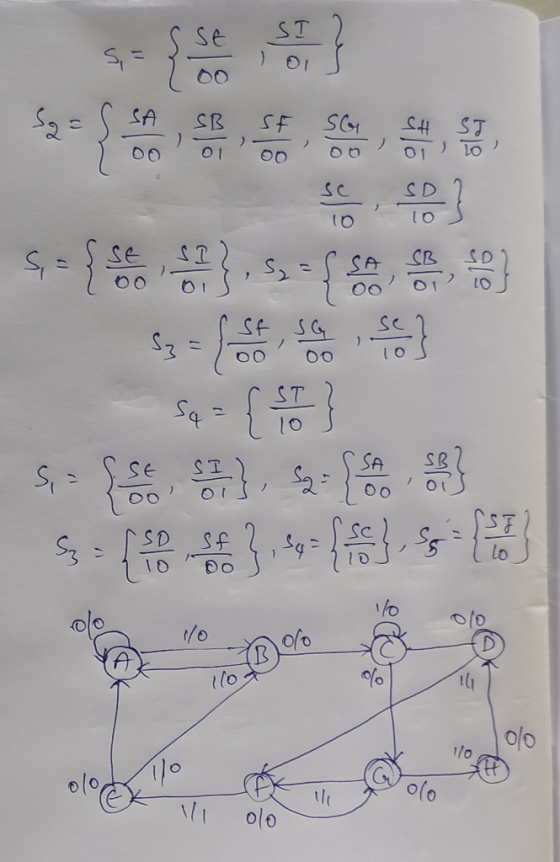

Answer 1

Answer #1

구 02 이 아

Answer 2

Similar Homework Help Questions

Problem 1. (15 points) Apply the DFA minimization algorithm to the DFA shown below. Show the...

Problem 1. (15 points) Apply the DFA minimization algorithm to the DFA shown below. Show the matrix of distinguishable pairs of states after each iteration of the loop.
1. (15 points) For each of the following Markov Chains: specify the classes, determine whether they...

1. (15 points) For each of the following Markov Chains: specify the classes, determine whether they are transient or recurrent, draw state transition diagrams, find if any absorbent states, and write whether or not each of the chains is irreducible. (a) (5 points) 0.5 0.5 0 0 (b) (5 points) 2 0o P2=1 0 0 1 0 0 (c) (5 points) P3 = 4 2 4
Draw the ladder logic diagrams of the circuits that will perform the following operations Switch ...

Draw the ladder logic diagrams of the circuits that will perform the following operations Switch on output OUT5 when inputs IN9 and IN10 are on or when IN11 is on and IN12 is off. Also Draw the Digital Logic Gate Equivalent Draw the ladder logic diagrams of the circuits that will perform the following operations Switch on output OUT5 when inputs IN9 and IN10 are on or when IN11 is on and IN12 is off. Also Draw the Digital Logic...

How many states does this state machine need after minimization? Assume that the initial state is...

How many states does this state machine need after minimization? Assume that the initial state is S0. CIRCLE ONE: 1 2 3 4 5
