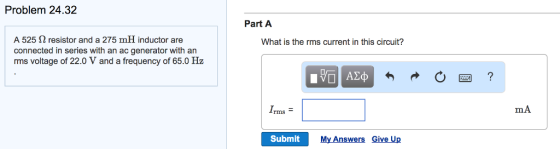

Problem 24.32 Part A A 525 Ω resistor and a 275 mH inductor are connected in series with an ac generator with an rms voltage of 22.0 V and a frequency of 65.0 Hz What is the rms current in this circuit? Irms = mA Submit My Answers Give Up

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

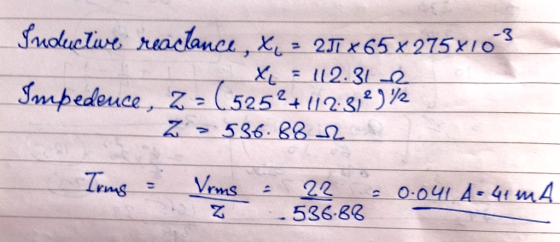

Answer #1

Please rate my answer if you find it helpful, good luck...

0 0
Add a comment
