Make the following orthographic projections into isometric sketches (while maintaining a 1:1 ratio) Ф1 2 2...

Question

Question

Make the following orthographic projections into isometric sketches (while maintaining a 1:1 ratio)

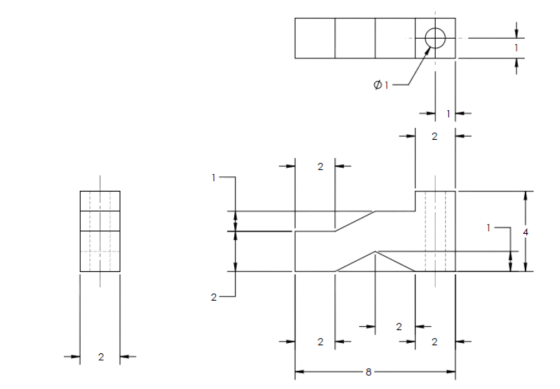

Ф1 2 2 4 2 2 2 2 2 8

engineering Mechanical-Engineering

Answer 1

Answer #1

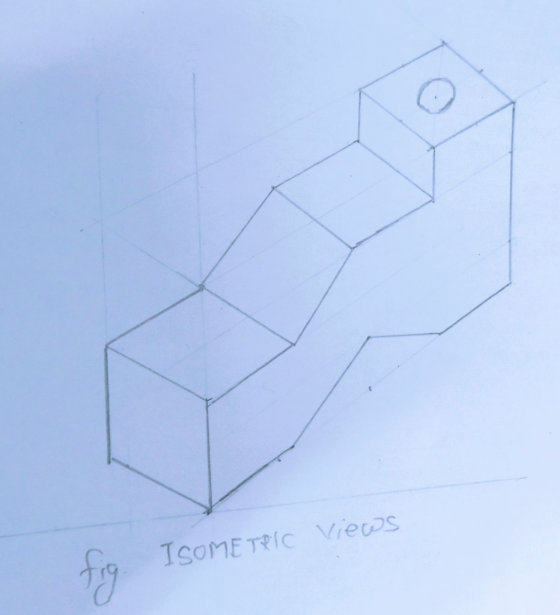

io ISOMETRIC Views

Answer 2

Similar Homework Help Questions

Question MATCH THE ORTHOGRAPHIC NEWS ON THE LEFT WITH THE CORRECT ISOMETRIC VIEW ON THE RIGHT,...

Question MATCH THE ORTHOGRAPHIC NEWS ON THE LEFT WITH THE CORRECT ISOMETRIC VIEW ON THE RIGHT, (1) B D (2) (3) MO (4) 5) ID 4C oooo Question 2 MATCH THE ORTHOGRAPHIC VIEWS ON THE LEFT WITH THE CORRECT ISOMETRIC VIEW ON THE RIGHT. (1) А B E (2) A (3) B m (4) B m 15) OA OB Od OE Question Completion MATCH THE ORTHOGRAPHIC WEWS ON THE LEFT WITH THE CORRECT ISOMETRIC VIEW ON THE RIGHT (1) А...
Create an orthographic projection of the views. 94-10) Chapter 4 Creating Orthographic Projections in AutoCADE1 following...

Create an orthographic projection of the views. 94-10) Chapter 4 Creating Orthographic Projections in AutoCADE1 following object. Draw the three 30 1.00 1.00 1.88 .62 38 s.o0
elearning.sharjah.ac.ae 1. a. Sketch orthographic drawing for the isometric given from suitable views. (7 marks) Write...

elearning.sharjah.ac.ae 1. a. Sketch orthographic drawing for the isometric given from suitable views. (7 marks) Write the dimensions in order to manufacture the object (4 marks) 1 of 3 0 b. 16

Problems 4.25-4.28 The following problems are given in one, two-, or three-view orthographic drawings. Generate isometric...

Problems 4.25-4.28 The following problems are given in one, two-, or three-view orthographic drawings. Generate isometric drawing on the iso grid sheet. Use isometric graph paper. MILLIMETERS INCHES . 13 .75 2.13 - - 0.75 R 1.13 R 25 1.25 R 44 Problem 4.25 Problem 4.26 1 -R.38 ++ + 1 - 38 42 R k 1.25 Problem 4.27 Problem 4.28
With dimensions please ALL FOUR . Thank you, Department of Mechanical Engineering Part-1 (Orthographic Projections) Extract...

With dimensions please ALL FOUR . Thank you, Department of Mechanical Engineering Part-1 (Orthographic Projections) Extract the standard views using third angle proiection for the following problems. 80 25 i0 110 R S0 150 70 70 R.20 4.00 40 70 0 404 150
