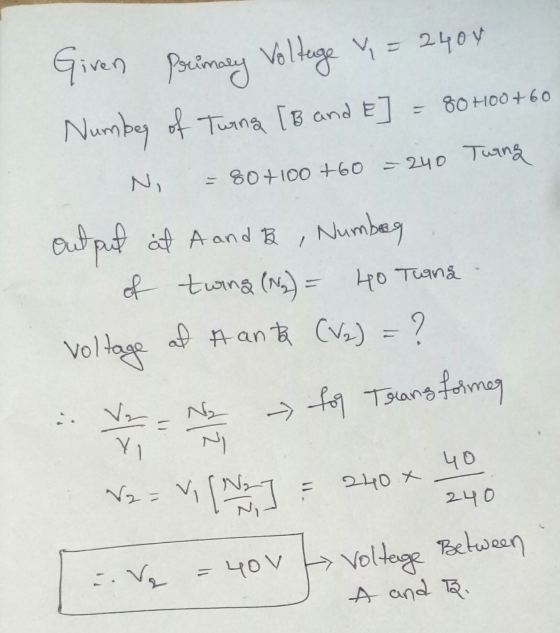

![Given Primary Voltage Y= 2400 Number of Tuins [B and E] = 80 400+60 N = 80+100+60 = 240 Turing output at A and B , Number of](http://img.homeworklib.com/questions/0d475c40-0044-11ec-ae8a-530a8d3c1f36.png?x-oss-process=image/resize,w_560)
V2=
secondary voltage
V1 = primary voltage
N1= primary turns
N2 = secondary turns
Add Answer to:
D. 170TLAN -ОА 40 Tums OB 80 Turns -oc Primary winding 100 Tums OD 60 Turns...
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20...
An ideal transformer has a primary winding with 100 turns and a secondary winding with 20 turns. If the primary winding has a voltage drop of 10 V AC, what is the EMF in the secondary coil? A. 100 V AC B. 10 V AC C. 2 V AC D. 20 V AC
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which...
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary winding, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: a) primary voltage. b) load impedance. c) load impedance referred to the primary. d) the real and reactive power supplied to the primary winding
Which compound matches the following 13C NMR? 160 140 120 100 60 40 80 PPM NH2...
Which compound matches the following 13C NMR? 160 140 120 100 60 40 80 PPM NH2 A. B. C. D. H ОА OD Ос OB
Which compound matches the following 13C NMR? 200 180 760 740 120 80 40 60 100...
Which compound matches the following 13C NMR? 200 180 760 740 120 80 40 60 100 PPM NH2 D A. B. C. H ОА OD OB Ос
3.4 A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load,...
3.4 A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary wind- ing, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: (a) primary voltage, (b) load impedance, (c) load impedance referred to the primary, and (d) the real and reactive power sup- plied to the primary winding.
Please show steps An inductor is formed by winding N turns of a thin conducting wire...
Please show steps
An inductor is formed by winding N turns of a thin conducting wire into a circular loop as shown below around a non-magnetic material of radius a. The inductor loop is in the r-y plane with its center at the origin and connected to a resistor R. In the presence of a magnetic fleld B 4. -2094+2) sin(ast) Wb/m2-Teslas, angular frequency where a N tums Derive and calculate the following parameters (a) Derive the magnetic flux linking...
4. (a) What is meant by time grading in protective systems? (b) In FIGURE 1, time graded relays control the circuit breakers. Which will have the shortest delay in operating for a fault at the locatio...
4.
(a) What is meant by time grading in protective systems?
(b) In FIGURE 1, time graded relays control the circuit
breakers. Which
will have the shortest delay in operating for a fault at the
location
shown?
(c) A voltage transformer for use on an 11 kV system has a
star
connected primary. If the turns ratio is 100/1 what will be
the
residual voltage of the open delta winding?
(d) A 1 A electromagnetic relay has 80 turns on...
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a wi...
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a winding factor of 0.962. The Δ connected armature winding has 25 series turns per phase with a winding factor of 0.935. The generator is designed to achieve rated open-circuit voltage at a peak air-gap flux density of 1.25 T (a) At...
2 0. The primary coil of a transformer has N, 4 50 x 10 turns, and...
2 0. The primary coil of a transformer has N, 4 50 x 10 turns, and its secondary has Ni 1.35 x 10 tuns. If the input voltage across the primary coil is av-(1so v) sin or, voltage is developed across the secondary coil? a. 332 v b. 454 V C. 382 V d. 726 e. None of the above A sinusoidal voltage Av (95 V) sin (100) is applied to a series Z-90 mH, C-11SpF, and R- 46 2...
A single-phase 100-kVA, 2400/240-volt, 60-Hz distribution transformer is used as a step-down transformer. The load, which is connected to the 240-volt secondary winding, absorbs 80 kVA at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: a) primary voltage. b) load impedance. c) load impedance referred to the primary. d) the real and reactive power supplied to the primary winding
Which compound matches the following 13C NMR? 160 140 120 100 60 40 80 PPM NH2 A. B. C. D. H ОА OD Ос OB
Which compound matches the following 13C NMR? 200 180 760 740 120 80 40 60 100 PPM NH2 D A. B. C. H ОА OD OB Ос
Please show steps
An inductor is formed by winding N turns of a thin conducting wire into a circular loop as shown below around a non-magnetic material of radius a. The inductor loop is in the r-y plane with its center at the origin and connected to a resistor R. In the presence of a magnetic fleld B 4. -2094+2) sin(ast) Wb/m2-Teslas, angular frequency where a N tums Derive and calculate the following parameters (a) Derive the magnetic flux linking...
4.
(a) What is meant by time grading in protective systems?
(b) In FIGURE 1, time graded relays control the circuit
breakers. Which
will have the shortest delay in operating for a fault at the
location
shown?
(c) A voltage transformer for use on an 11 kV system has a
star
connected primary. If the turns ratio is 100/1 what will be
the
residual voltage of the open delta winding?
(d) A 1 A electromagnetic relay has 80 turns on...
Problem 1: A four pole, 60Hz, 3-d synchronous generator has a rotor radius of 15 cm, a rotor length of 2.7m, and an air gap length of 2 mm. The rotor field winding consists of 1000 turns with a winding factor of 0.962. The Δ connected armature winding has 25 series turns per phase with a winding factor of 0.935. The generator is designed to achieve rated open-circuit voltage at a peak air-gap flux density of 1.25 T (a) At...
2 0. The primary coil of a transformer has N, 4 50 x 10 turns, and its secondary has Ni 1.35 x 10 tuns. If the input voltage across the primary coil is av-(1so v) sin or, voltage is developed across the secondary coil? a. 332 v b. 454 V C. 382 V d. 726 e. None of the above A sinusoidal voltage Av (95 V) sin (100) is applied to a series Z-90 mH, C-11SpF, and R- 46 2...
