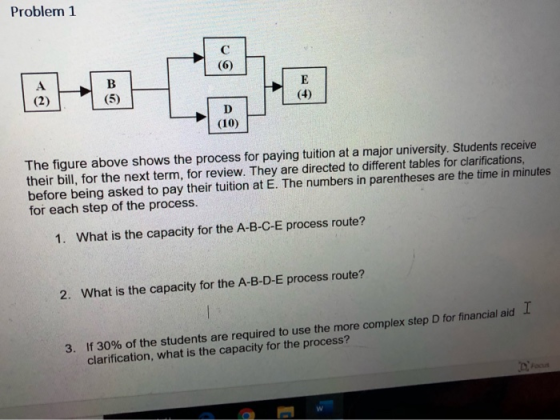

Problem 1 (2) D (10) The figure above shows the process for paying tuition at a major university. Students receive their bill, for the next term, for review. They are directed to different tables for clarifications, before being asked to pay their tuition at E. The numbers in parentheses are the time in minutes for each step of the process. 1. What is the capacity for the A-B-C-E process route? 2. What is the capacity for the A-B-D-E process route? 3. If 30% of the students are required to use the more complex step D for financial aid ? clarification, what is the capacity for the process?

Answer 1

Answer 1= The capacity of A-B-C-E will be equal to the bottleneck step's capacity

So the capacity fo activity A= 60/2=30 student /hr

the capacity fo activity B= 60/5=12 student/hr

the capacity fo activity C= 60/6=10 student/hr

the capacity fo activity E= 60/4=15 student/hr

As the least capacity is 10 students/hr, so the capacity of A-B-C-E will be 10 students/hr

Answer 2= The capacity of A-B-D-E will be equal to the bottleneck step's capacity

So the capacity fo activity A= 60/2=30 student /hr

the capacity fo activity B= 60/5=12 student/hr

the capacity fo activity D= 60/10=6 student/hr

the capacity fo activity E= 60/4=15 student/hr

As the least capacity is 6 students/hr, so the capacity of A-B-D-E will be 6 students/hr

Answer 3= Capacity for the process = (60/10)*0.3 +(60/6)*0.7=8.8 students/hr
