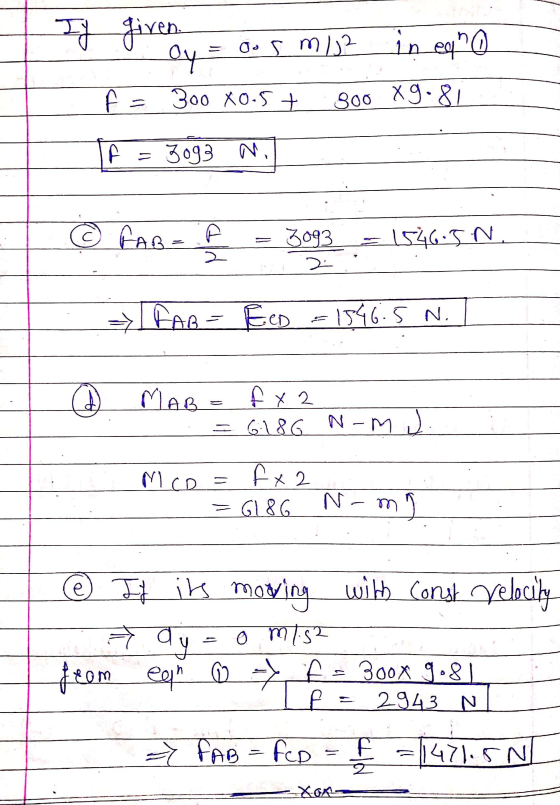

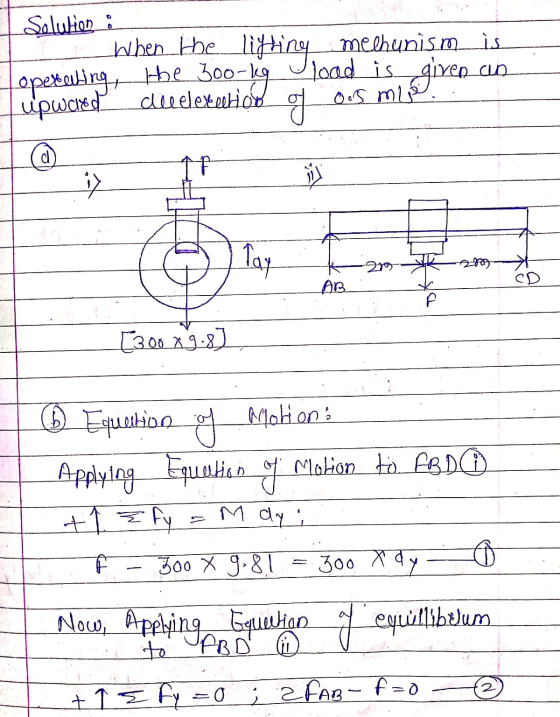

2 m 2 m B D HA When the lifting mechanism is operating, the 300-kg load...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
please help me solve part B it is drawing please be clear To use a load...
please help me solve part B
it is drawing please be clear
To use a load diagram to determine internal axial forces and to calculate axial deformations. The axially loaded bar with circular cross-section is loaded and supported as shown below. The bar is made of aluminum 2014-T4 and has a modulus of elasticity, E, of 10,600 ksi. The lengths of segments AB, BC, and CD are 2, 1.5, and is 2.5 ft, respectively and the diameters of the segments...
A shaft that carries gear 2 and 3 is supported by two bearings at B and D. Gear 4 is the driver g...
A shaft that carries gear 2 and 3 is supported by two bearings at B and D. Gear 4 is the driver gear and gear 1 is the driven gear. All gears have 20° pressure angle with diametral pitch equal to 3. The driver has N 30 teeth and transmit 75 HP at 300 rpm. The numbers of teeth of other gears are: Ni-24; N2 30; N 48 All gears are steel with Poisson's ratio of 9 .028. Use AGMA...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
(Dynamics Examination) ist 1, S: 4 If a partide moves along a curve with a constant...
(Dynamics Examination) ist 1, S: 4 If a partide moves along a curve with a constant speed, then its tangential component of acceleration is A: zero. B: positive. C. constant D: negative. 2. 单选题的重点 The position, s. is given as a function of angular positione. as s = 10 sin(28). The velocity, v, is A: 20 sin(2) B: 20 cos(20) C: 20 w cos(20) D: 20 w sin(2) 3. S10 The 15-kg disk is pinned at and is initially at...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
please help me solve part B
it is drawing please be clear
To use a load diagram to determine internal axial forces and to calculate axial deformations. The axially loaded bar with circular cross-section is loaded and supported as shown below. The bar is made of aluminum 2014-T4 and has a modulus of elasticity, E, of 10,600 ksi. The lengths of segments AB, BC, and CD are 2, 1.5, and is 2.5 ft, respectively and the diameters of the segments...
A shaft that carries gear 2 and 3 is supported by two bearings at B and D. Gear 4 is the driver gear and gear 1 is the driven gear. All gears have 20° pressure angle with diametral pitch equal to 3. The driver has N 30 teeth and transmit 75 HP at 300 rpm. The numbers of teeth of other gears are: Ni-24; N2 30; N 48 All gears are steel with Poisson's ratio of 9 .028. Use AGMA...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
(Dynamics Examination) ist 1, S: 4 If a partide moves along a curve with a constant speed, then its tangential component of acceleration is A: zero. B: positive. C. constant D: negative. 2. 单选题的重点 The position, s. is given as a function of angular positione. as s = 10 sin(28). The velocity, v, is A: 20 sin(2) B: 20 cos(20) C: 20 w cos(20) D: 20 w sin(2) 3. S10 The 15-kg disk is pinned at and is initially at...
