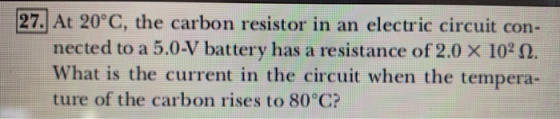

27. At 20°C, the carbon resistor in an electric circuit con- nected to a 5.0-V battery...

Question

Question

science physics

Answer 1

Answer #1

acarbon -0.0005/°C AT = 80-20 = 60°C Rlt) = Rolltoot) = 2x102 ( 2+(-0.0005 X60)] 194 I mie - lisy 1.94 I = 2.57 M A

Answer 2
