Homework Answers
Add Answer to:

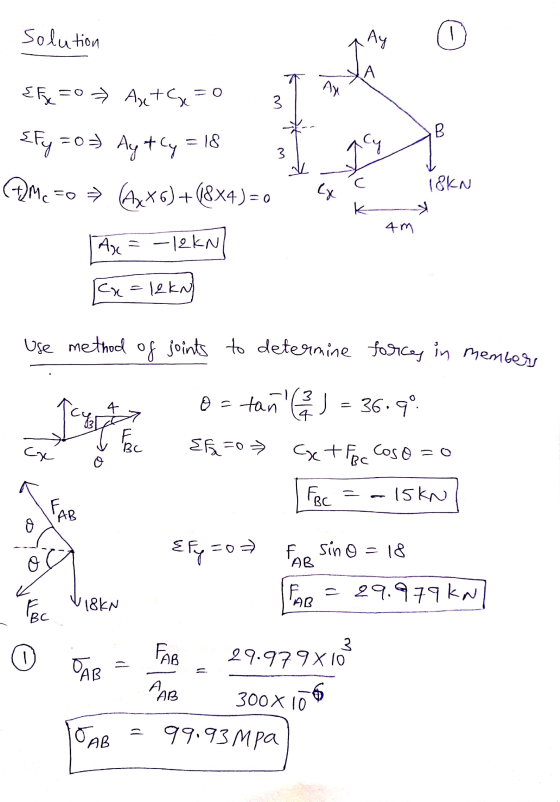

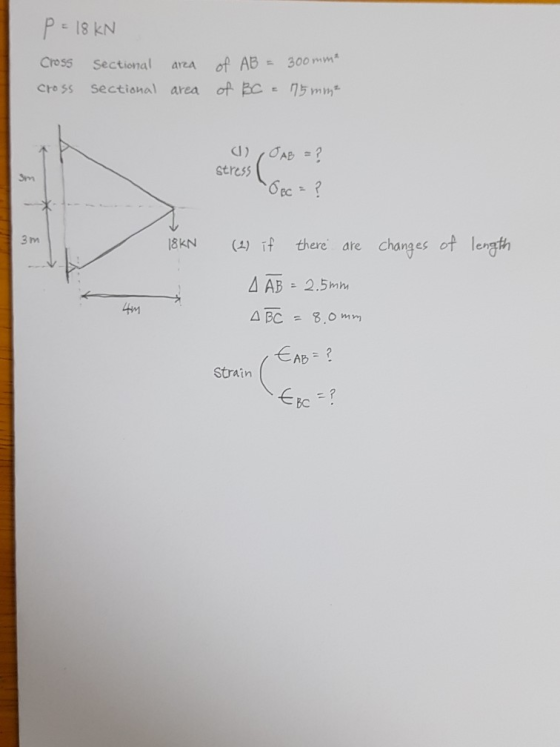

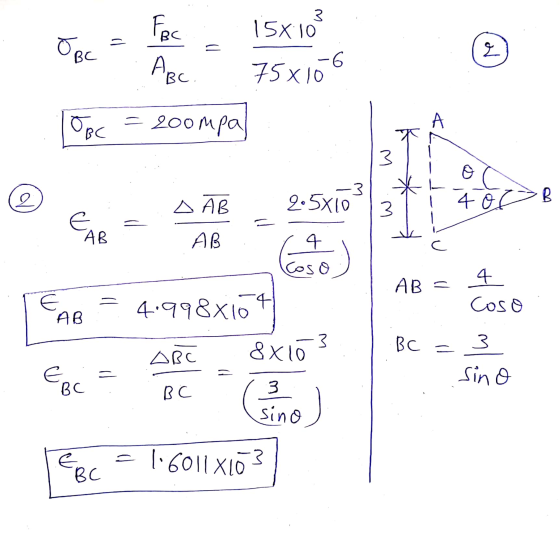

P = 18 kN Cross Sectional area of AB = 300mm cross sectional area of BC...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area of 1,800 mm2. Portion AC is made of a mild steel with E 70 GPa and portion CB is made of a steel with E 140 GPa. A load P-1,000 kN is applied at C as shown. (a) Determine reaction forces at A and B; (b) Determine the displacement at C 190 mm 190 mm
The beam has the cross-sectional area shown. If the loading intensity o 25 kN/m and the...
The beam has the cross-sectional area shown. If the loading intensity o 25 kN/m and the length of the beam L is 3 m, answer the questions that follow: 0 TALALRATEATAITTAAAAATTAAAAAL 100 mm 25 mm 25 mm 75 mm 75 mm 25 mm Determine the maximumm bending moment in the bearm in [kNm] Determine the position of the neutral axis, as a distance in [mm] measured from the bottom of the beam i.e. determine V Determine the area moment of...
Link BD is made of brass (E 105 GPa) and has a cross-sectional area of 240...
Link BD is made of brass (E 105 GPa) and has a cross-sectional area of 240 mm2. Link CE is made of aluminium (E 72 GPa) and has a cross-sectional area of 300 mm2. Knowing that they support rigid member ABC, determine the maximum force P that can be applied vertically at point A if the deflection of A is not to exceed 0.36 mm. (Round the final answer to two decimal places.) 995 mm A 150 mm E 225...
roblem 1: The built-up shaft consists of a pipe AB and solid rod BC. Pipe AB...
roblem 1: The built-up shaft consists of a pipe AB and solid rod BC. Pipe AB has an inner diameter of 20 mm and outer diameter of 28 mm. The length of AB is 200 mm. Rod BC has a diameter of 12 mm and a length of 180 mm. (a) Determine the average normal stress at points D and E (b) If the modulus of elasticity of pipe AB is EAB-200 GPa, Poisson's ratio of rod BC is VBc...
Q4. (20 pts) A kN/m BEN. X mm The beam has the cross-sectional area and loaded...
Q4. (20 pts) A kN/m BEN. X mm The beam has the cross-sectional area and loaded as shown. Draw the bending and shear force diagrams. Find the maximum bending stress in the beam. التسعي HO Z mm Y mm 3 m Z mm A=40 X=75 B=25 Y=125 Z=10
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by...
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by 200 mm. Attached rod CB has a cross sectional area of 1250 mm2 and is pin-connected to beam AB at B. Use the Stiffness Method to Find the force in BC and the reactions at A a) Use the Stiffness Method to find the force in BC and the reactions at A If the horizontal displacement at B0.01688 mm, the vertical displacement at B...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of cach rod is A. Determine the reactions (with respect to the reaction vectors shown). Given: Pg = 20 N (applied at point B) EAB-73 GPa (aluminum); EBc 103 GPa (bronze) Cross-sectional areas: AAB = 250 mm: ABC-100...
4. A T-shaped cross-sectional beam is loaded as shown in the figure. Determine the following a....
4. A T-shaped cross-sectional beam is loaded as shown in the figure. Determine the following a. Sketch the internal shear force and bending moment diagrams for the beam. b. Calculate the maximum magnitude of the bending stress. Indicate where this occurs on the cross-section and along the length of the beam. c. Calculate the transverse shearing stress at the centroid of the cross-section using the maximum magnitude of the transverse shear force. - 200 mm 8 KN 1.5 kN/m 20...
The beam is supported by two rods AB and CD that have cross-sectional areas of 18...
The beam is supported by two rods AB and CD that have cross-sectional areas of 18 mm2 and 9 mm2, respectively.
Determine the position d of the 6-kN load so that the average normal stress in each rod is the same.
a A horizontal bracket ABC consists of two perpendicular arms AB and BC as shown in...
a A horizontal bracket ABC consists of two perpendicular arms AB and BC as shown in the figure. Amm AB has a solid circular cross section with diameter equal to 60 mm. At point C a load P = 2.02 EN acts vertically and a load Pa = 3.07 kN acts horizontally and parallel to am AB. For point p, (a) sketch the stress element, (3 marks) 6) calculate the principal planes and the principal stresses and sketch the orientation...
Q.1. Rod AB consists of two cylindrical portions AC and BC with the same cross-sectional area of 1,800 mm2. Portion AC is made of a mild steel with E 70 GPa and portion CB is made of a steel with E 140 GPa. A load P-1,000 kN is applied at C as shown. (a) Determine reaction forces at A and B; (b) Determine the displacement at C 190 mm 190 mm
The beam has the cross-sectional area shown. If the loading intensity o 25 kN/m and the length of the beam L is 3 m, answer the questions that follow: 0 TALALRATEATAITTAAAAATTAAAAAL 100 mm 25 mm 25 mm 75 mm 75 mm 25 mm Determine the maximumm bending moment in the bearm in [kNm] Determine the position of the neutral axis, as a distance in [mm] measured from the bottom of the beam i.e. determine V Determine the area moment of...
Link BD is made of brass (E 105 GPa) and has a cross-sectional area of 240 mm2. Link CE is made of aluminium (E 72 GPa) and has a cross-sectional area of 300 mm2. Knowing that they support rigid member ABC, determine the maximum force P that can be applied vertically at point A if the deflection of A is not to exceed 0.36 mm. (Round the final answer to two decimal places.) 995 mm A 150 mm E 225...
roblem 1: The built-up shaft consists of a pipe AB and solid rod BC. Pipe AB has an inner diameter of 20 mm and outer diameter of 28 mm. The length of AB is 200 mm. Rod BC has a diameter of 12 mm and a length of 180 mm. (a) Determine the average normal stress at points D and E (b) If the modulus of elasticity of pipe AB is EAB-200 GPa, Poisson's ratio of rod BC is VBc...
Q4. (20 pts) A kN/m BEN. X mm The beam has the cross-sectional area and loaded as shown. Draw the bending and shear force diagrams. Find the maximum bending stress in the beam. التسعي HO Z mm Y mm 3 m Z mm A=40 X=75 B=25 Y=125 Z=10
The shown frame ABC has beam AB with a rectangular cross section of 150 mm by 200 mm. Attached rod CB has a cross sectional area of 1250 mm2 and is pin-connected to beam AB at B. Use the Stiffness Method to Find the force in BC and the reactions at A a) Use the Stiffness Method to find the force in BC and the reactions at A If the horizontal displacement at B0.01688 mm, the vertical displacement at B...
9) The aluminum rod AB and bronze rod BC are joined at the collar B and fixed connected at their ends. An axial load, P, is applied at point B. Neglect any effects of the collar at B itself. The cross-sectional area of cach rod is A. Determine the reactions (with respect to the reaction vectors shown). Given: Pg = 20 N (applied at point B) EAB-73 GPa (aluminum); EBc 103 GPa (bronze) Cross-sectional areas: AAB = 250 mm: ABC-100...
4. A T-shaped cross-sectional beam is loaded as shown in the figure. Determine the following a. Sketch the internal shear force and bending moment diagrams for the beam. b. Calculate the maximum magnitude of the bending stress. Indicate where this occurs on the cross-section and along the length of the beam. c. Calculate the transverse shearing stress at the centroid of the cross-section using the maximum magnitude of the transverse shear force. - 200 mm 8 KN 1.5 kN/m 20...
The beam is supported by two rods AB and CD that have cross-sectional areas of 18 mm2 and 9 mm2, respectively.
Determine the position d of the 6-kN load so that the average normal stress in each rod is the same.
a A horizontal bracket ABC consists of two perpendicular arms AB and BC as shown in the figure. Amm AB has a solid circular cross section with diameter equal to 60 mm. At point C a load P = 2.02 EN acts vertically and a load Pa = 3.07 kN acts horizontally and parallel to am AB. For point p, (a) sketch the stress element, (3 marks) 6) calculate the principal planes and the principal stresses and sketch the orientation...
