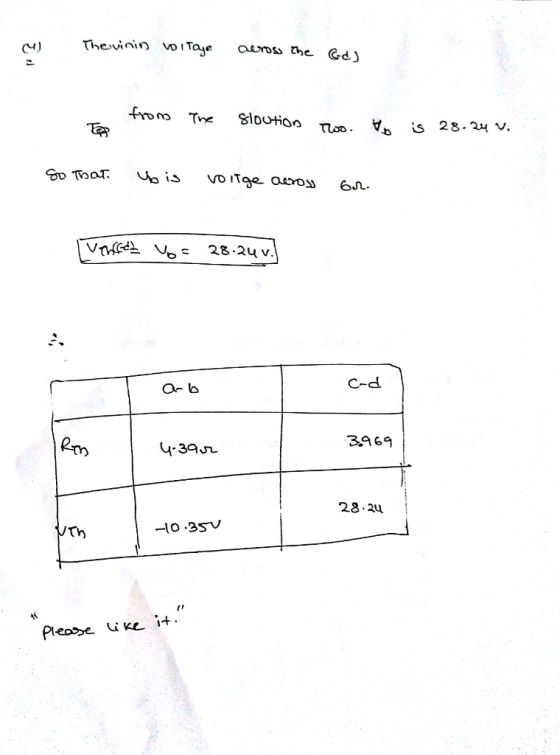

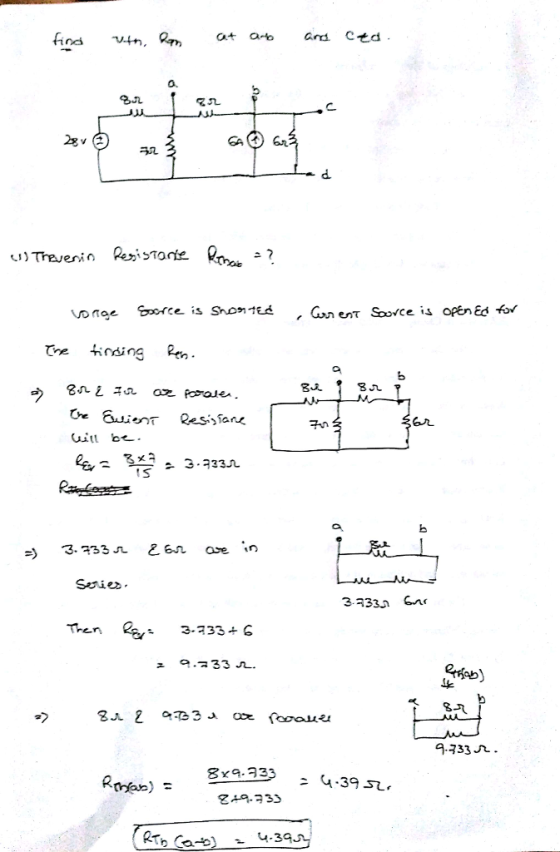

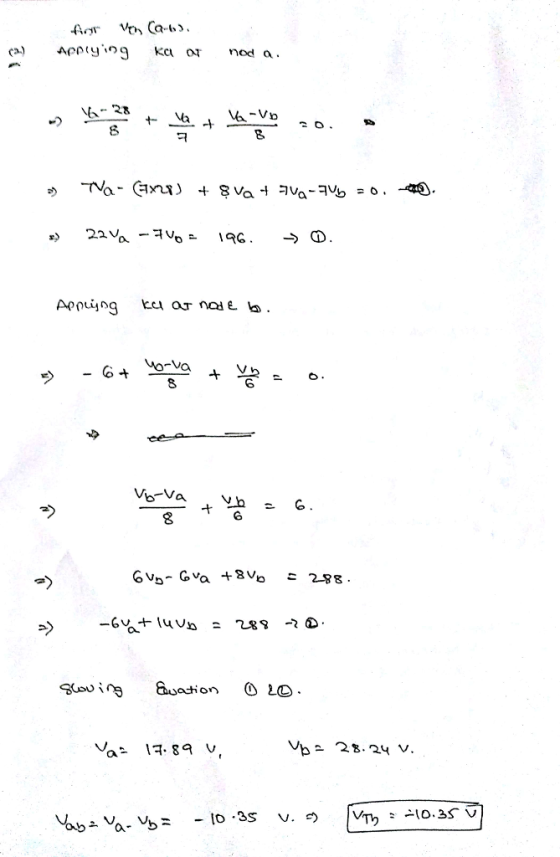

use thevenin for terminals to find Rth and Vth for
each terminal.
a) a-b

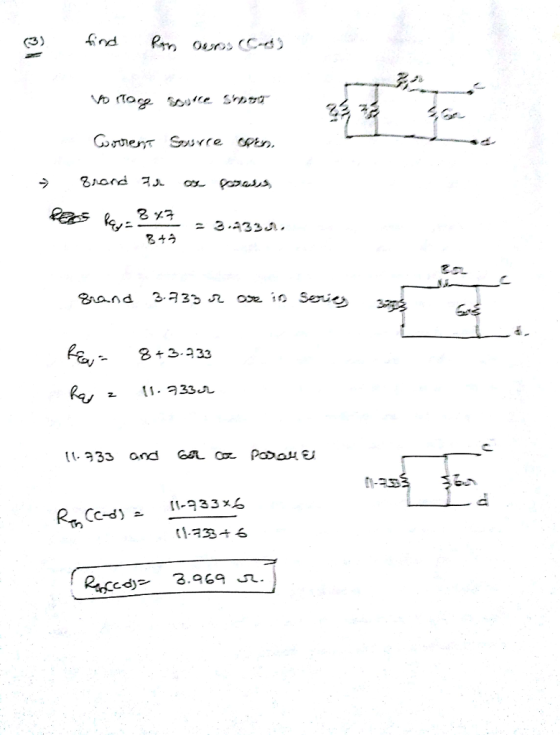

b) c-d
Homework Answers
Add Answer to:
use thevenin for terminals to find Rth and Vth for
each terminal.
a) a-b
b) c-d...
