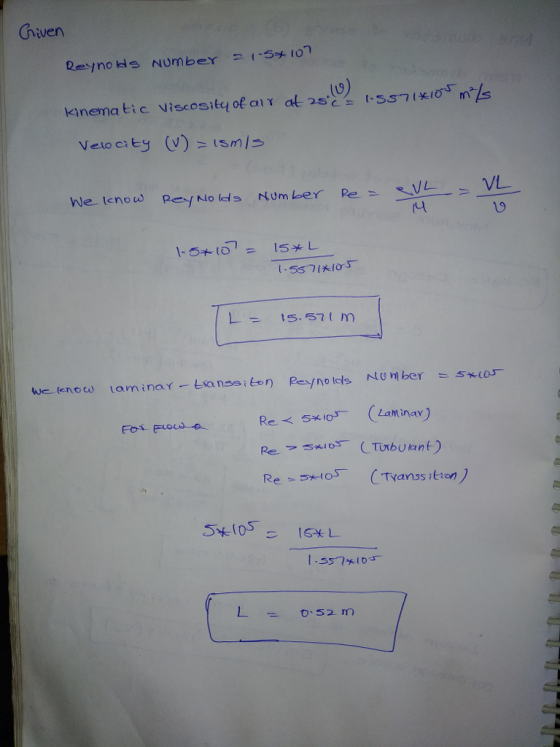

![9. A low speed wind tunnel is used to study the movement of airborne contaminants across the ground due to the wind. Reynolds numbers up to 1.5E7 are to be studied. If the maximum air velocity in the tunnel is to be 15 m/s, how long must the tunnel be? [15.7 m] Where will the laminar-turbulent transition occur? [0.525 m] Use 25 C air properties.](http://img.homeworklib.com/questions/3856e980-015f-11ec-bb14-dff8b349cf66.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
9. A low speed wind tunnel is used to study the movement of airborne contaminants across...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that the flow on the surface of the wing produce a laminar boundary layer and the velocity profile is given as follows; Determine the theoretical value of; 8" where Rex is the Reynold number at a distance x from the leading edge of the wing, Rei is the Reynolds number at the trailing edge of the wing and Cr (or Cp) is the average skin...
1. Consider a design of a low-speed open-circuit subsonic wind tunnel. The goal is to achieve...
1. Consider a design of a low-speed open-circuit subsonic wind tunnel. The goal is to achieve a free stream velocity of 150 m/s at the test section of this tunnel. This wind tunnel is equipped with a U-tube mercury manometer that measures the pressure difference between the inlet (the settling chamber) and the test section. If the fan of the wind tunnel is able to generate the maximum pressure difference corresponding to a height difference of 10 cm on the...
5. A fan that can provide air speeds up to 30 m/s is to be used...
5. A fan that can provide air speeds up to 30 m/s is to be used in a low-speed wind tunnel with atmospheric air at 23°C. If one wishes to use the wind tunnel to study flat-plate boundary layer behavior up to a Reynolds number of 107, what is the minimum plate length that should be used? At what distance from the leading edge would transition occur if the critical Reynolds number was Re.c-5 × 105?
. max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure...
.
max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure is uniform across sections 1 and 2. The upstream pressure is 30 mm H2O (gage), the downstream pressure is 15 mm H20 (gage), and the mean air speed is 12.5 m/s. The velocity profile at section 2 is linear; it varies from zero at the tunnel centerline to a maximum at the tunnel wall. V Calculate a) the mass flow rate in the wind...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study aerodynamic shapes. Consider a tunnel that uses a U-tube mercury manometer attached between the bell inlet (station 1) and the test section (station 2) to measure the static pressure differential (por setting the airspeed of the flow. The pressure differential 1527 N/m2 for a test section airspeed of 50 m/s. What is the height of the unbalanced column of mercury?
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross...
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water with...
255 Water flows at 20°C at 8 kg/s through the diffuser having 3 cm diameter at...
255 Water flows at 20°C at 8 kg/s through the diffuser having 3 cm diameter at (7 the entrance and 7.0 cm diameter at its exit. The fluid Reynolds number at *: the inlet and exit of the diffuser are 339105, 146530 Not all the above 336105, 143530 338105, 145530 337105, 144530 A fan provides air speed upto 50 m/s, is used in low speed wind tunnel (8 with atmospheric air at 27°C. If this wind tunnel is used to...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down/low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m°, and absolute viscosity of air is 1.825*10-5 Ns/m² (assume...
A ball is kicked from a location < 6, 0, -9> m (on the ground) with...
A ball is kicked from a location < 6, 0, -9> m (on the ground) with initial velocity<-13, 17.0, -4> m/s. The ball's speed is low enough that air resistance is negligible (a) What is the velocity of the ball 0.6 s after being kicked? (Use the Momentum Principle!) 11.2 4 m/S (b) In this situation (constant force), which velocity will give the most accurate value for the location of the ball 0.6 s after it is kicked? the arithmetic...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that the flow on the surface of the wing produce a laminar boundary layer and the velocity profile is given as follows; Determine the theoretical value of; 8" where Rex is the Reynold number at a distance x from the leading edge of the wing, Rei is the Reynolds number at the trailing edge of the wing and Cr (or Cp) is the average skin...
1. Consider a design of a low-speed open-circuit subsonic wind tunnel. The goal is to achieve a free stream velocity of 150 m/s at the test section of this tunnel. This wind tunnel is equipped with a U-tube mercury manometer that measures the pressure difference between the inlet (the settling chamber) and the test section. If the fan of the wind tunnel is able to generate the maximum pressure difference corresponding to a height difference of 10 cm on the...
5. A fan that can provide air speeds up to 30 m/s is to be used in a low-speed wind tunnel with atmospheric air at 23°C. If one wishes to use the wind tunnel to study flat-plate boundary layer behavior up to a Reynolds number of 107, what is the minimum plate length that should be used? At what distance from the leading edge would transition occur if the critical Reynolds number was Re.c-5 × 105?
.
max A small round object is tested in a 0.75-m diameter wind tunnel. The pressure is uniform across sections 1 and 2. The upstream pressure is 30 mm H2O (gage), the downstream pressure is 15 mm H20 (gage), and the mean air speed is 12.5 m/s. The velocity profile at section 2 is linear; it varies from zero at the tunnel centerline to a maximum at the tunnel wall. V Calculate a) the mass flow rate in the wind...
1.) In Chapter 4 we will learn how a low-speed wind tunnel generates airflow to study aerodynamic shapes. Consider a tunnel that uses a U-tube mercury manometer attached between the bell inlet (station 1) and the test section (station 2) to measure the static pressure differential (por setting the airspeed of the flow. The pressure differential 1527 N/m2 for a test section airspeed of 50 m/s. What is the height of the unbalanced column of mercury?
9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume there are no losses in the wind tunnel) Contraction ratio: 7 Diffuser length: 3 m Test section diameter = test section length = 70 cm a) When a static-pitot tube placed in the test section with a manometer (manometer fluid is water with...
255 Water flows at 20°C at 8 kg/s through the diffuser having 3 cm diameter at (7 the entrance and 7.0 cm diameter at its exit. The fluid Reynolds number at *: the inlet and exit of the diffuser are 339105, 146530 Not all the above 336105, 143530 338105, 145530 337105, 144530 A fan provides air speed upto 50 m/s, is used in low speed wind tunnel (8 with atmospheric air at 27°C. If this wind tunnel is used to...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Diffuser Fan Test Section Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m², and absolute viscosity of air is 1.825*10-Ns/m² (assume...
8) (1 point) Honeycomb Flow Straightener -Anti-Turbulence Screens Silencer Fan Test Section Diffuser Inlet The wind tunnel shown above is; a) open circuit/suction/low speed wind tunnel b) open circuit/blow-down/low speed wind tunnel c) closed circuit/suction/supersonic wind tunnel d) closed circuit/blow-down/supersonic wind tunnel 9) For the air wind tunnel shown above in Q8: (6 points) Assuming a circular cross section, the atmospheric pressure is 101.325 kPa, density of air is 1.2 kg/m°, and absolute viscosity of air is 1.825*10-5 Ns/m² (assume...
A ball is kicked from a location < 6, 0, -9> m (on the ground) with initial velocity<-13, 17.0, -4> m/s. The ball's speed is low enough that air resistance is negligible (a) What is the velocity of the ball 0.6 s after being kicked? (Use the Momentum Principle!) 11.2 4 m/S (b) In this situation (constant force), which velocity will give the most accurate value for the location of the ball 0.6 s after it is kicked? the arithmetic...
