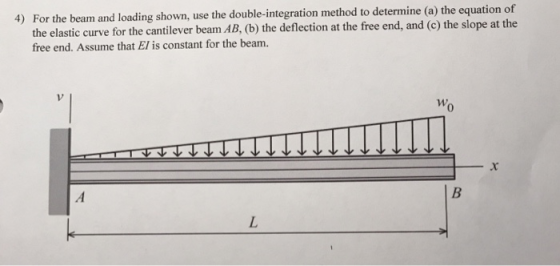

Midway answer provided by instructor to make sure answer is correct 4) For the beam and...

Question

Question

Midway answer provided by instructor to make sure answer is correct

engineering Civil-Engineering

Answer 1

Answer #1

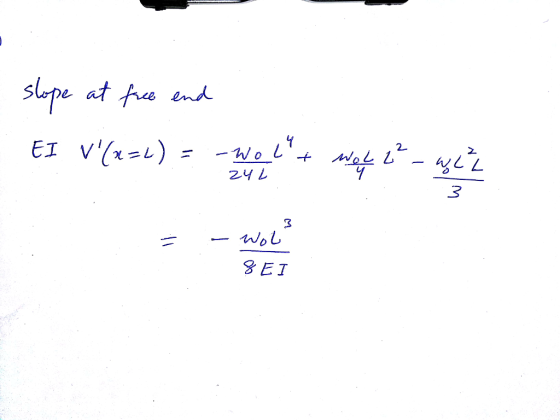

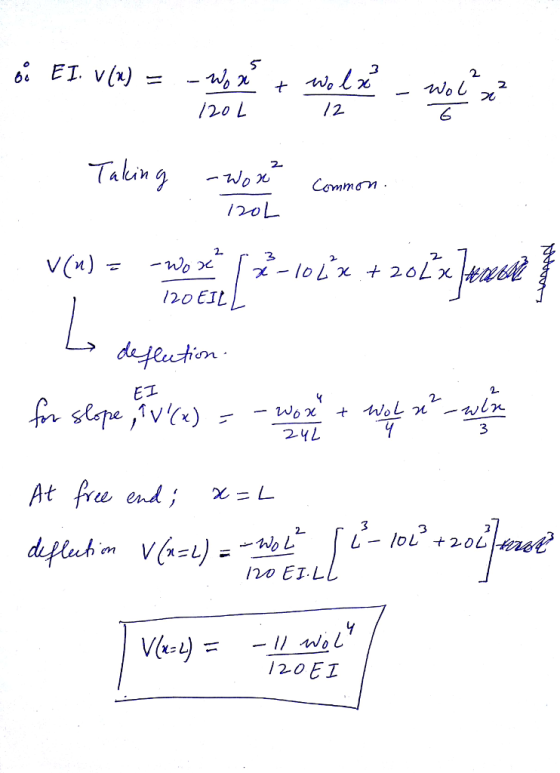

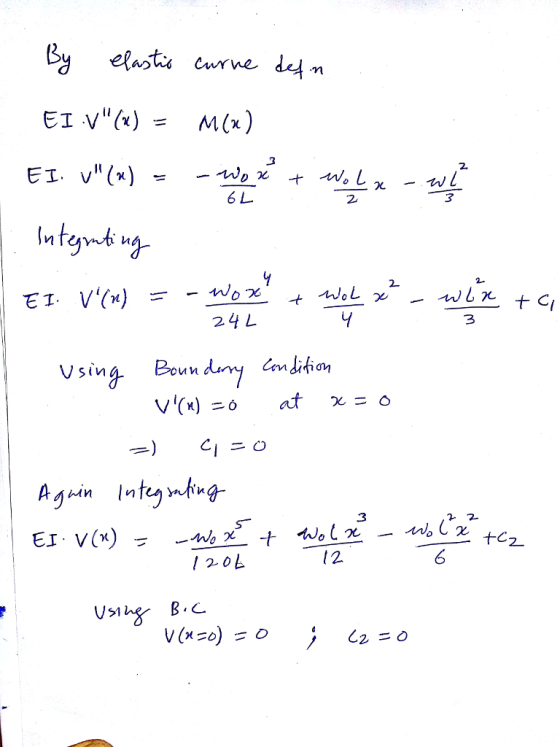

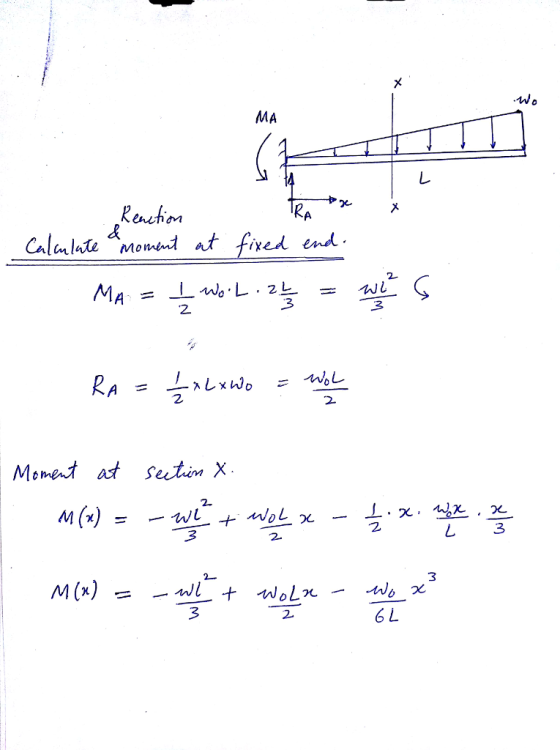

Wo MA Reachm CalalateMonnt at fired end 2. 2 2. M (x) = -w1 L 3 3 3 2. 6 L

Answer 2
