Question

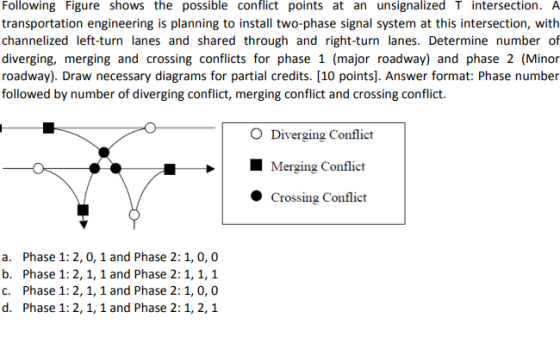

Following Figure shows the possible conflict points at an unsignalized T intersection. A transportation engineering is planning to install two-phase signal system at this intersection, with channelized left-turn lanes and shared through and right-turn lanes. Determine number of diverging, merging and crossing conflicts for phase 1 (major roadway) and phase 2 (Minor roadway). Draw necessary diagrams for partial credits. [10 points]. Answer format: Phase number followed by number of diverging conflict, merging conflict and crossing conflict. O Diverging Conflict Merging Conflict O Crossing Conflict a. b. C. d. Phase 1:2, 0, 1 and Phase 2: 1,0,0 Phase 1: 2,1,1 and Phase 2: 1, 1,1 Phase 1: 2,1,1 and Phase 2: 1, 0, 0 Phase 1: 2, 1, 1 and Phase 2: 1, 2, 1

Answer 1

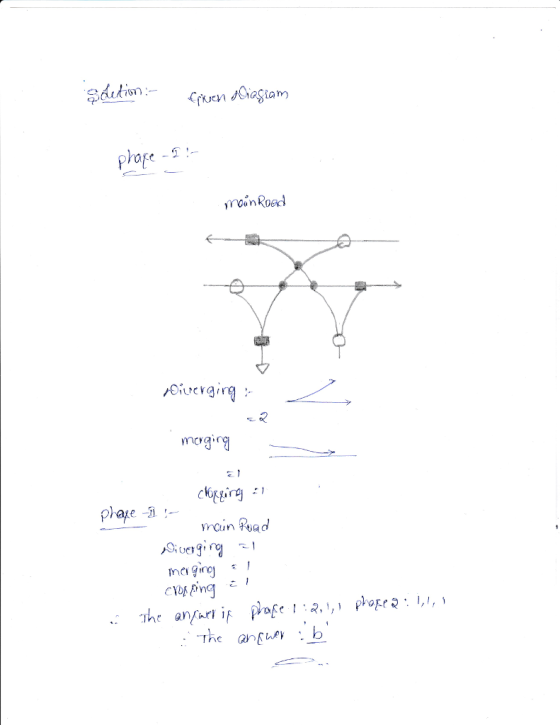

İST prar ase - mo'nRosl mogirg cerg The angueb
