Homework Answers
Add Answer to:

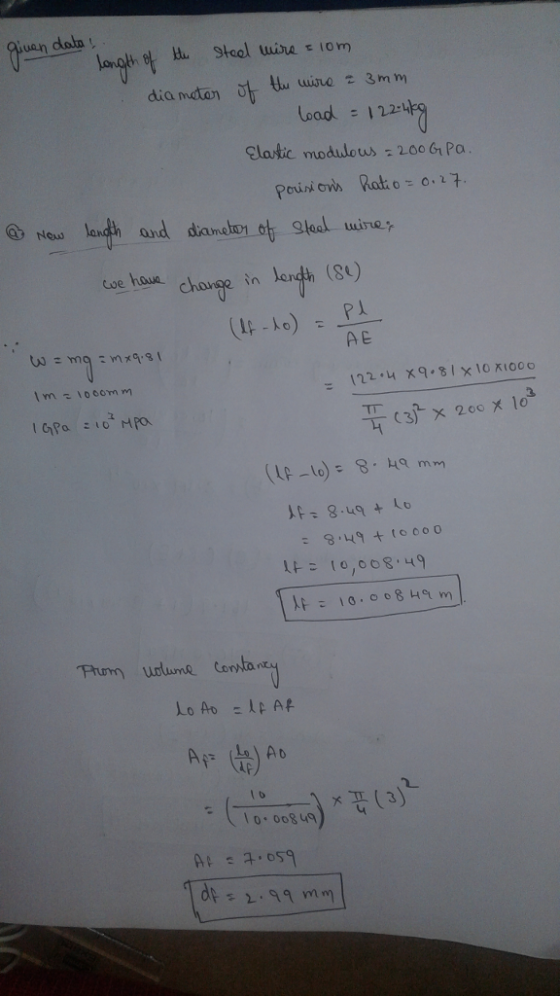

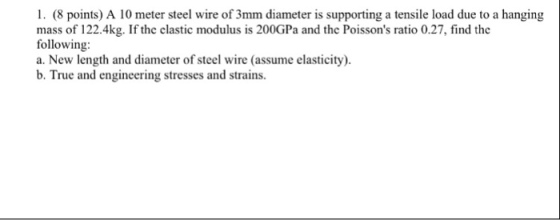

1. (8 points) A 10 meter steel wire of 3mm diameter is supporting a tensile load...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
please be very 100% sure before doing. thank you (1) (25 points) Load-elongation dataset were obtained...
please be very 100% sure
before doing. thank you
(1) (25 points) Load-elongation dataset were obtained from a tensile test of high-strength steel as shown in the table. The test specimen had a diameter of 0.505 in. and a gage length of 2.00 in. The Poisson's ratio of high-strength steel is found to be 0.33 At fracture, the elongation between the gage marks was 0.12 in and the minimum diameter was 0.42 in 1) Plot the engineering stress-strain curve using...
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length...
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length of 50 mm wa. tested to fracture. The stress-strain curve from the tension test is shown below. Labeling your points and showing the necessary steps, along with the corresponding calculations, find the following magnitudes: (a) Modulus of Elasticity, E = (b) Ultimate Strength = (e) Yield stress (0.2% offset method), (d) If the shear modulus of elasticity of the material is 28 GPa, determine...
A helicopter is paying out a spool of 1/8" diameter wire that is supporting a probe...
A helicopter is paying out a spool of 1/8" diameter wire that is supporting a probe that has a weight of 100 lb. The wire is made from steel (E = 30E6 psi, yield strength = 30,000 psi, specific weight 0.29 lb/in'). a) Ignoring the weight of the wire, determine the factor of safety against a yield failure due to 3. the 100 lb load. Determine the length of wire (in feet) that can be deployed (ignore any stretching) before...
A large mirror is hung from a nail. The supporting steel wire has a diameter of...
A large mirror is hung from a nail. The supporting steel wire has a diameter of 0.20 mm and an unstretched length of 1.80 m. The distance between the points of support at the top of the mirror's frame is 1.30 m. The mass of the mirror is 19.0 kg. What is the distance between the nail and the top of the frame when the mirror is hung?
Draw a schematic stress-strain diagram for steel. Make sure you mark all the important points and regions on it
1. Draw a schematic stress-strain diagram for steel. Make sure you mark all the important points and regions on it. Provide a one-two sentence explanation for each point and region along the diagram. 2. A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa (30 x 10* psi) and an original diameter of 10.2 mm (0.40 In.) will experience only elastic deformation when a tensile load of 8900 N (2000 Ibe) is applied. Compute the maximum length...
A large mirror is hung from a nail. The supporting steel wire has a diameter of 0.20 mm and an un...
A large mirror is hung from a nail. The supporting steel wire has a diameter of 0.20 mm and an unstretched length of 1.60 m. The distance between the points of support at the top of the mirror's frame is 1.50 m. The mass of the mirror is 22.0 kg. What is the distance between the nail and the top of the frame when the mirror is hung?
i only need help with Q3 CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar...
i only need help with Q3
CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar with a gauge length of 200 mm was subjected to tension to fracture according to ASTM E-8 method. The load and deformation data collected are shown in Table 1. Create a spreadsheet to complete the following. Table 1. Load and displacement data for a 32-mm rebar sample subjected to an increasing tensile load a. Create a plot of stress-strain. Label the axes and show...
Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel...
Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel rod within a machine assembly is subjected to a combination of tensile loading of 190 N and thermal loading which imposes a longitudinal force of 244 N. The total loading results in an even distribution of forces on the body of the rod causing it to change its dimensions by increasing 0.45 mm in length at both ends and decreasing by 0.0135 mm at...
Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel r...
Due to the operational conditions and temperature gradient, a 95 mm diameter, 1.75 m long steel rod within a machine assembly is subjected to a combination of tensile loading of 190 N and thermal loading which imposes a longitudinal force of 244 N. The total loading results in an even distribution of forces on the body of the rod causing it to change its dimensions by increasing 0.45 mm in length at both ends and decreasing by 0.0135 mm at...
1. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length increases to 2.01 m. What is the Poisson's Ratio of this material? 2. A tensile force of 100 kN is applied on a 0.02 m diameter 2 m length rod. After applying the load, the diameter of the rod decreases to 0.01998 m and the length...
please be very 100% sure
before doing. thank you
(1) (25 points) Load-elongation dataset were obtained from a tensile test of high-strength steel as shown in the table. The test specimen had a diameter of 0.505 in. and a gage length of 2.00 in. The Poisson's ratio of high-strength steel is found to be 0.33 At fracture, the elongation between the gage marks was 0.12 in and the minimum diameter was 0.42 in 1) Plot the engineering stress-strain curve using...
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length of 50 mm wa. tested to fracture. The stress-strain curve from the tension test is shown below. Labeling your points and showing the necessary steps, along with the corresponding calculations, find the following magnitudes: (a) Modulus of Elasticity, E = (b) Ultimate Strength = (e) Yield stress (0.2% offset method), (d) If the shear modulus of elasticity of the material is 28 GPa, determine...
A helicopter is paying out a spool of 1/8" diameter wire that is supporting a probe that has a weight of 100 lb. The wire is made from steel (E = 30E6 psi, yield strength = 30,000 psi, specific weight 0.29 lb/in'). a) Ignoring the weight of the wire, determine the factor of safety against a yield failure due to 3. the 100 lb load. Determine the length of wire (in feet) that can be deployed (ignore any stretching) before...
i only need help with Q3
CEE 216 Civil Engineering Materials Steel 1. A 32-mm rebar with a gauge length of 200 mm was subjected to tension to fracture according to ASTM E-8 method. The load and deformation data collected are shown in Table 1. Create a spreadsheet to complete the following. Table 1. Load and displacement data for a 32-mm rebar sample subjected to an increasing tensile load a. Create a plot of stress-strain. Label the axes and show...
