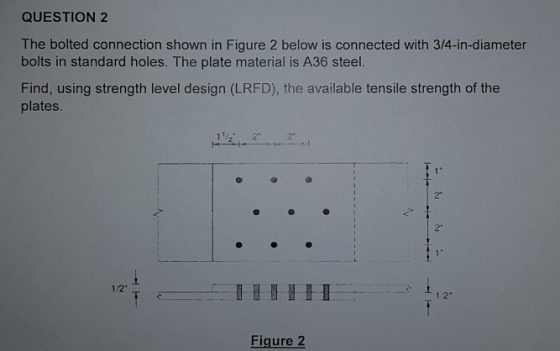

QUESTION 2 The bolted connection shown in Figure 2 below is connected with 3/4-in-diameter bolts in standard holes. The plate

can someone help me with this structural design II QUESTION

0 0
Add a comment Improve this question Transcribed image text
Answer #1

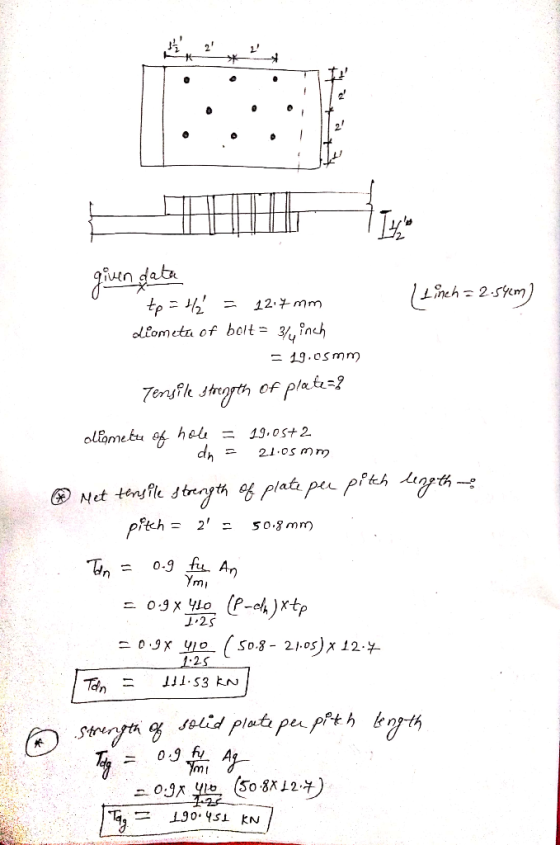

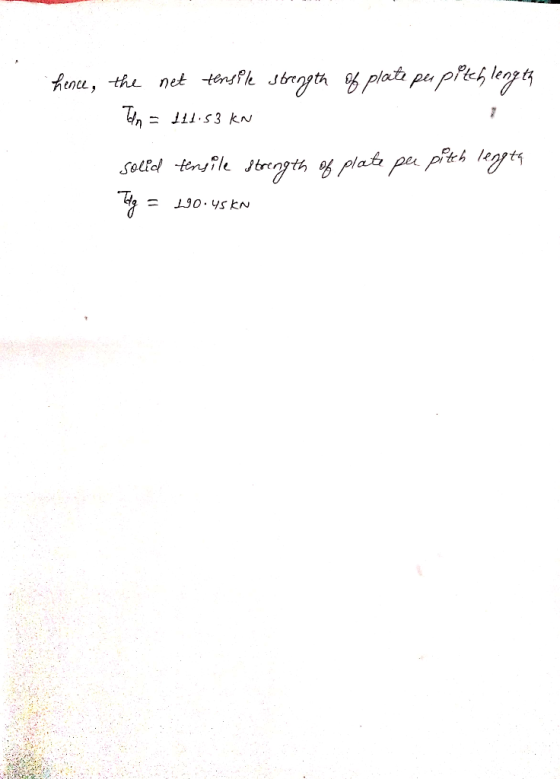

2 Lt neh = 2.55em) given data tp = 42 = 12.7 mm diometu of bolt = 3/4 inch = 19.05mm Tensile strength of plate=? oliometu ofLence, the net tersfle strength % plate per pitch length Thn = 111.83 kN solid tensile strength of plate pe piateh length Tag
