Given,
The wavelength,
= 3 m
The distance separated, d = 10 m
For the first minima,
The path difference = one half of the wavelength
(5 + x) - (5 - x) =
/ 2
2 x = 3/2
x = 3/4
= 0.75 m
Answer: A) 0.75 m

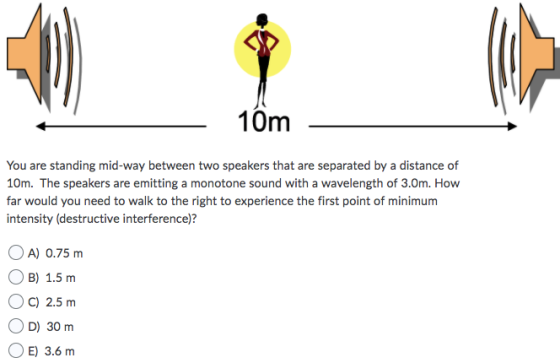

1ộm You are standing mid-way between two speakers that are separated by a distance of 10m....
This experiment requires two speakers that can be separated by some distance (try 1-2 meters). Try playing a single frequency using a tone generator and walk side to side in front of the speakers. Can you hear where there is constructive and destructive interference? Can you predict where the sound will get louder or quieter? What changes when you change the frequency?
Question 5 Two speakers are placed 5m apart, are both forward facing, and emitting sound in phase, with a frequency of 1000 Hz. A person is standing in front of the speakers, a distance of 20 m from the mid point between the speakers. If the person walks parallel to the speakers (sidewards), how far do they need to walk before they hear a maximum, after walking through a minimum? What angle does this make relative to the perpendicular of...
Two sources 51 and 52 that emit sound waves in phase are separated by a distance d 2.00 m. A detector P can moved along a line that is perpendicular to the line joining the speakers and passes through 51. If the wavelength is 3.00 m, what is the smallest distance between S, and P that will result in destructive interference at P? S1 and 52 are separated by d, POINT P IS LOCATED ON A LINE PERPENDICU;AR TO D,...
You are standing on one side of the street, and you hear sound coming from two different speakers. One speaker is 16m down the street on the same side of you. The other speaker is directly across the street from the first speaker. The street is 12m wide. Both speakers are broadcasting sound at 85Hz. (Assume the speed of sound is 340m/s). Write down the equations for constructive and destructive interference. What variables are you going to need to solve...
Two speakers, which are separated by a distance d,
produce sound waves with the same amplitude, phase and frequency.
The frequency of the sound is 570 Hz. You stand a distance of 3.50
m directly in front of the left speaker, on the dashed line shown
in the diagram. Assume the speed of sound to be 340 m/s. What is
the smallest possible value of d so that you hear no sound
because of destructive interference?
Questions 1 through 3 pertain to the situation described belou: Two speakers are set 10.0m apart, facing each other. A girl walks straightly to the other. The sound signals coming out the two sources with zero initial phase difference and frequency f facing each other. A girl walks from one speaker speakers are coherent f = 115 Hz. The speed of sound in the air is v 345 m/s. (1) How far must she walk to reach the first constructive...
The lowest two resonant (standing wave) frequencies possible for a particular closed tube are 200 Hz apart. What is the frequency of the 1 st harmonic for this tube when both sides are opened? 200 Hz 250 Hz 300 Hz 350 Hz 400 Hz numbers 20-21 A 1.2 m closed tube resonates at the 5th harmonic. What is the wavelength? 0.84 m 0.96 m 1.08 m 1.20 m 1.32 m Which of the following distances from the open end will...
You are standing a distance d
(2m) directly in front of one of two identical speakers, being
driven by the same signal generator, that are a distance h (5m)
apart. You walk in the positive direction starting at y=0 m, along
a line parallel to the line joining the two speakers. The speed of
sound is 340 m/s and the frequency is 170 HZ. As you walk, how many
times and where will you hear a maximum sound?
PROBLEM You...
I am completing a study guide, and was able to complete the
first 2 pages. Any help on these questions?
You are driving south on a road at a speed of 21.3 m/s and you hear a siren from a police car at a frequency of 915 Hz, as the police car approaches you while driving north. If the police car is going at a speed of 32.4 m/s, and the speed of sound is 343 m/s, what frequency would...
I am completing a study guide for the next section of class
because I am trying to get ahead. Any suggestions?
A wave whose displacement velocity is either in the same direction or opposite direction as the wave velocity describes which type of a wave? a. Transverse wave b. Mechanical wave c. Longitudinal wave d. Electromagnetic wave Which of the following are always one wavelength apart and are drawn as parallel lines? Plane waves b. Wave fronts c. Wave phase...
