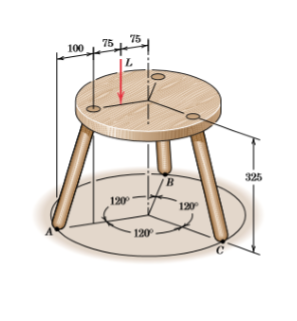

A force of 2kn is applied to the stool in the vertical direction. Find the compression force on each foot of the stool. The weights of the feet are negligible according to the force applied. The measurements given are in millimeters.
Can u write clearly and writeable please.
